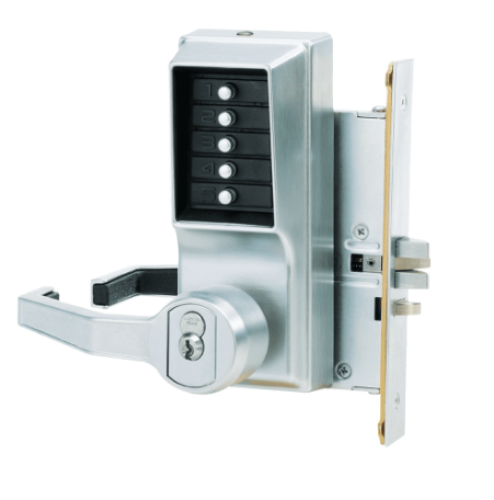

Dormakaba Simplex LR8146B-26D Mortise Lock - LHR - Best IC - Satin Chrome

Dormakaba Simplex LR8146B Mortise Type Pushbutton Lock with Key override (Best)

for Left Hand Reverse Swing Doors (LHR)[**(Help Me)

**](https://www.americanlocksets.com/optionsjs/ajaxoptions.php?productsid=6713&optionsid=10)

Single access code:one easy to manage code for all users Lock is easily programmed via keypad without removing lock from the door

Key Override:Small format IC interchangeable coreBest and Compatibles(Best, Arrow & Falcon Small Format IC Cores)

Passage option:Allows access without using the lock entry code Feature activated from the inside with a thumbturn or key included with all passage feature models

Lockout option:Disables the lock from the inside so that the entry codes can not be used to gain access. Access is permitted using the key override only

**

**

Features Include:

Heavy-duty mortise lock housing with cast front housing; unified trim plate;and fixed ADA compliant levers

Vandal resistant, solid metal pushbuttons

Factory-handed; not field reversible

Standard Finishes: Satin Chrome 26D (626), Antique Brass 05 (609)

Optional Finishes: Bright Brass 03 (605), Bright Chrome 026 (625)

Locking Device: 3/4" (19 mm) two-piece anti-friction latch (with Deadbolt see model 8148)

Minimum Stile Recommended: 5" (127 mm) Door Thickness: 1-3/4" (44) to 2-1/4" (57 mm)Highly weather resistant

Fire Rating: 3-hour UL/ULC fire rating forAlabeled doors

Certification and Standards: Americans with Disabilities Act (ADA)

3-year warranty

Model: Dormakaba, Ilco, Access, Simplex, LR8146B26D, LR8146BUS26D, LR8146B-26D-41, 626,Satin Chrome
