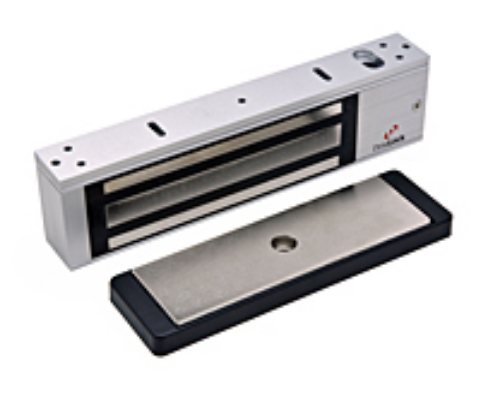

Dynalock 2011-390-HSM Electromagnetic Lock W/ High Security Monitor For Single Outswinging Doors (Locknetics 390+)

Dynalock 2011-390-HSM Electromagnetic Lock W/ High Security Monitor For Single Outswinging Doors - Aluminum -*- *Exact Retro-fit For Locknetics 390+

High Security Monitor(HSM)  Includes the following:

Door Status Switch - Signals door closed or ajar. Dynastat Force Sensor - Indicates efficient magnetic bond

Standard Features

• For Single Outswinging Door: Single coil. Mounts to the underside of the frame header. 1200 Lbs. Holding Force.

• Size: 1-1/2"D x 2-3/4"H x 10-1/2" L

• Multi-voltage field selectable 12/24 VAC/VDC Current Draw: 384 mA @ 12VDC Single / 768 mA Double 217 mA @ 24VDC Single / 434 mA Double

• Finish: Standard-Satin Aluminum

• Medium to High Security

• Adjustable mounting Base

• Internal wiring compartment includes built-in circuit board attached to access cover to provide a convenient, plug in, concealed area for wiring connections.

• Low power consumption conserves energy, reduces operation cost, and extends battery backup time.

• A totally plated coil and armature provides protection against corrosion.

• A narrow backset of 1-1/2" may mean the elimination of other mounting brackets or filler plates.

• No residual magnetism - the door releases without delay when lock is de-energized.

• Multiple sensor and monitor options increases flexibility, security and compatibility with system equipment.

• Built-in spike suppression protects other solid state components within the system from damage when the lock is de-energized.

• Lifetime Warranty - American Made in the USA by DynaLock, with over 20 years experience in the manufacture of electromagnetic locks.
