Dynalock 2268-10-DYN Classic Low Profile Electromagnetic Lock W/ Dynastat Force Sensor For Single Outswinging Doors

Dynalock 2268-10-DYN Classic Low Profile Electromagnetic Lock W/*Dynastat Force Sensor* For Single Outswinging Doors - Aluminum

Single Outswinging Door:Single coil. Mounts to the underside of the frame header. 1200 Lbs. Holding Force

Dynastat Force Sensor- Indicates efficient magnetic bond. SPDT contacts.

Description:

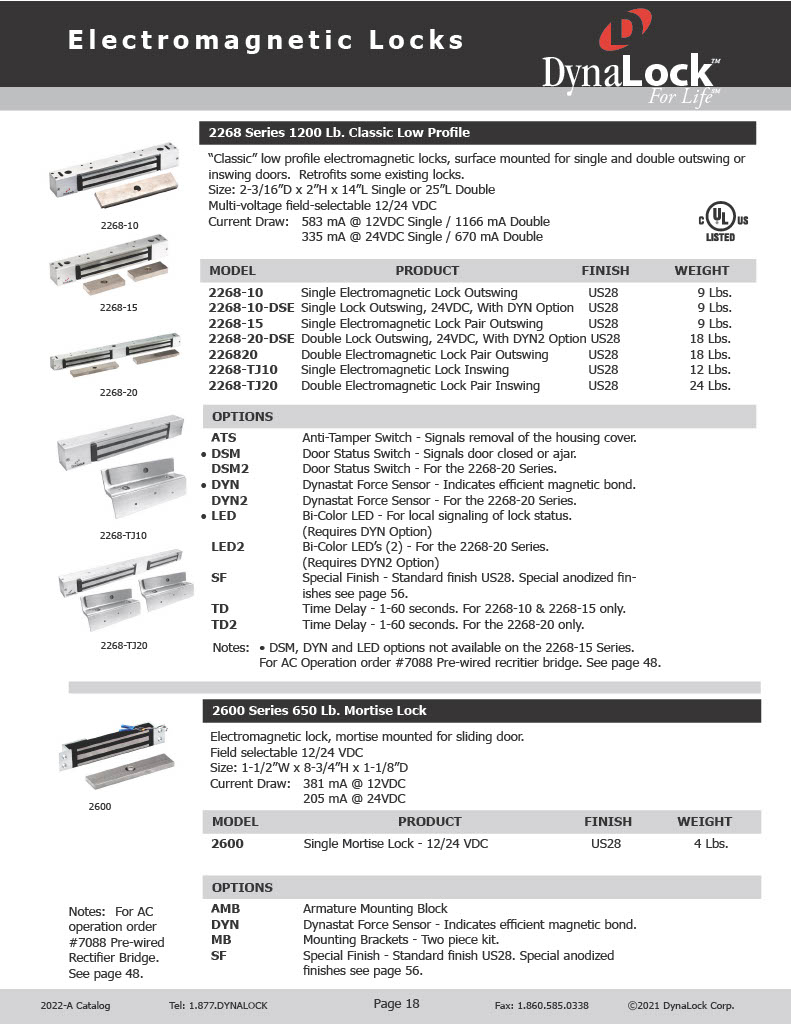

The 2268 “Classic" low profile electromagnetic locks, surface mounted for single and double outswing or inswing doors. Retrofits some existing locks.

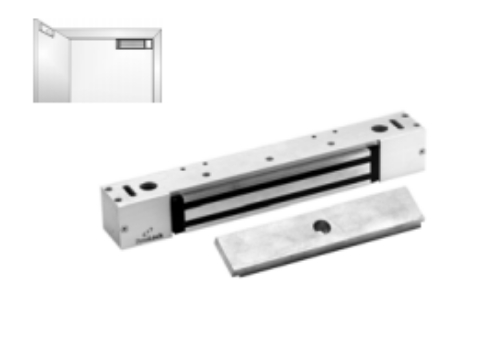

The coil and housing assembly mounts rigidly to the door frame while the armature mounts to the door in a manner that allows it to pivot slightly to compensate for door irregularities. When the door is closed and the lock is energized the armature is magnetically bonded to the lock face, thus securing the door without utilizing any moving parts.

Standard Features

• Size: 2-3/16"D x 2"H x 14"L

• The 2268 is field selectable for 12VDC or 24VDC. Current Draw: 680 mA @ 12VDC Single / 1.36 A Double 350 mA @ 24VDC Single / 700 mA Double

• Non-Handed - includes a convenient area for wiring connections on each end of the lock.

• Adjustable mounting base reduces installation time and insures proper alignment.

• Low power consumption conserves energy, reduces operation cost, and extends battery backup time.

• A totally plated coil and armature provides protection against corrosion.

• No residual magnetism - the lock releases without delay when de-energized.

• Low profile provides maximum clearance for underheight door openings. The lowest profile of ANY full size electromagnetic lock.

• Built-in spike suppression protects other solid state components within the system from damage when the lock is de-energized.

• Finish: US28 Satin Aluminum

• Lifetime Warranty
