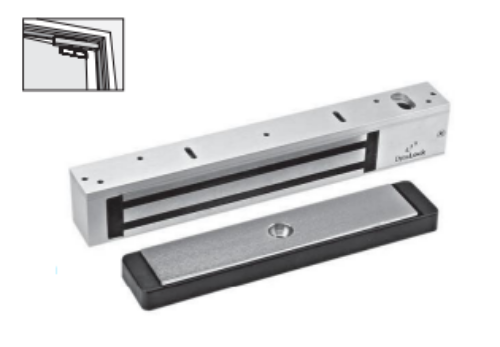

Dynalock 2280-DSM SlimLine Electromagnetic Lock W/ Door Status Switch For Single Outswinging Doors

Dynalock*2280-DSMSlimLineElectromagnetic Lock W/ Door Status Switch  For Single Outswinging Doors - Aluminum*

Door Status Switch*(DSM)* - Signals door closed or ajar. SPDT contacts

Single Outswinging Door:Single coil. Mounts to the underside of the frame header. 1200 Lbs. Holding Force.

Description & Features:

Typical applications for the 2280 include commercial, industrial and institutional openings where maximum security and durability is required. With a low 2-1/16" profile, the 2280 is ideal for opening Heights of 7' or less, to facilitate code compliance on designated egress doors

 Lock Size: 1-1/2"D x 2-1/16"H x 12-3/4"L Armature Size: 5/8"D x 1-3/4"H x 8-5/8"L Input Voltage:  12 or 24 VDC/VAC (Field Selectable), Current Draw: 0.68A @ 12V Each Coil, 0.35A @ 24V Each Coil Field Selectable Voltage - 12 or 24 VDC/VAC Seamless, One Piece Housing - Provides superior moisture and tamper resistance. Adjustable Baseplate reduces installation time and insures proper alignment. Armature Housing - Dampens noise and facilitates installation. Low Profile - Provides maximum headroom clearance. Enhanced Top Jamb Mount - Aesthetically pleasing full length armature bracket, with locking ribs to prevent slippage, and a lock mounting bracket with concealed wire chase. Built-In Spike Suppression protects other solid state components within the system from electrical damage. Finish US28 Satin Aluminum Lifetime Warranty
