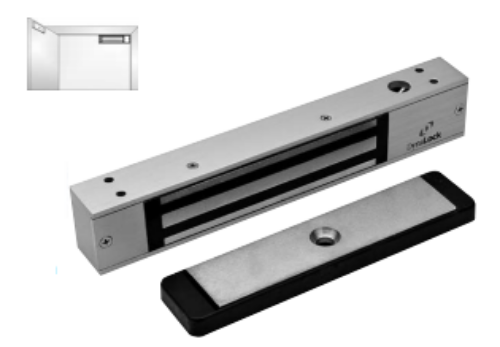

Dynalock 2511-DSM Mini-Mag Electromagnetic Lock W/ Door Status Switch For Single Outswinging Doors

Dynalock 2511-DSM Mini-Mag  Electromagnetic Lock W/ *Door Status Switch *For Single Outswinging Doors - Aluminum

Door Status Switch (DSM)- Signals door closed or ajar. SPDT contacts

Single Outswinging Door:Single coil. Mounts to the underside of the frame header.

Description & Features: Size: 1-1/4"D x 1-3/4"H x 10-1/2"L Multi-voltage field selectable: 12/24 VAC/VDC, Current Draw: 500 mA @ 12V Single / 1 Amp Double, 250 mA @ 24V Single / 0.50 Amps Double Compact “Mini Mag" Lock Design Ideal for Low Security Applications Holding Force: 650 lbs. holding force provides for effective traffic control. Examples include interior ffice doors, clean room interlocks, tool cribs, and x-ray areas. 4 Operating Voltages - All models (except the 2585) offer 12 or 24 VDC or VAC for installation flexibility and to reduce stock. Low Power Consumption conserves energy, reduces operating cost, and extends battery backup time. A Totally Plated Coil and armature provides protection against corrosion. No Residual Magnetism - The lock releases without delay when de-energized. Narrow Backset - A thin lock section (1-1/4") may mean the elimination of additional mounting brackets Built-In Spike Suppression protects other solid state components within the system from damage when the lock is de-energized. Finish: US28 Satin Aluminum Lifetime Warranty
