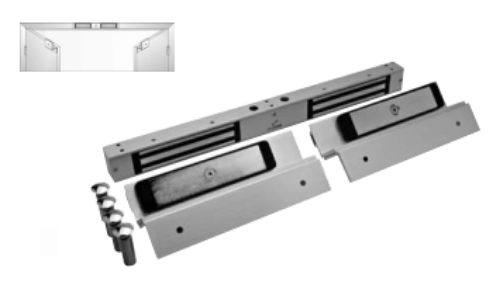

Dynalock 2522-TJ2 Mini-Mag Electromagnetic Lock For Double Inswinging Door - Aluminum

Dynalock 2522-TJ2 Mini-Mag Electromagnetic Lock For*Double Inswinging Door*- Aluminum

Double Inswinging Door: Double coil. Mounts to the face of the frame header.

Description & Features: Lock Size: 1-1/4"D x 1-3/4"H x 21"L Multi-voltage field selectable: 12/24 VAC/VDC, Current Draw: 500 mA @ 12V Single / 1 Amp Double, 250 mA @ 24V Single / 0.50 Amps Double Compact “Mini Mag" Lock Design Ideal for Low Security Applications Holding Force: 650 lbs. holding force provides for effective traffic control. Examples include interior ffice doors, clean room interlocks, tool cribs, and x-ray areas. 4 Operating Voltages - All models (except the 2585) offer 12 or 24 VDC or VAC for installation flexibility and to reduce stock. Low Power Consumption conserves energy, reduces operating cost, and extends battery backup time. A Totally Plated Coil and armature provides protection against corrosion. No Residual Magnetism - The lock releases without delay when de-energized. Narrow Backset - A thin lock section (1-1/4") may mean the elimination of additional mounting brackets Built-In Spike Suppression protects other solid state components within the system from damage when the lock is de-energized. Finish: US28 Satin Aluminum Lifetime Warranty
