2585 Series - Electromagnetic Locks

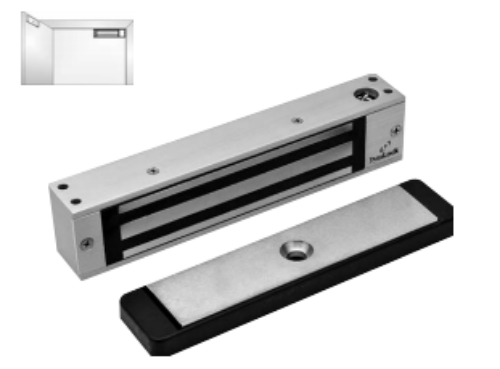

Dynalock 2585-DSM Bantam Electromagnetic Lock W/ Door Status Switch, For Single Outswinging Doors

Dynalock 2585-DSM Bantam Electromagnetic Lock W/ Door Status Switch, For Single Outswinging Doors

Product Details

Dynalock 2585-DSM Bantam Electromagnetic Lock W/*Door Status Switch,* For Single Outswinging Doors - Aluminum

Door Status Switch (DSM)- Signals door closed or ajar. SPDT contacts

Single Outswinging Door:Single coil. Mounts to the underside of the frame header. Ultra-compact 8-1/2" long.

Description & Features:

Size: 1-1/4"D x 1-3/4"H x 8-1/2"L Field Selectable: 12/24 VDC. Current Draw: 500 mA @ 12VDC, 250 mA @ 24VDC Compact “Mini Mag" Lock Design Ideal for Low Security Applications Holding Force: 650 lbs. holding force provides for effective traffic control. Examples include interior ffice doors, clean room interlocks, tool cribs, and x-ray areas. 4 Operating Voltages - All models (except the 2585) offer 12 or 24 VDC or VAC for installation flexibility and to reduce stock. Low Power Consumption conserves energy, reduces operating cost, and extends battery backup time. A Totally Plated Coil and armature provides protection against corrosion. No Residual Magnetism - The lock releases without delay when de-energized. Narrow Backset - A thin lock section (1-1/4") may mean the elimination of additional mounting brackets Built-In Spike Suppression protects other solid state components within the system from damage when the lock is de-energized. Finish: US28 Satin Aluminum Lifetime Warranty

Dynalock 2585-DSM Bantam Electromagnetic Lock W/ Door Status Switch, For Single Outswinging Doors

Name: Dynalock 2585-DSM Bantam Electromagnetic Lock W/ Door Status Switch, For Single Outswinging Doors
SKU: 2585-DSM
Price: 392.54 USD
Availability: InStock

SKU: 2585-DSM

In Stock

Chat

$392.54

$519.00

You saved $126.46

About this item

Each 2500 Series Electromagnetic Lock is comprised of 3 basic components: a lock housing, an electromagnetic coil, and an armature.

The coil and housing assembly mounts rigidly to the door frame while the armature mounts to the door in a manner that allows it to pivot slightly to compensate for door irregularities. When the door is closed and the lock is energized the armature is magnetically bonded to the lock face, thus securing the door without utilizing any moving parts.

The 2585 Series has a shorter housing. At only 8-1/2" long, the 2585 “Bantam" lock is perfect for installations where space is limited. All locks are designed for ease of use, and built in the USA to last a lifetime.
