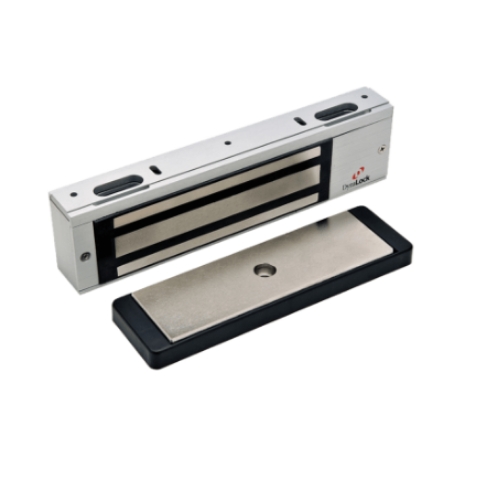

Dynalock 3000-DSM Electromagnetic Lock W/ Door Status Switch For Single Outswinging Doors, 1500 Lb.

Dynalock *3000-DSM Electromagnetic Lock W/Door Status SwitchFor Single Outswinging Doors, 1500 Lb. Holding Force - Aluminum*

Single Outswinging Door:Single coil. Mounts to the underside of the frame header. 1500 Lbs. Holding Force.

Door Status Switch (DSM)- Signals door closed or ajar. SPDT contacts

• Lock Size: 1-1/2"D x 2-3/4"H x 11"L

• Armature Size: 1/2"D x 2-3/8"H x 3-5/8

Description:

All Locks are designed for ease of installation with DynaLock’s exclusive FasTrak mounting system, field selectable voltage, and convenient wiring compartments.

The coil and housing assembly mounts rigidly to the door frame while the armature mounts to the door in a manner that allows it to pivot slightly to compensate for door irregularities. When the door is closed and the lock is energized the armature is magnetically bonded to the lock face, thus securing the door without utilizing any moving parts.

Standard Features:

• Multi-voltage field selectable 12/24 VAC/VDC, Current Draw: 384 mA @ 12VDC Single / 768 mA Double, 217 mA @ 24VDC Single / 434 mA Double

-  One Piece Housing made from high strength aluminum. A seamless housing means maximum resistance to weather and tampering.

• FasTrak Mounting: Speed up installation by mounting the FasTrak channel to the frame first. Lock can then be attached and removed with ease.

• Universal Design: Lock handing can easily be reversed in the field, allowing placement of the coil adjacent to the vertical jamb where it will exert the most efficient force.

• Low power consumption conserves energy, reduces operation cost, and extends battery backup time.

• A totally plated coil and armature provides protection against corrosion.

• A narrow backset of 1-1/2" may mean the elimination of other mounting brackets or filler plates.

• No residual magnetism - the door releases without delay when lock is de-energized.

• Built-in spike suppression protects other solid state components within the system from damage when the lock is de-energized.-

• Lifetime Warranty - American Made in the USA by DynaLock, with over 20 years experience in the manufacture of electromagnetic locks.

• Finish: US28 Satin Aluminum
