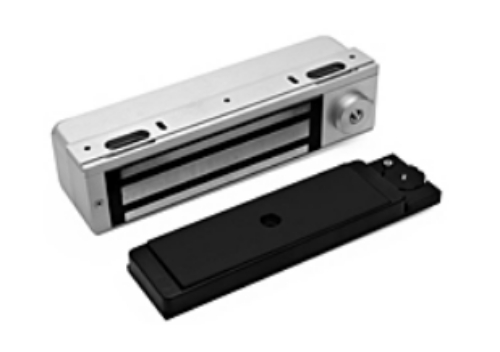

Dynalock 3101C-DSM-DYN Delay Egress Electromagnetic Lock W/ Door Status Switch & Dynastat Force Sensor

Dynalock 3101C-DSM-DYN Delay Egress Electromagnetic Lock W/ Door Status Switch &*Dynastat Force Sensor,* For Single Outswinging Doors - Aluminum

Door Status Switch (DSM) - Signals door closed or ajar

Dynastat Force Sensor (DYN)- Indicates efficient magnetic bond.

Size: 3"D x 2-3/4"H x 11"L

Description:

Delay egress electromagnetic lock Is surface mounted for outswing single doors. Non-handed.

In a typical installation, the door is normally closed and latched by the existing mechanical door hardware and magnetically secured by the 3101C Lock. Attempting to exit by applying 15 Lbs. or less pressure to the door will cause the door to become unlatched, and activate the 3101C delay egress timer.

 The audible and red LED will pulsate for 15 seconds (30 seconds field selectable). After the time delay has elapsed, the lock will release and the audible will sound continuously with a green LED until the door is shut and the lock is reset. Reset and/or bypass are accomplished with a built-in key switch or remote signal.

Standard Features:

 Multi-voltage field selectable 12/24 VAC/VDC Current Draw: 460 mA @ 12VDC / 260 mA @ 24VDC Holding Force: 1,500 Pounds Completely Self Contained Unique Sensor Unaffected by Minor Door Misalignment Lifetime Warranty Finish: US28 Satin Aluminum
