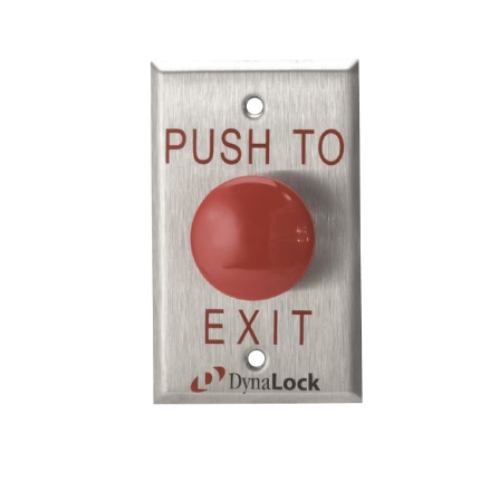

Dynalock 6290-LED Single Gang "PUSH TO EXIT" Palm Switch - Bi-Color LED

Dynalock 6290-LED Single Gang "PUSH TO EXIT" Palm Switch - Bi-Color LED - Stainless Steel

Description & Features:

• LED - Bi-Color LED - Red/Green, 12/24VDC

• 1-5/8" Diameter Red Plastic Time Delay Mushroom Button - NFPA 101

• FORM Z Contacts (SPDT-Double Break) with 0-60 second Pneumatic Delay, factory preset to 30 seconds.

• Contact rating: 10 Amps @ 125VAC / UL

• Terminations: 7" Color-Coded 18AWG Leads

• Faceplate: Single-Gang

• Finish: US32D Brushed Stainless Steel

• Signage: Silkscreened “PUSH TO EXIT" in Red

• Complies With Life Safety Code NFPA 101, 2003, Access Controlled Egress Doors Sec. 7.2.1.6.2
