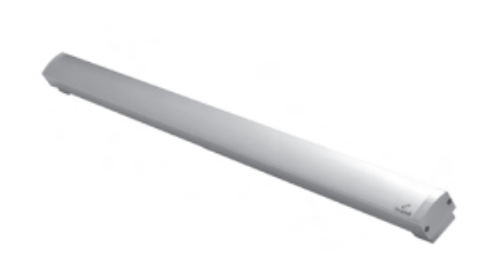

Dynalock 6451-36-US28 Exit Sensor Bar,36" - Aluminum

About this item

Dynalock 6451-36-US28 Exit Sensor Bar,36" - Aluminum

Description:

The non-latching 6451 Exit Sensor Bar offers immediate “no prior knowledge" egress by pushing on the bar at any point, with 15 Lbs. or less pressure.

A light touch is all that is required to activate one or both internal optical sensors designed to detect an exit attempt. A built-in mechanical switch is also included as a redundant back-up release.

Installation is simple. Complicated tune-in procedure and frequent call-backs for readjustment are not required

Standard Features:

Built-in redundant mechanical switch for back-up release.

No tune-in required - complicated calibration and fine tuning are unnecessary and return calls are eliminated.

Bar may be activated by anything - human touch, briefcase, cane, wheelchair, etc. will activate the 6451.

Ideal for ADA compliant installations.

Weather resistant electronics - conformal coated circuitry resists moisture damage.

All-metal construction - the entire bar, including end caps, is made of aircraft-grade aluminum, offering high resistance to abuse and vandalism.

Armored power transfer cord - furnished standard.

Dual output standard - DPDT contacts provide lock control and alarm shunting capabilities.

Built-in spike suppression - all input/output terminals are protected from line spikes.

Variable input power - operating voltage 12 to 24 VAC/VDC.

finishe: US28 satin aluminum is standard.

Entire bar is finished, including the end caps.

Unit is non-handed - suitable for LHR or RHR doors.

Specification:

Bar Length: 36" Door = 34" Overall Length

Bar Width: 2-7/16"

Bar Projection: 2-3/8"

Warranty: Lifetime

Resources

• https://www.dynalock.com/file/922-6451-series-miscellaneous.html
