Falcon W511BD, Grade 2 Entry/Office Lock, SFIC Prep Less Core

Falcon W511BD, Grade 2 Entry/Office Lock, SFIC Prep Less Core -*ANSI F109*

Deadlocking latch bolt by levers. Turn/push button locking. Pushing and turning button locks outside lever, requiring use of a key for unlocking the door until button is manually unlocked. Pushing button locks outside lever until unlocked by key or by rotating inside lever. Inside lever is always free.

Lever:HAN - HANA, ELI - Elite

Finishes:Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626

Door Thickness:1-3/8" to to 1-3/4" standard.

Backset:2-3/4" standard; 2-3/8" also available.

Handing:Locks are non-handed.

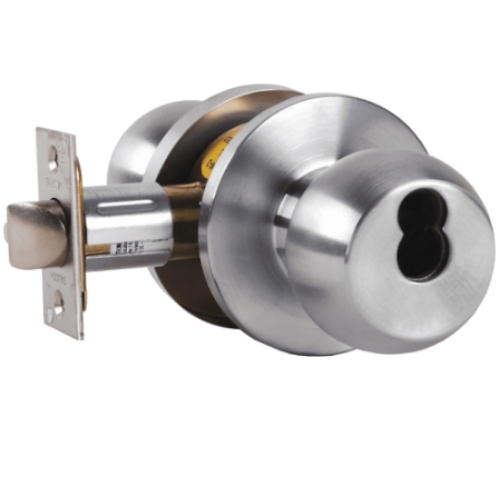

Cylinders:Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.

Keyways:G keyway standard on Falcon standard cylinders. A keyway standard on I/C core cylinders. Also available with some optional keyways. SchlageCkeyway also available on standard cylinders.

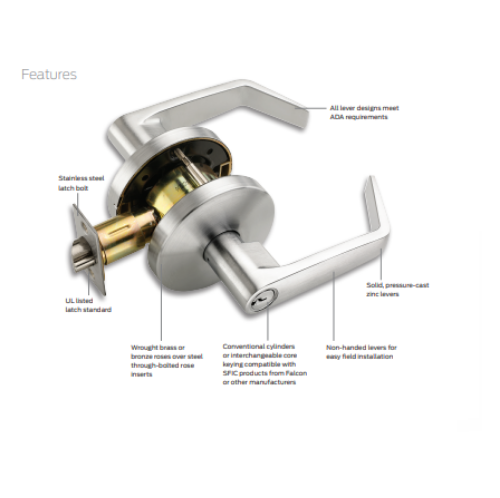

Trim:Roses are 3-5/8" diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.

Latches:1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 2-1/4" x 1" latch faces or 2-3/4" backset with 2-1/4" x 1-1/8" latch faces.

Strikes:4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.

ANSI/BHMA:Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL:3 hour A label.

MODEL:W511, W511PDHAN, W511PDHAND, W511PDHANQ, W511PDHANDAN, W511PDHANQUA, W511SD626, W511PDHANQ626, W511PDHANDAN626, W511PDHANQUA626, W511PDHAND625, W511PDHANQ625, W511PDHANDAN625, W511PDHANQUA625, W511PDHAND605, W511PDHANQ605, W511PDHANDAN605, W511PDHANQUA605, W511PDHAND606, W511PDHANQ606, W511PDHANDAN606, W511PDHANQUA606, W511PDHAND613, W511PDHANQ613, W511PDHANDAN613, W511PDHANQUA613, W511BDHAN, W511BDHAND, W511BDHANQ, W511BDHANDAN, W511BDHANQUA, 101SD626, W511BDHANQ626, W511BDHANDAN626, W511BDHANQUA626, W511BDHAND625, W511BDHANQ625, W511BDHANDAN625, W511BDHANQUA625, W511BDHAND605, W511BDHANQ605, W511BDHANDAN605, W511BDHANQUA605, W511BDHAND606, W511BDHANQ606, W511BDHANDAN606, W511BDHANQUA606, W511BDHAND613, W511BDHANQ613, W511BDHANDAN613, W511BDHANQUA613

Mechanism:Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment:Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.

Screws:Furnished with combination screws for use in wood or metal doors and frames.
