Arrow HK01 BB 32D - Grade 1 Passage Cylindrical Lock

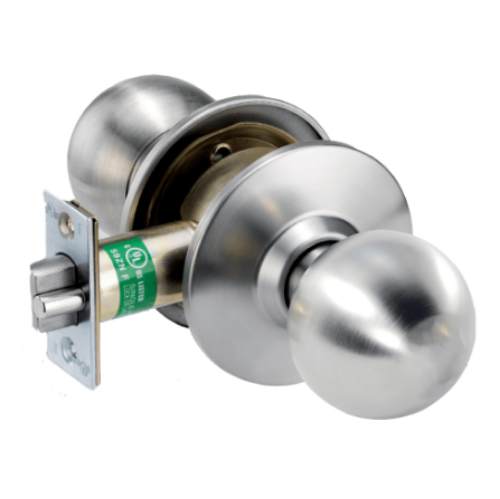

Arrow HK01 BB 32D - Grade 1 Passage Knob Set - Satin Stainless SteelPassage- ANSI F75

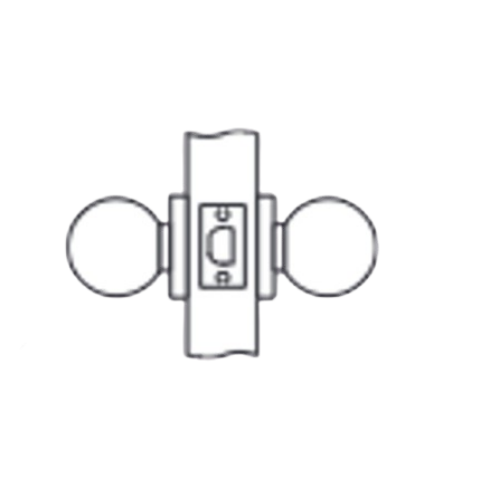

Latchbolt operated by knob/lever either side.

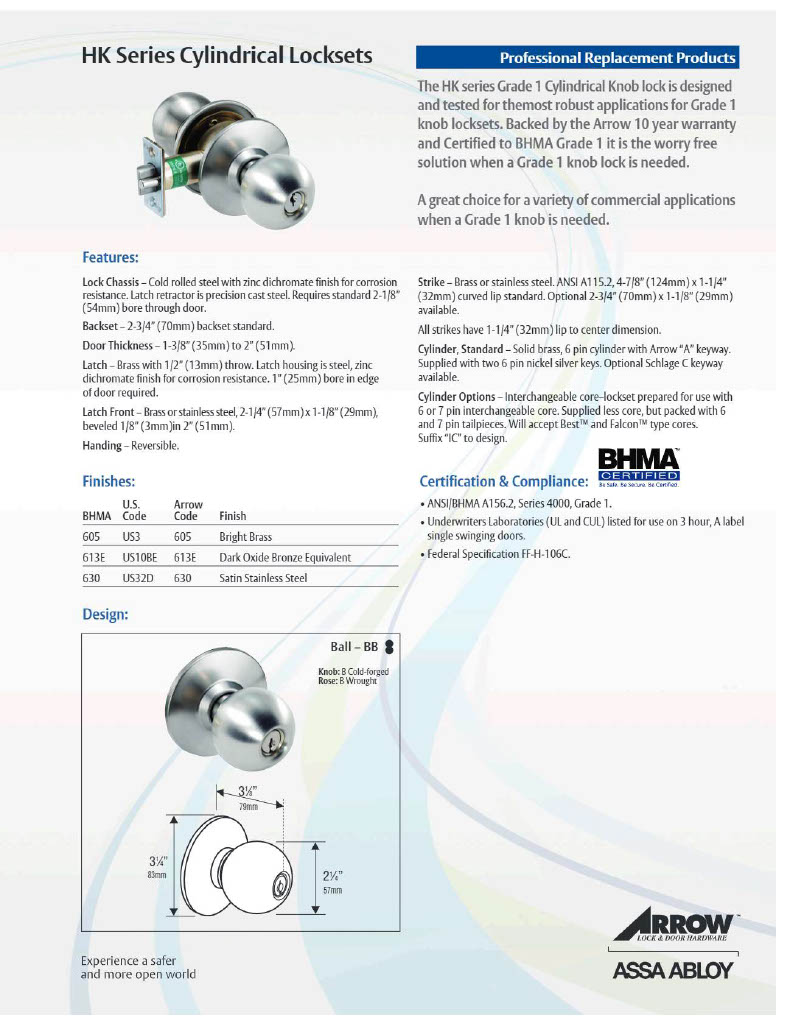

Features*Lock Chassis:* Cold rolled steel with zinc dichromate finish for corrosion resistance. Latch retractor is precision cast steel. Requires standard 2-1/8" (53.97 mm) bore through door.

Door Thickness: 1-3/8" (35 mm) to 2" (50.80 mm)

Latch: Stainless steel with 1/2" (12.7 mm) throw. Latch housing is steel, zinc dichromate finish for corrosion resistance. 1" (25.4mm) bore in edge of door required.

Latch Front: Brass or stainless steel, 2-1/4" (57.15 mm) x 1-1/8" (28.57 mm), beveled 1/8" (3.17 mm) in 2" (50.8 mm),2-3/4" (69.85 mm) Backset

Strike: Brass or stainless steel. ANSI A115.2, 4-7/8" (123.82 mm) x 1-1/4" (31.75 mm) curved lip standard with a 1-1/4" (31.75mm) lip to center dimension.

Handing: Reversible.

Finish: US32D.

CertificationANSI/BHMA A156.2, Series 4000, Grade 1Underwriters Laboratories (UL and CUL) listed for use on 3 hour, A label single swinging doors
