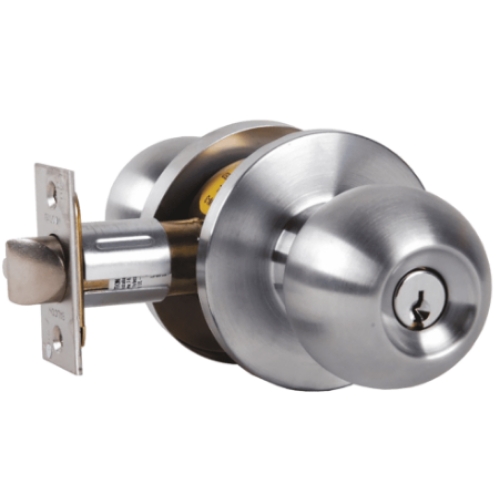

Falcon W581PD-HAN, Grade 2 Storeroom Lock, Key in Lever Cylinder, Hana Knob

Falcon W581PD, Grade 2 Storeroom Lock, Key in Lever Cylinder, Hana Knob -*ANSI F86*

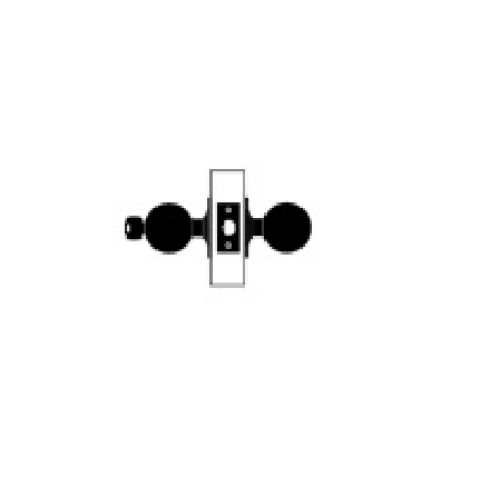

Latch bolt operated by lever/knob inside or key outside. Outside lever/knob is inoperable. Inside always free for immediate egress.

Lever:HAN - HANA, ELI - Elite

Finishes:Bright brass 605, Satin brass 606, Satin bronze 612, Oil rubbed bronze 613, Bright chrome 625, Satin chrome 626

Door Thickness:1-3/8" to to 1-3/4" standard.

Backset:2-3/4" standard; 2-3/8" also available.

Handing:Locks are non-handed.

Cylinders:Pinning in six chambers. Cylinder assemblies removable to re-key. Also available with 6- or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are stainless steel. Two nickel silver keys furnished standard.

Keyways:G keyway standard on Falcon standard cylinders. A keyway standard on I/C core cylinders. Also available with some optional keyways. Schlage C keyway also available on standard cylinders.

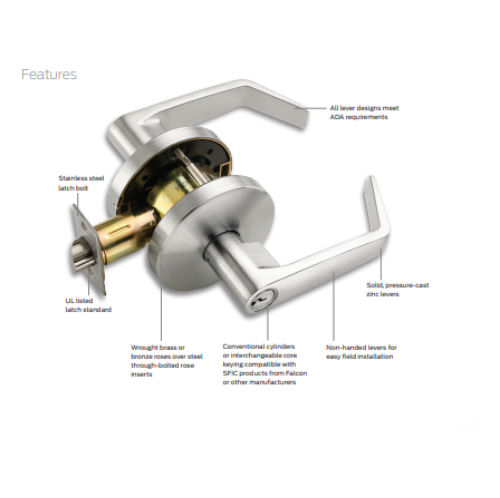

Trim:Roses are 3-5/8" diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure-cast zinc (solid levers-no-inserts) finished to match mating parts.

Latches:1/2" bolt projection made of stainless steel and UL listed for 3-hour door assemblies. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2-3/8" backset with 2-1/4" x 1" latch faces or 2-3/4" backset with 2-1/4" x 1-1/8" latch faces.

Strikes:4-7/8" x 1-1/4" ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strikes, sizes and configurations.

ANSI/BHMA:Meets ANSI/BHMA A156.2, Series 4000, Grade 2.

UL:3 hour A label.

MODEL: W581, W581PDELI, W581PDELID, W581PDELIQ, W581PDELIDAN, W581PDELIQUA, W581SD626, W581PDELIQ626, W581PDELIDAN626, W581PDELIQUA626, W581PDELID625, W581PDELIQ625, W581PDELIDAN625, W581PDELIQUA625, W581PDELID605, W581PDELIQ605, W581PDELIDAN605, W581PDELIQUA605, W581PDELID606, W581PDELIQ606, W581PDELIDAN606, W581PDELIQUA606, W581PDELID613, W581PDELIQ613, W581PDELIDAN613, W581PDELIQUA613, W581BDELI, W581BDELID, W581BDELIQ, W581BDELIDAN, W581BDELIQUA, 101SD626, W581BDELIQ626, W581BDELIDAN626, W581BDELIQUA626, W581BDELID625, W581BDELIQ625, W581BDELIDAN625, W581BDELIQUA625, W581BDELID605, W581BDELIQ605, W581BDELIDAN605, W581BDELIQUA605, W581BDELID606, W581BDELIQ606, W581BDELIDAN606, W581BDELIQUA606, W581BDELID613, W581BDELIQ613, W581BDELIDAN613, W581BDELIQUA613

Mechanism:Parts constructed of brass or cold-formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.

Attachment:Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose-mounting assembly, and two screws that screw into the chassis assembly.

Screws:Furnished with combination screws for use in wood or metal doors and frames.
