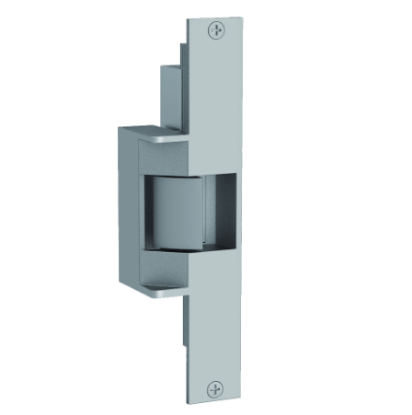

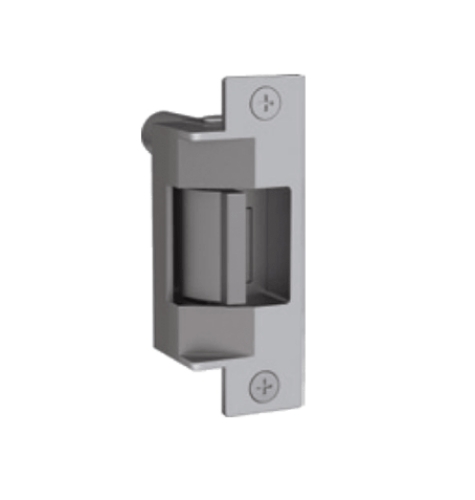

Folger Adam 732-75 Electric Strike - For use with 1/2", 5/8" or 3/4" throw latchbolts in wood applications

Folger Adam 732-75 Electric Strike - For use with 1/2", 5/8" or 3/4" throw latchbolts in wood applications

For use with 1/2", 5/8" or 3/4" throw latchbolts in wood frame applications.

 Features an offset solenoid

3/4" PK keeper standard

Standard Features:

Tamper-resistant, heavy duty construction Constructed entirely of stainless steel for strength and corrosion resistance Static strength 1,500 lbs.

Dynamic strength 70 ft-lbs. Horizontally adjustable keeper allows for door and frame misalignment 3/4" keeper depth

Non-handed Fail secure Plug-in connector

Five-year limited warranty

Note: These products will require relocation of the center line when used with mortise locks. Consult HES customer support regarding use with the Best 40 series.

Electrical (continuous duty) .29 Amps at 12 VDC .15 Amps at 24 VDC PoE friendly

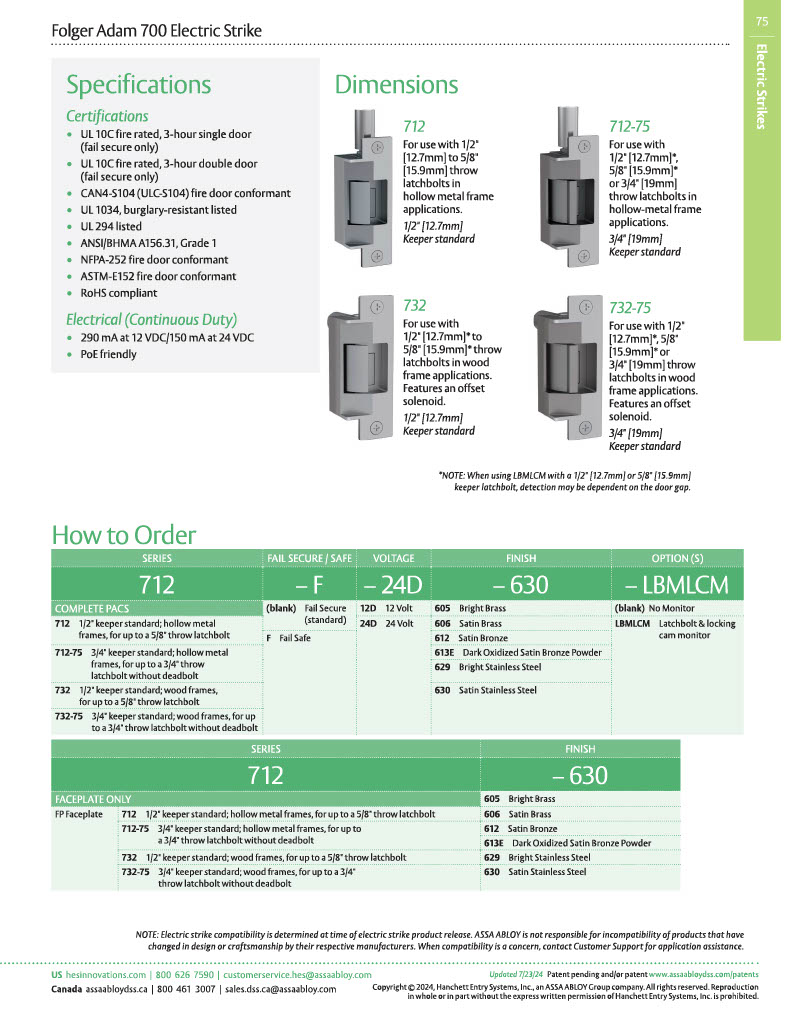

Specifications:

 UL 10C fire-rated, 3-hour single door (fail secure only) UL 10C fire-rated, 3-hour double door (fail secure only) CAN4-S104 (ULC-S104) fire door confomant UL 1034, burglary-resistant listed UL 294 (6th Edition) listed ANSI/BHMA A156.31, Grade 1 New York City accepted NFPA-252 fire door conformant ASTM-E152 fire door conformant RoHS compliant

Model: 732-75F12D630, 732-75F24D630, 732-7512D630, 732-7524D630, 732-75F12D606, 732-75F24D606, 732-7512D606, 732-7524D606, 732-75F12D612, 732-75F24D612, 732-7512D612, 732-7524D612, 732-75F12D613, 732-75F24D613, 732-7512D613, 732-7524D613, 732-75F12D605, 732-75F24D605, 732-7512D605, 732-7524D605, 732-75F12D629, 732-75F24D629, 732-7512D629, 7327524D629
