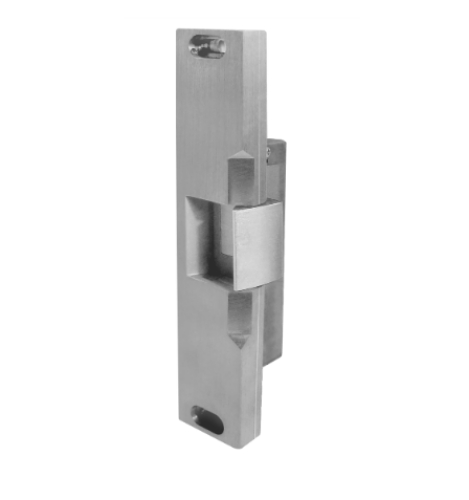

Folger Adam 310-4 Rim Panic Device Electric Strike - For up to 3/4" Pullman style latchbolts

310-4 630
1-Page1-FOLGERADAM
1-Page2-FOLGERADAM
310-4 630
1-Page1-FOLGERADAM
1-Page2-FOLGERADAM
naxt
prev

Product Details

Folger Adam 310-4 Rim Panic Device Electric Strike - For up to 3/4" Pullman style latchbolts

310-4 - For up to 3/4" Pullman style latchbolts on single doors

PK keeper standard

Standard Features:

 Integrated shim for quick customization of faceplate thickness (1/2" to 3/4").

Tamper-resistant, heavy duty construction.

Constructed entirely of stainless steel for strength and corrosion resistance.

Static strength 1,500 lbs.

Dynamic strength 70 ft-lbs.

Endurance rating 500,000 cycles Integrated ramps for better deadlatch handling.

Set screws for horizontal lockdown In-frame horizontal adjustability.

Wider faceplate (1-3/4") for greater versatility.

Non-handed

Fail secure

Plug-in connector

Five-year limited warranty

Optional Features:

 (F) Fail safe LCBMA - Latchbolt & Locking CamMonitor with Auxiliary Switch

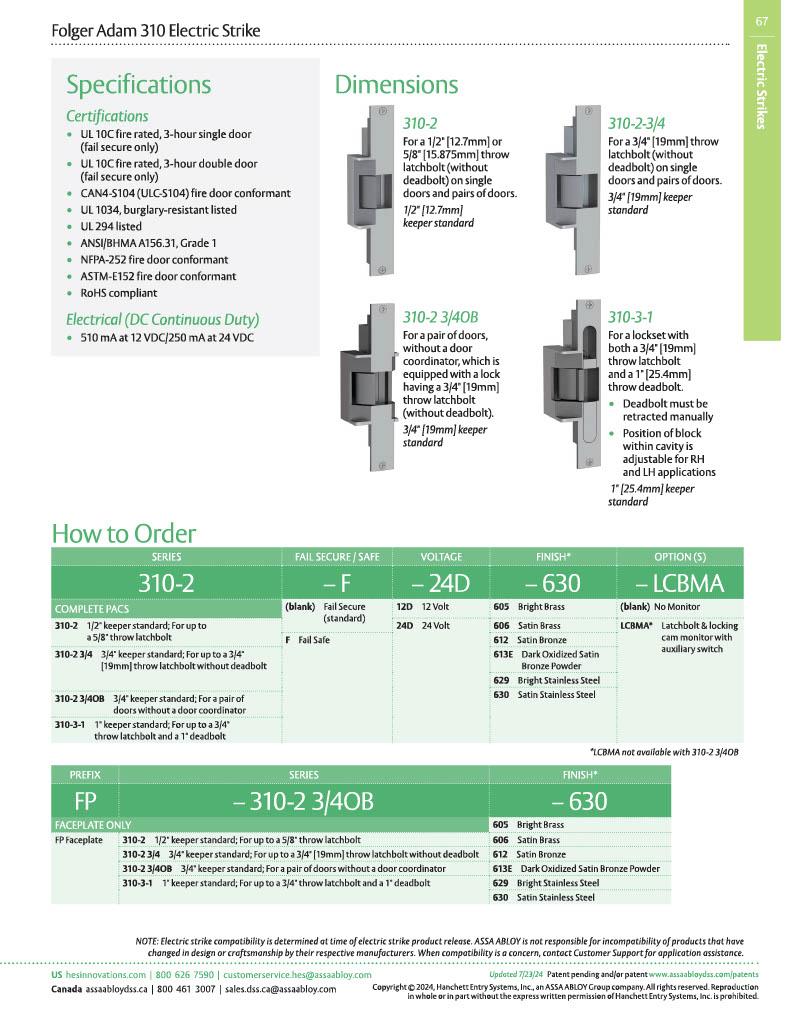

Specifications:

 UL 10C, 3-hour fire-rated (fail secure only) CAN4-S104 (ULC-S104) fire door conformant UL 1034, burglary-resistant listed UL 294 (6th Edition) listed ANSI/BHMA A156.31, Grade 1 NFPA-252 fire door conformant ASTM-E152 fire door conformant RoHS compliant

Model: 310-424D605, 310412D605, 310424D606, 310-412D606, 310424D612, 310412D612, 310-424D613, 310412D613, 310-424D629, 310424D613, 310412D613310-4F24D605, 3104F12D605, 3104F24D606, 310-4F12D606, 3104F24D612, 3104F12D612, 310-4F24D613, 3104F12D613, 310-4F24D629, 3104F24D613,310-424D605LCBA, 310412D605LCBA, 310424D606LCBA, 310-412D606LCBA, 310424D612LCBA, 310412D612LCBA, 310-424D613LCBA

Folger Adam 310-4 Rim Panic Device Electric Strike - For up to 3/4" Pullman style latchbolts

SKU: 310-4

In Stock

$696.54

Option *

Voltage *

Finish: *

Option: *

About this item

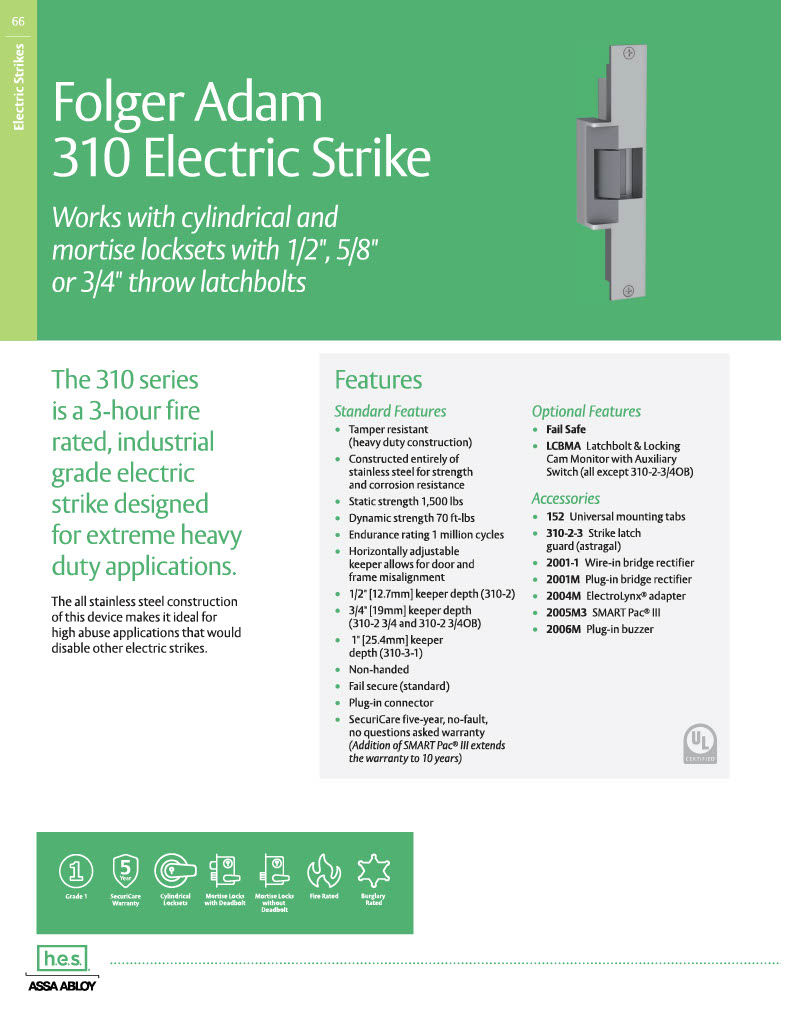

The 310-4 is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes. The 310-4 has a unique 3/4" face plate with an integrated 1/4" base shim that can be removed in the field to accommodate rim exit devices with a 1/2" or 3/4" throw latchbolt.

Folger Adam 310-4 Rim Panic Device Electric Strike - For up to 3/4" Pullman style latchbolts

310-4 - For up to 3/4" Pullman style latchbolts on single doors

PK keeper standard

Standard Features:

 Integrated shim for quick customization of faceplate thickness (1/2" to 3/4").

Tamper-resistant, heavy duty construction.

Constructed entirely of stainless steel for strength and corrosion resistance.

Static strength 1,500 lbs.

Dynamic strength 70 ft-lbs.

Endurance rating 500,000 cycles Integrated ramps for better deadlatch handling.

Set screws for horizontal lockdown In-frame horizontal adjustability.

Wider faceplate (1-3/4") for greater versatility.

Non-handed

Fail secure

Plug-in connector

Five-year limited warranty

Optional Features:

 (F) Fail safe LCBMA - Latchbolt & Locking CamMonitor with Auxiliary Switch

Specifications:

 UL 10C, 3-hour fire-rated (fail secure only) CAN4-S104 (ULC-S104) fire door conformant UL 1034, burglary-resistant listed UL 294 (6th Edition) listed ANSI/BHMA A156.31, Grade 1 NFPA-252 fire door conformant ASTM-E152 fire door conformant RoHS compliant

Model: 310-424D605, 310412D605, 310424D606, 310-412D606, 310424D612, 310412D612, 310-424D613, 310412D613, 310-424D629, 310424D613, 310412D613310-4F24D605, 3104F12D605, 3104F24D606, 310-4F12D606, 3104F24D612, 3104F12D612, 310-4F24D613, 3104F12D613, 310-4F24D629, 3104F24D613,310-424D605LCBA, 310412D605LCBA, 310424D606LCBA, 310-412D606LCBA, 310424D612LCBA, 310412D612LCBA, 310-424D613LCBA
