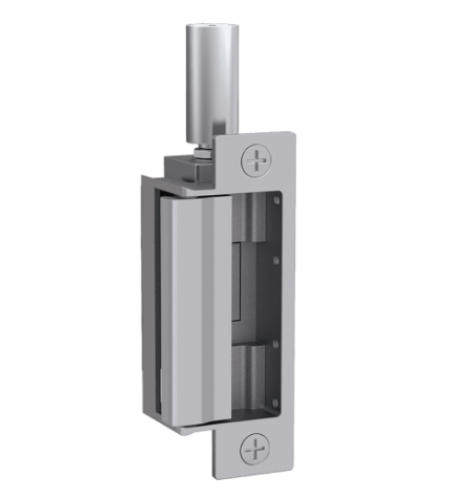

Folger Adam 742-75 Electric Strike - For use with 1/2", 5/8" or 3/4" throw latchbolts in hollow metal applications

Folger Adam 742-75 Electric Strike - For use with 1/2", 5/8" or 3/4" throw latchbolts*in hollow metal applications*

For use with 1/2", 5/8" or 3/4" throw latchbolts in hollow metal frame applications

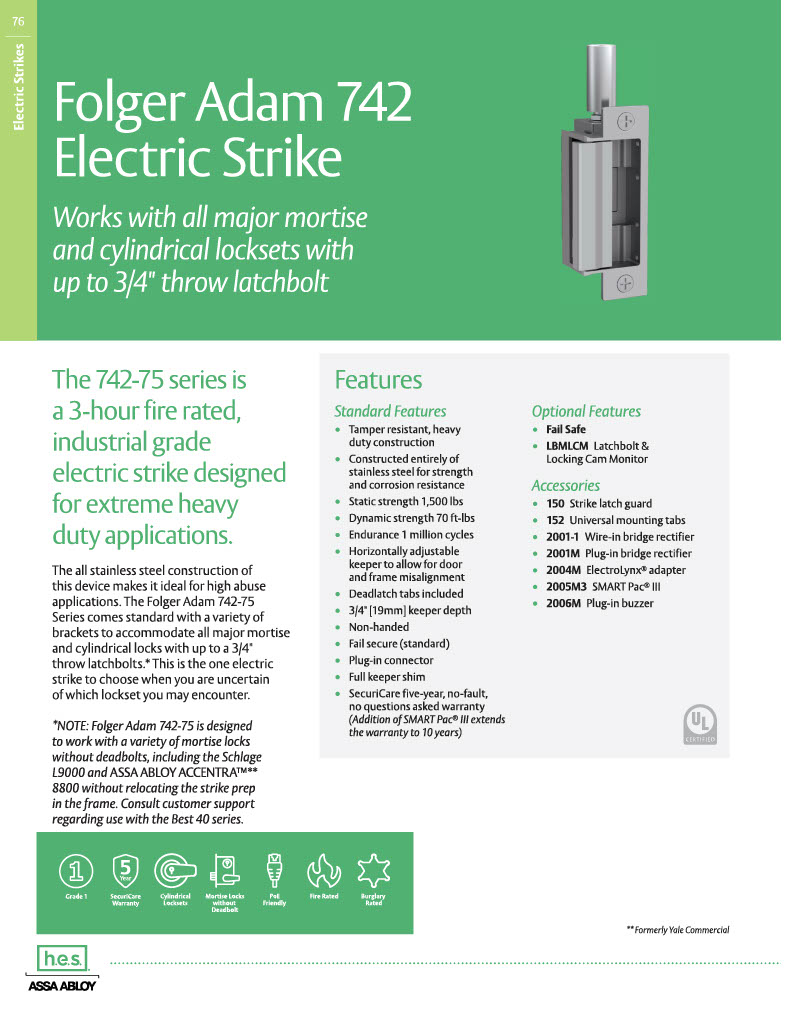

Standard Features:

• Tamper-resistant, heavy duty construction

-Constructed entirely of stainless steel for strength and corrosion resistance

• Static strength 1,500 lbs.

• Dynamic strength 70 ft-lbs.

• Endurance rating 500,000 cycles

• Horizontally adjustable keeper to allow for door and frame misalignment

• Deadlatch tabs included

• 3/4" keeper depth

• Non-handed

• Fail secure

• Plug-in connector

• Full keeper shim

• Five-year limited warranty

Electrical (continuous duty)

-.29 Amps at 12 VDC

-.15 Amps at 24 VDC

• PoE friendly

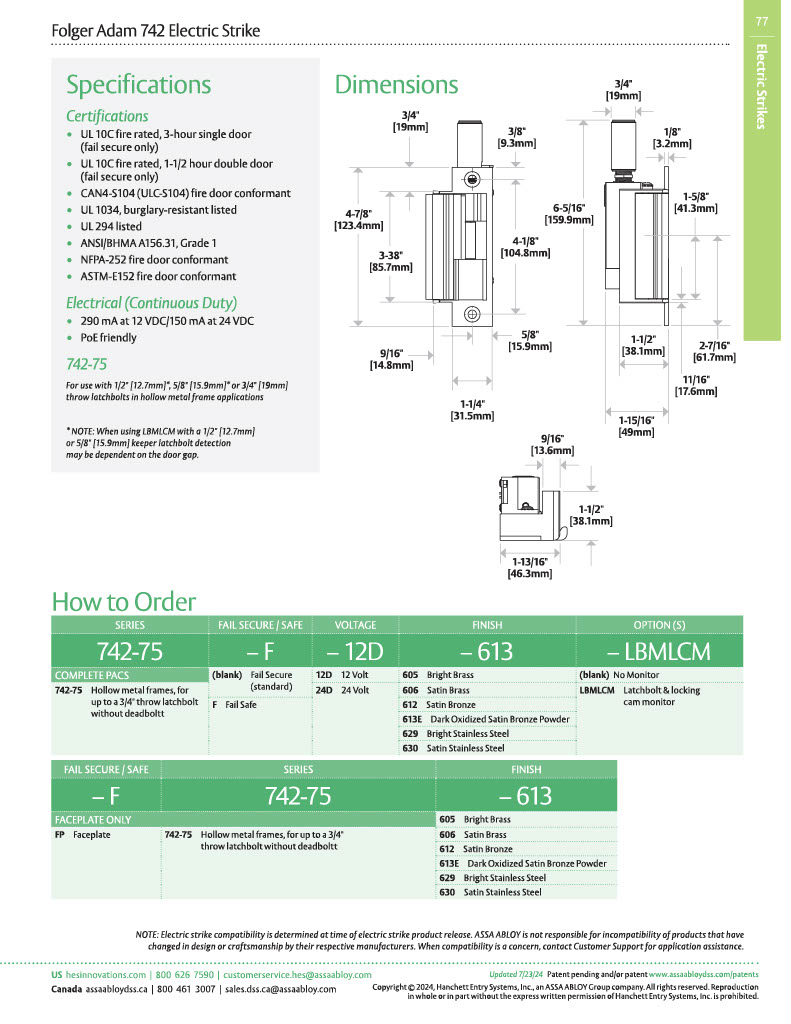

Specifications:

• UL 10C fire-rated, 3-hour single door (fail secure only)

• UL 10C fire-rated, 1-1/2 hour double door (fail secure only)

• CAN4-S104 (ULC-S104) fire door conformant

• UL 1034, burglary-resistant listed

• UL 294 (6th Edition) listed

• ANSI/BHMA A156.31, Grade 1

• NFPA-252 fire door conformant

• ASTM-E152 fire door conformant

Note: 742-75 is designed to work with a variety of mortise locks without deadbolts, including the Schlage L9000 and Yale 8800 without relocating the strike prep in the frame. Consult HES customer support regarding use with Best 40 Series

Model:742-75F12D630, 742-75F24D630, 742-7512D630, 742-7524D630, 742-75F12D606, 742-75F24D606, 742-7512D606, 742-7524D606, 742-75F12D612, 742-75F24D612, 742-7512D612, 742-7524D612, 742-75F12D613, 742-75F24D613, 742-7512D613, 742-7524D613, 742-75F12D605, 742-75F24D605, 742-7512D605, 742-7524D605, 742-75F12D629, 742-75F24D629, 742-7512D629, 74224D629
