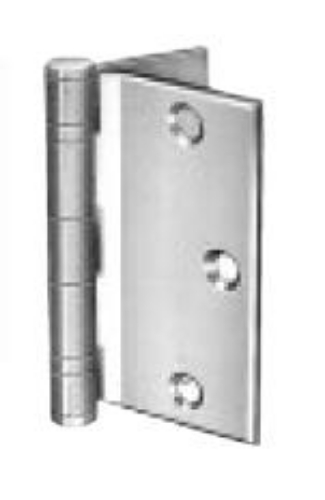

Hager BB1173 4-1/2" Ball Bearing, Half Surface Hinge,Hager BB1173 4-1/2" Ball Bearing, Half Surface Hinge

BB1173_hinge
BB1173_hinge
naxt
prev

Product Details

Hager BB1173 - Half Surface - Five Knuckle -Ball Bearing -Standard Weight Hinge

Half Surface One leaf is mortised in the frame and the other is surface applied to the face of the door (wood door with wood frame or metal core door with hollow metal frame).

For use on regular weight hollow metal or wood composite doors with hollow metal frames requiring low frequency service

Hinge Size : 4-1/2" (114 mm)

Material: Steel with Steel pin- ANSI A8433

Description:

Non-rising removable pin with button tip and plug -Two ball bearings

Beveled surface leaf

Thru-bolts and grommets for wood door applications

Reversible

Gauge of Metal: 0.134

Hole Count: 7

Screw Size: Machine Screws: Door Leaf - 2 x1/4-20 OH ,Frame Leaf 1/2x 12-24 FH

Packaging: Sold as individual units (1 EACH)

Finish: US26D - Satin Chrome,  US10B - Oil Rubbed Bronze

Hager BB1173 4-1/2" Ball Bearing, Half Surface Hinge,Hager BB1173 4-1/2" Ball Bearing, Half Surface Hinge

SKU: BB117345

In Stock

$72.94

Finish *

26D - Satin Chrome
26D - Satin Chrome

About this item

Half Surface commercial Grade Hinge - Ball Bearing - Standard Weight
