Trilogy PDL5300 Double sided Digital Proximity Lock, Audit Trail

Alarm Lock - Trilogy PDL5300 Series Double sided Digital Proximity Lock, Audit Trail

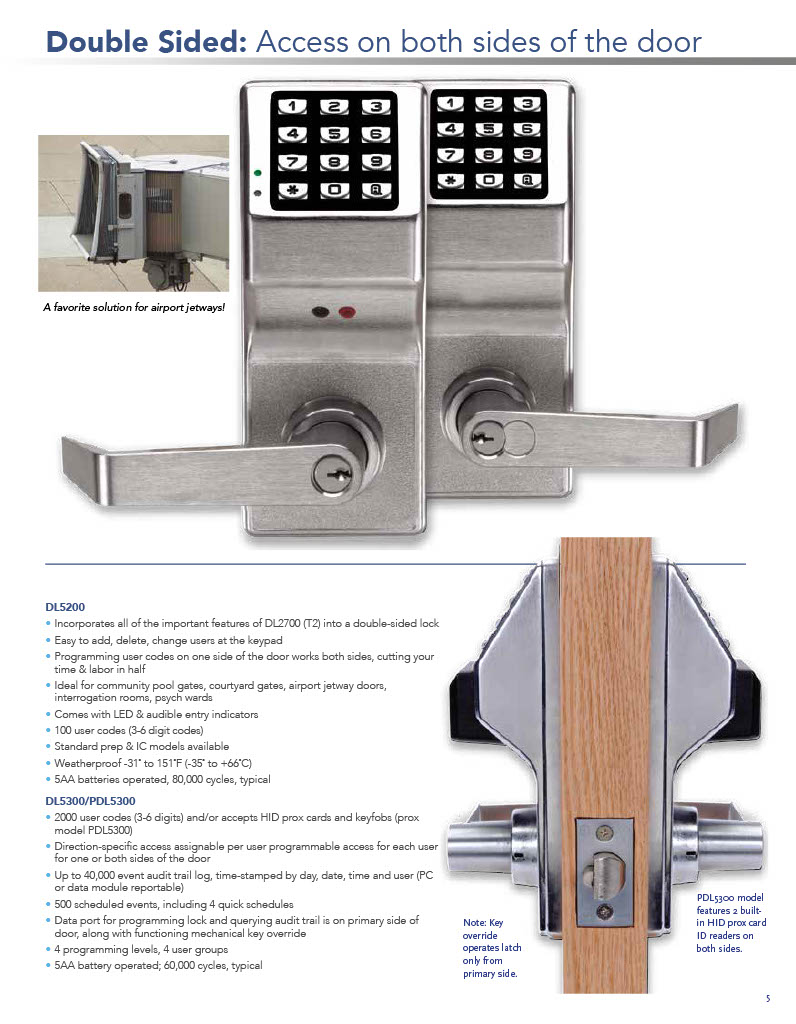

Programmable keypad on both sides of the door. Only primary keypad has data transfer capability

Key override is only operable on the primary side. The key on the secondary side is use only to remove the lever and access the batteries.

Will read most HID card and keyfob formats.

Use the same ID cards as hardwired access systems & install in an hour

Provide access with prox ID-cards or 3 to 6 digit codes. Users are individually programmed to use a card only, code only, or, for the highest security, both card and code.

Built-in HID Prox reader for entry with HID prox ID cards and keyfob credentials

Tap and Add batch ID card enrollment mode at lock or download from a PC

Program at keypad or with PC-and/or data-transfer module

2000 user codes (3-6 digits) including: Master, manager, supervisor and basic user. Also one-time entry service code,500 scheduled events, including 4quick schedulesfor programming the 4 most common time schedules in one step

Quick passage mode (without being in program mode)

40,000 event audit trail with time/date stamp for a printable record of door access activity by user, can be polled with the (AL-PCI)Interface Cable & Sofware (sold separately) toany PC using DLWindows Software.

Hand-held infrared (AL-IR1) printer can be used to print on-site from the lock(sold separately).

Data Transfer Module (AL-DTMII)can also be used to transfer program data from the PC (running DL-WINDOWS software) to the lock and receives audit trail from the lock. Can store data for up to 96 locks at a time(sold separately).

Weatherproof performance, water-sealed for use inside and out, with operational temperature range of +151 F to -31 F (+66 C to -35 C)

Real time clock allows logging of events to within 1 second of accuracy

Battery operated; Uses 5 AA alkaline batteries, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drivemotor. 60,000 cycles typical.

Available in standard key override and interchangeable core modelsaccepting 6 or 7 pin cores from Arrow, Best, Falcon or KSP. Other IC core preps available.

Model: Alarm Lock, Trilogy,PDL5300, PDL530026D, PDL5300US26D, Finishes: 26D, Satin Chrome

KEYPADS PRIMARY & SECONDARY (2):Weatherproof, all metal, 12-button programmable for multi-level access functions. Proximity antenna housing molded of ultra high strength, impact resistant Lexan?.

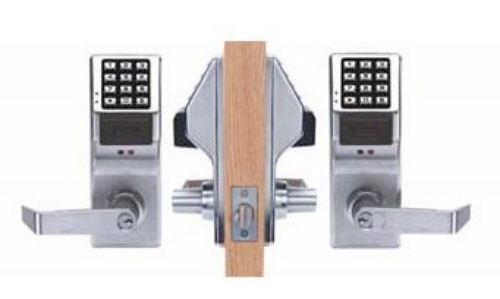

DUAL-SIDED OPERATION:Assignable by direction (door-side), authorized digital code (3 - 6 digits) &/or HID credential (virtually all formats cards/fobs are supported in PDL5300) allows lever to retract latch. Programmable 'Free Passage' Mode, entered at keypad or by schedule, allows free passage in both directions through door (w/o ID/code).

KEY OVERRIDE CYLINDERS (2) OPERATION:Two indentical cylinders are used on primary and secondary sides. Primary side of door, cylinder provides manual key override. Secondary side of door, is same cylinder, but controls battery compartment access. (see cylinders, right.)

PROGRAMMING/REPORTING FROM PRIMARY SIDE OF DOOR:Data port for lock programming and querying audit trail is on main side of door. Programming includes: Locking modes, 500 event schedules (e.g., automatic lock/unlock times), group, individual, master, management, passage, emergency service codes. Lockout, remote override capability and allowable entry time (3, 10 or 15 seconds), are programmable through the keypad, AL-DTM Transfer Module or Alarm Lock's DL-Windows PC Software.

HID Proximity Reader:Built-in, weather-sealed HID reader supports virtually all HID cards and HID fob credential formats.

Operation:Durable clutch mechanism permits turning lever without retracting latch and reduces stress on lock bodies and spindle. Outside lever free turning in locked position. Entering access code, key bypass, or remote bypass will allow lever to retract latch. Inside lever always instant egress.

Door Thickness:1 5/8" to 1 7/8." Other thicknesses. Please consult factory.

Backset:2 3/4" Standard. 2 3/8" backset also available.

Standard Key Override Cylinder:Solid brass 6 pin tumbler cylinder pinned 5, SC1 keyway, furnished in all locks. Additional tailpieces included: HW580 fits Schlage, Corbin/Russwin CL, Sargent 480 Series, ASSA65-611. Model HW620 fits Ilco and Lori cylinders.

Interchangeable Core Models: Accepts 6 & 7 Pin Cylinders from: Best, Arrow, KSP, Medeco Keymark & Kaba Peaks. Also available IC Core models for Yale, Medeco, Sargent, Corbin/Russwin CL and Schlage. Alarm Lock Tailpiece is supplied; IC Core is not included.

Latchbolt:UL Listed, fire rated, 3 hours, 1/2? throw, solid brass, deadlocking. Reversible. Adjustable front for flat or beveled doors.

Strike:1 1/8? x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included. With screws for wood or metal jambs.

Latch Front:1 1/8" x 2 1/4" wrought brass or stainless steel.

Handing:Non-handed.

Door Prep:Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.

Compliances:Grade I, heavy duty cylindrical lockset, UL listed to the 10C Positive Pressure Specification and FCC certified.

ADA:compliant levers.
