Ives 02-31252U Knocker with U701 Viewer

Ives 02-31252U Knocker with U701 Viewer

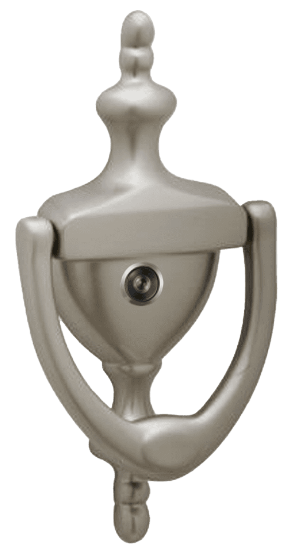

Give your door a classic look while adding a built-in door viewer that matches the knocker. The Ives 02-31252U is made from forged brass and mounts through the door for a strong, steady hold. It fits thicker doors and meets ANSI/BHMA A156.16 (L23161) for door knockers.

Function

ANSI/BHMA A156.16 (L23161) - It lets visitors knock at the door and lets you see who is outside through the U701 viewer without opening the door.

Applications

Use it on exterior or interior entry doors where you want a traditional knocker and a matching door viewer in one set.

Best for

• Homes that want a classic front door detail

• Apartments and condos that want a door viewer and knocker together

• Offices with entry doors that need a simple way to identify visitors

• Doors that are 1-5/8 in to 2-1/8 in thick



It helps by

• Adding a clear view outside with a wide 120 degree viewing angle

• Giving visitors a solid knocker to use instead of tapping on the door

• Keeping the look consistent because the knocker and viewer are designed as a matching set



Key highlights

• One matching set: door knocker plus door viewer

• Forged brass build

• Made for thicker doors in the 1-5/8 in to 2-1/8 in range

• Wide 120 degree view



What’s included

• Door knocker body and matching parts (02-31252U set)

• U701 door viewer

• Through-bolts for mounting through the door



Key features

• Through-door mounting

• Forged brass construction

• Fits 1-5/8 in to 2-1/8 in doors

• 120 degree viewer angle

• 1/2 in viewer hole requirement



Keying options

• Not a keyed item because it does not include a lock cylinder

• No keying options apply for this product set



Warranty

• Limited warranty against defects in material and workmanship for 12 months from the date of shipment (manufacturer warranty document).

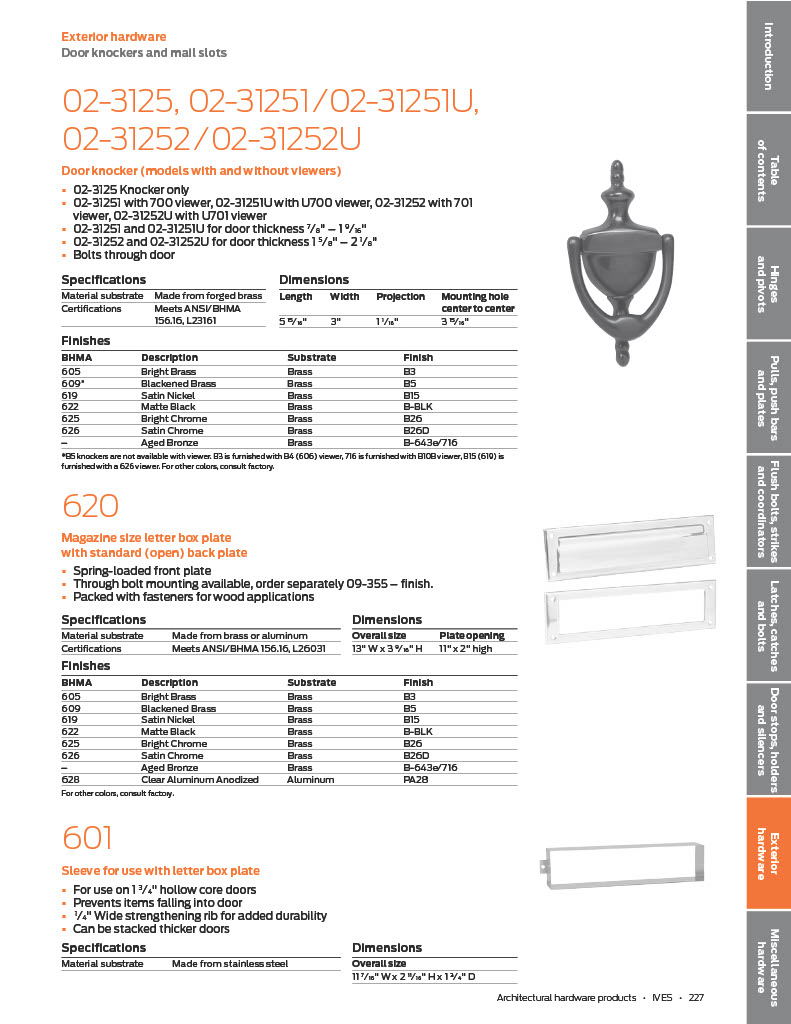

Specifications

• Model: 02-31252U

• Door thickness range: 1-5/8 in to 2-1/8 in

• Material: forged brass

• Mounting: bolts through door

• Knocker dimensions: length 5-15/16 in

• Knocker dimensions: width 3 in

• Knocker dimensions: projection 1-1/16 in

• Mounting holes center-to-center: 3-15/16 in

• Viewer angle: 120 degree

• Viewer door hole size: 1/2 in

• Standard for knocker: ANSI/BHMA A156.16 (L23161)

• Common listing for the U701 viewer: UL10C listed for 90 minute fire doors in product listings
