Ives LG1 Lock guard w/Security Pin 3" X 11-1/2"

Ives LG1 Lock guard w/Security Pin 3" X 11-1/2"

Product Details

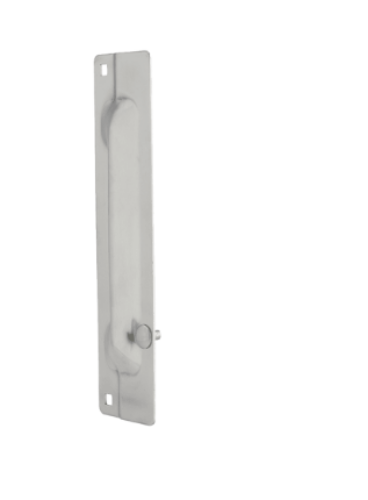

Ives LG1 Lock guard w/Security Pin 3" X 11-1/2"

Units are non-handed and incorporate security frame pin to prevent separation of the door and frame.

Unit covers the latch bolt area of the door and lock, thereby providing added protection from burglars, vandals or normal abuse.

Ideal for use with mortise or cylindrical locks.

Easy installation.

Through bolted with carriage bolts and nuts.

Available in a variety of materials, 13 gauge stainless steel, 12 gauge steel and brass material.

Dimensions

3" Wide x 11-1/2" High

Bolt center to center: 10-1/2"

Finish: US4 Satin Brass, Clear Coat (606) US10 Satin Bronze, Clear Coat (612) SP313 Dark Bronze (695) USP Prime Coat (600) US2G Zinc Plated (604) US32D Satin Stainless Steel (630)

Model: LG1, LG1US4, LG1US10, LG1SP313, LG1USP, LG1US2G, LG1US32D

Ives LG1 Lock guard w/Security Pin 3" X 11-1/2"

SKU: LG1

In Stock

Chat

$20.38

About this item

3" Wide x 11-1/2" High

Resources

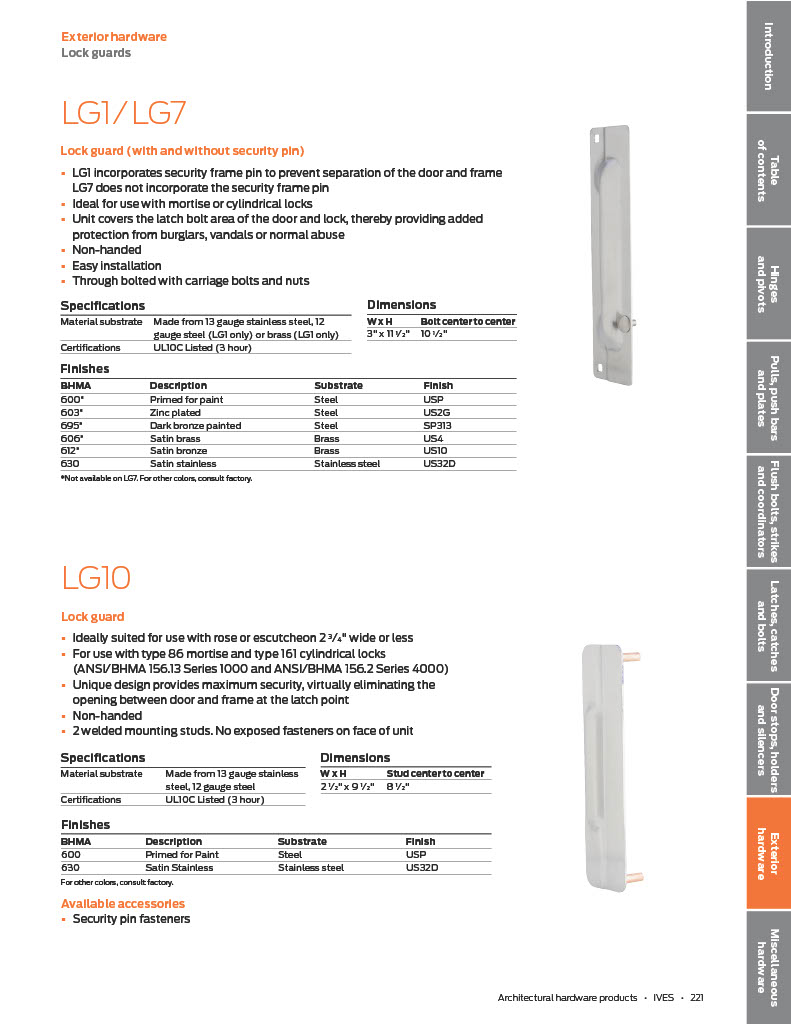

IVES Full Catalog

Ives LG1 Lock guard w/Security Pin 3" X 11-1/2"

Units are non-handed and incorporate security frame pin to prevent separation of the door and frame.

Unit covers the latch bolt area of the door and lock, thereby providing added protection from burglars, vandals or normal abuse.

Ideal for use with mortise or cylindrical locks.

Easy installation.

Through bolted with carriage bolts and nuts.

Available in a variety of materials, 13 gauge stainless steel, 12 gauge steel and brass material.

Dimensions

3" Wide x 11-1/2" High

Bolt center to center: 10-1/2"

Finish: US4 Satin Brass, Clear Coat (606) US10 Satin Bronze, Clear Coat (612) SP313 Dark Bronze (695) USP Prime Coat (600) US2G Zinc Plated (604) US32D Satin Stainless Steel (630)

Model: LG1, LG1US4, LG1US10, LG1SP313, LG1USP, LG1US2G, LG1US32D
