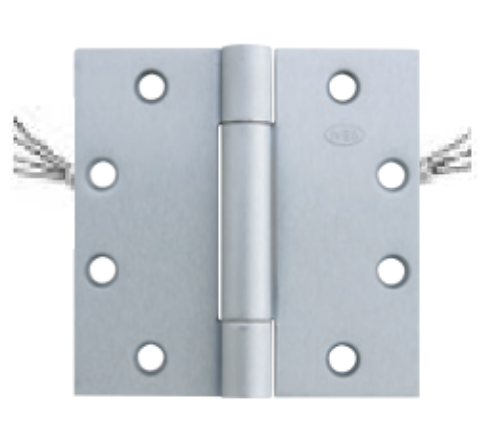

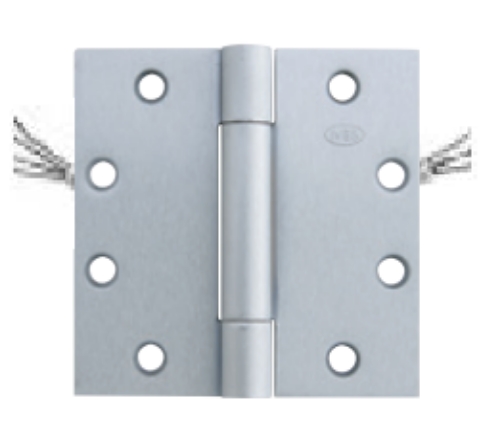

Ives 3CB1HW 4-1/2" x 4-1/2" TW8M Full Mortise Electrified Hinge - 8 Wires W/ Monitor - Three Knuckle - Concealed Bearing - Heavy Weight
Product Details
Ives 3CB1HW 4-1/2" x 4-1/2" TW8M Full Mortise Electrified Hinge - 8 Wires W/ Monitor - Three Knuckle - *Concealed Bearing - Heavy Weight*
For use on Heavy weight doors
Hinge Size:4-1/2" x 4-1/2" (114 x 114 mm)
Material:Steel
Gauge of Metal:0.180
One hinge per box, packed with wood and machine screws Hinge is NRP as a standard High quality brass ferrules and plastic tubing protectthe wires Through-wire hinges cycle tested to ensure durability Ives warranty applies -12 months from date of shipment 2 ball bearingThrough-Wire is rated for 50 volts AC/DC at 3.5 amp continuous and 16 amp pulse, maximum pulse 400 mili second.
Monitor rated 30VDC at .5 amp
UL Listed - UL634 Meets ANSI/BHMA A156.1 A8111 – Steel A5111 – Stainless Steel A2111 – Brass
