Cal Royal SC8456LG US32D Heavy Duty Grade 1, Nurse Dormitory with Deadbolt (Corridor) Ligature Resistant Mortise Lockset - Stainless steel
Product Details
Cal Royal SC8456LG*US32DHeavy Duty Grade 1, Nurse Dormitory with Deadbolt (Corridor)Ligature Resistant Mortise Lockset - Stainless steel*
For Trims Styles Click here

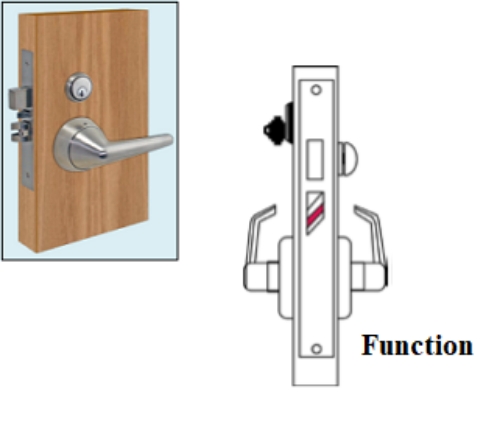

Function:*ANSI F13 - * Nurse Dormitory with Deadbolt (Corridor) -Latch bolt retracted by knob / lever from either side. Deadbolt thrown or retracted by key outside or inside thumbturn. Throwing deadbolt locks outside knob / lever. Turning inside knob / lever simultaneously retracts deadbolt and latch bolt and unlocks outside knob / lever. Inside knob / lever is always free for immediate egress.
FEATURESANSI A156.13-2017 Grade 1 Mortise locks
Outside lever clutch free-wheeling design.
The lever rotates when the lever is locked preventing excessive force from being applied to the horizontal lever. This design decreases the chance of the lever being broken or damaged
Ligature Resistant lever design helps to prevent intentional or accidental hanging
Anti-vandal cylinder guard is standard, deters forcible removal of cylinder with any type of wrench or hammer
Tamper resistant concealed mounting set screws
Non-handed, fully field reversible
Heavy duty escutcheon and sectional trim available
No exposed mounting screws
Can retrofit Schlage L9000 Series mortise lock bodies
CERTIFICATIONS
Meets ANSI / BHMA A156.13 Series 1000 Grade 1 Requirements
UL and cUL listed to Canadian safety standard for A label (3-hour fire door); stamped letter "F" and UL symbol on armor faceplate
Meets positive pressure requirements UL 10C and UBC 7-2 (1997)
Warranty:Lifetime warranty
Model:Cal Royal SC8456LG, SC8456LG US32D Heavy Duty Grade 1, Office / Entrance Ligature Resistant Mortise Lockset -Stainless steel, SC8456LG, SC8456LGLGK, SC8456LGLGX, SC8456LGLGS, SC8456LGLGE, SC8456LG US32D, SC8456LGUS32D, SC8456LGLGKUS32D, SC8456LGLGXUS32D, SC8456LGLGSUS32D, SC8456LGLGEUS32D,
