Product Details

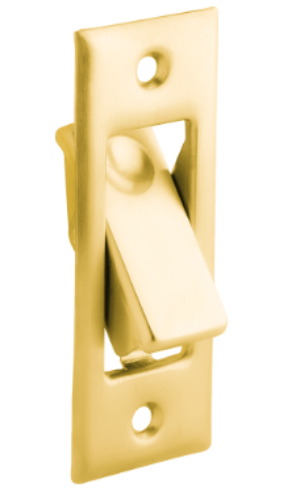

Ives 42 Pocket Sliding Door Bolt
Exclusive Ives design permits emergency release of bolt from outside the door.
Spring activated design allows feather-touch action.
Brass grommet supplied to cap release hole, protecting the doors finish.
Made from wrought brass.
Dimensions
Overall Size Plate: 3-1/16" High x 1-5/32" Wide
Strike: 1" High x 3/4" Wide
Depth of Mortise: 5/8"
Finishes: B3 - Brass Material - Bright Brass (605) B4 - Brass Material - Satin Brass (606) B5 - Brass Material - Antique Brass (609) B10 - Bronze Material - Satin Bronze (612) B10B - Bronze Material - Oil Rubbed Bronze (613) B15 - Brass Material - Satin Nickel (619) B26 - Brass Material - Polished Chrome Plated (625) B26D - Brass Material - Satin Chrome Plated (626) Model: 42B3, 42B4, 42B5, 42B10, 42B10B, 42B15, 42B26, 42B26D
