Ives CS115 Crash Stop

Product Details

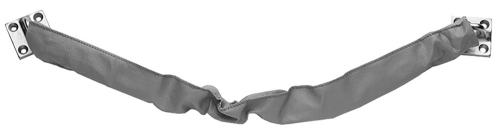

Ives CS115 Crash Stop

Specially designed for full-size exterior doors.

Tear resistant, grey vinyl cover.

Heavy duty compression spring assembled to both ends of chain and end brackets.

Packed with sheet metal screws.

Cast Brass brackets with solid, welded steel chain.

Optional sex bolt mounting available in US26D (626) only.

Dimensions

Bracket Size: 1-9/16" x 1-9/16"

Available Lengths:

20-1/2" Recommended for 30" Door Width (Product No. CS115-20)

25-1/2" Recommended for 36" Door Width (Product No. CS115-25)

30-1/2" Recommended for 42" Door Width (Product No. CS115-30)

Finish: B10B (US10B) Dark Bronze, Oil Rubbed (613) B26D (US26D) Satin Chrome (626)

Model: CS115US10B, CS115US10B20 1/2 IN, CS115US10B25 1/2 IN, CS115US10B30 1/2 IN, CS115US26D, CS115US26D20 1/2 IN, CS115US26D25 1/2 IN, CS115US26D30 1/2 IN

Ives CS115 Crash Stop

Name: Ives CS115 Crash Stop
SKU: CS115
Price: 45.89 USD
Availability: InStock

SKU: CS115

In Stock

Chat

$45.89

About this item

Meets ANSI/BHMA A156.16, L12231,

Resources

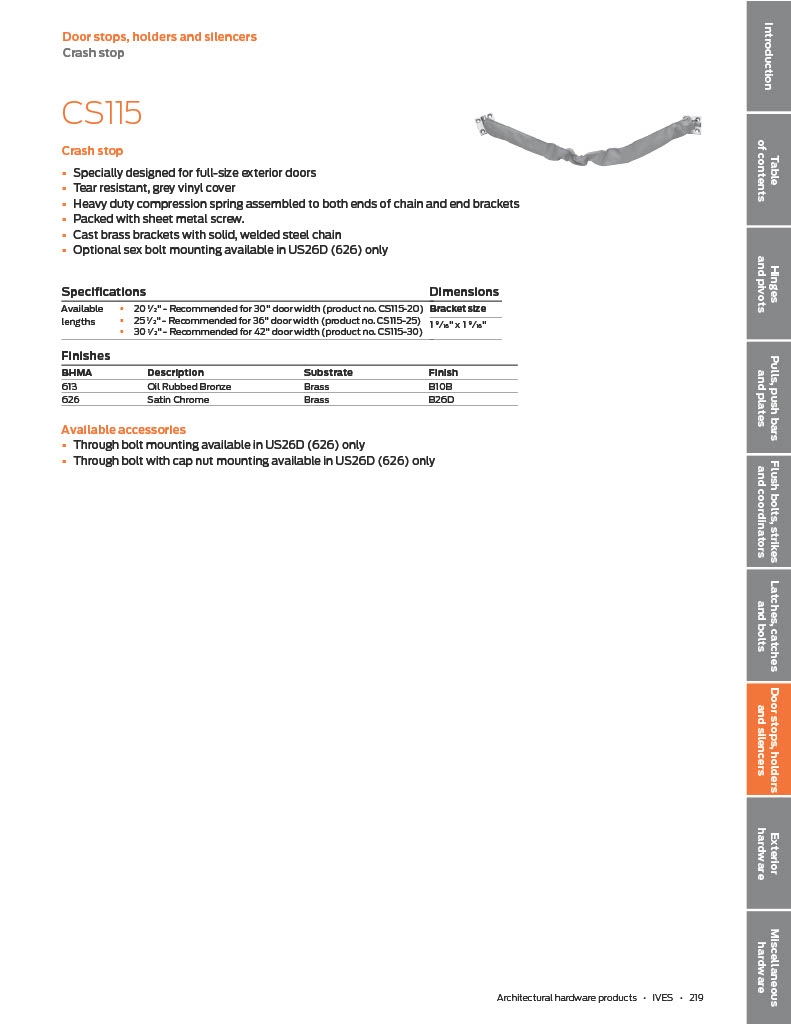

IVES Full Catalog

Ives CS115 Crash Stop

Specially designed for full-size exterior doors.

Tear resistant, grey vinyl cover.

Heavy duty compression spring assembled to both ends of chain and end brackets.

Packed with sheet metal screws.

Cast Brass brackets with solid, welded steel chain.

Optional sex bolt mounting available in US26D (626) only.

Dimensions

Bracket Size: 1-9/16" x 1-9/16"

Available Lengths:

20-1/2" Recommended for 30" Door Width (Product No. CS115-20)

25-1/2" Recommended for 36" Door Width (Product No. CS115-25)

30-1/2" Recommended for 42" Door Width (Product No. CS115-30)

Finish: B10B (US10B) Dark Bronze, Oil Rubbed (613) B26D (US26D) Satin Chrome (626)

Model: CS115US10B, CS115US10B20 1/2 IN, CS115US10B25 1/2 IN, CS115US10B30 1/2 IN, CS115US26D, CS115US26D20 1/2 IN, CS115US26D25 1/2 IN, CS115US26D30 1/2 IN
