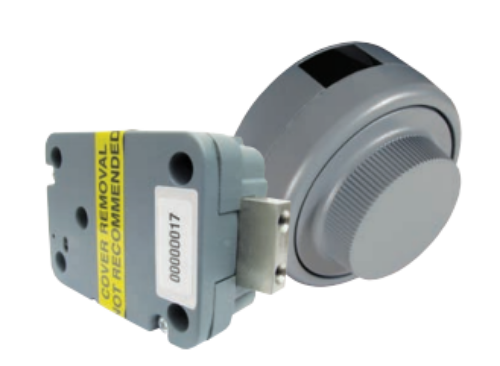

Kaba MAS X10XRDXXTZMEZ1A, X-10 High-Security Self-Powered Safe Lock

X10XRD
1-Page4-MAX-x10
X10XRD
1-Page4-MAX-x10
naxt
prev

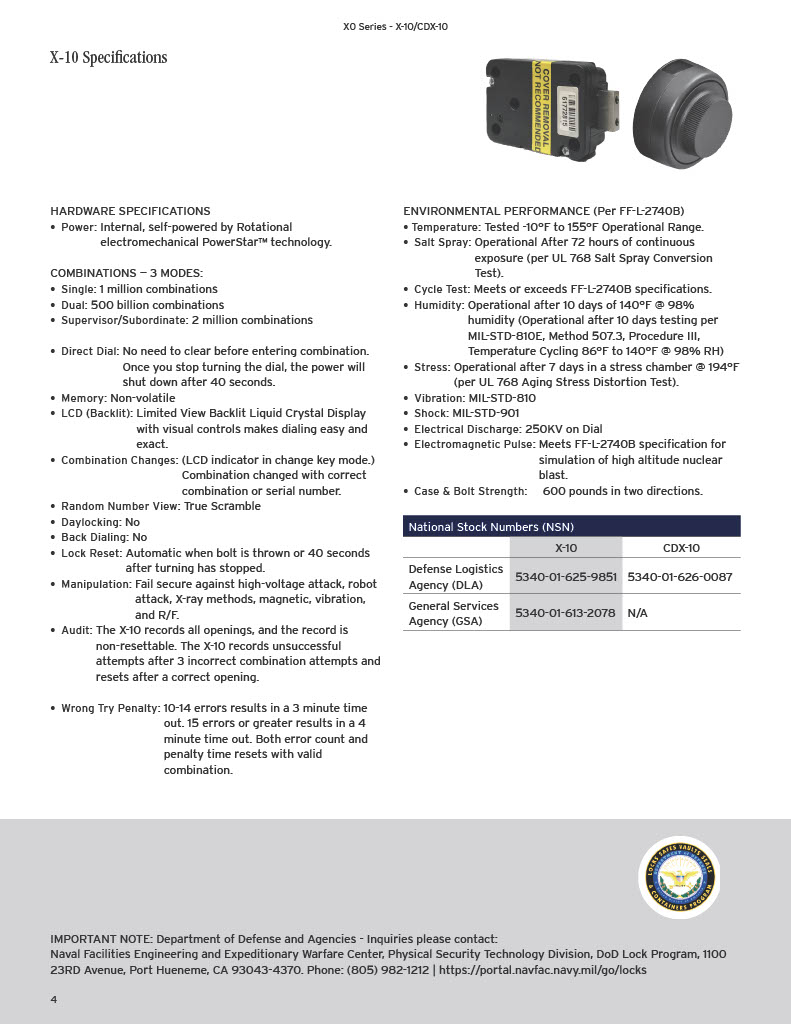

Product Details

Kaba MAS X10XRDXXTZMEZ1A, X-10 High-Security Self-Powered Safe Lock - Round Housing/Display - Dead Bolt, 10-32.5 (2X) Tapped Holes - Standard Relocker/Case Cover -4.50" (114.3 mm) Door

PRODUCT FEATURES

 Power: Internal, self-powered by “Green" Rotational electromechanical PowerStar™ technology.COMBINATIONS — 3 MODES:  Single: 1 million combinations Dual: 500 billion combinations Supervisor/Subordinate: 2 million combinations Direct Dial: No need to clear before entering combination. Once you stop turning the dial, the power will shut down after 40 seconds. Memory:Non-volatile LCD (Backlit): Limited View Backlit Liquid Crystal Display with visual controls makes dialing easy and exact.Combination Changes:(LCD indicator in change key mode.) Combination changed with correct combination or serial number. Random Number View:True Scramble Daylocking: No Back Dialing: No Lock Reset: Automatic when bolt is thrown or 40 seconds after turning has stopped. Manipulation: Meets all requirements of FF-L 2740B. Resists opening through manipulation for 20 man-hours.Audit:The X-10 records all openings, and the record is non-resettable. The X-10 records unsuccessful attempts after 3 incorrect combination attempts and resets after a correct opening. Wrong Try Penalty: ........... 10-14 errors results in a 3 minute time out. 15 errors or greater results in a 4 minute time out. Both error count and penalty time resets with valid combination.

PERFORMANCE FEATURES(PER FF-L-2740B)

Temperature: Tested -10 Degree F to 155 Degree F Operational Range. Salt Spray: Operational After 72 hours of continuous exposure (per UL 768 Salt Spray Conversion Test). Cycle Test: Meets or exceeds FF-L-2740B specifications. Humidity:Operational after 10 days of 140 Degree F @ 98% humidity (Operational after 10 days testing per MIL-STD-810E, Method 507.3, Procedure III, Temperature Cycling 86 Degree F to 140 Degree F @ 98% RH) Stress: Operational after 7 days in a stress chamber @ 194 Degree F (per UL 768 Aging Stress Distortion Test). Vibration: MIL-STD-810 Shock: MIL-STD-901 Electrical Discharge: 250KV on Dial Electromagnetic Pulse: Meets FF-L-2740B specification for simulation of high altitude nuclear blast. Case & Bolt Strength: 600 pounds in two directions.

Kaba MAS X10XRDXXTZMEZ1A, X-10 High-Security Self-Powered Safe Lock

SKU: X10XRDXXTZMEZ1A

In Stock
icon Chat
Picture for manufacturer Kaba Mas

$1,789.54

About this item

The Kaba Mas X-0 series is the trusted choice for securing the US Government’s most sensitive material. The X-0 series was first introduced in 1992 as the lock to meet the strict requirements of Federal Specification FF-L-2740. This specification is the US Government’s highest security standard for electro-mechanical locks. The X-10 represents the latest edition to this secure tradition. The X-10 is the GSA (General Services Administration) approved lock for FF-L-2740, latest revision B, Style 1 applications. The X-10 is approved by the GSA for use on approved Class 5 and 6 filing cabinets and Class 5 Security vault doors.

Resources

Kaba MAS X10XRDXXTZMEZ1A, X-10 High-Security Self-Powered Safe Lock - Round Housing/Display - Dead Bolt, 10-32.5 (2X) Tapped Holes - Standard Relocker/Case Cover -4.50" (114.3 mm) Door

PRODUCT FEATURES

 Power: Internal, self-powered by “Green" Rotational electromechanical PowerStar™ technology.COMBINATIONS — 3 MODES:  Single: 1 million combinations Dual: 500 billion combinations Supervisor/Subordinate: 2 million combinations Direct Dial: No need to clear before entering combination. Once you stop turning the dial, the power will shut down after 40 seconds. Memory:Non-volatile LCD (Backlit): Limited View Backlit Liquid Crystal Display with visual controls makes dialing easy and exact.Combination Changes:(LCD indicator in change key mode.) Combination changed with correct combination or serial number. Random Number View:True Scramble Daylocking: No Back Dialing: No Lock Reset: Automatic when bolt is thrown or 40 seconds after turning has stopped. Manipulation: Meets all requirements of FF-L 2740B. Resists opening through manipulation for 20 man-hours.Audit:The X-10 records all openings, and the record is non-resettable. The X-10 records unsuccessful attempts after 3 incorrect combination attempts and resets after a correct opening. Wrong Try Penalty: ........... 10-14 errors results in a 3 minute time out. 15 errors or greater results in a 4 minute time out. Both error count and penalty time resets with valid combination.

PERFORMANCE FEATURES(PER FF-L-2740B)

Temperature: Tested -10 Degree F to 155 Degree F Operational Range. Salt Spray: Operational After 72 hours of continuous exposure (per UL 768 Salt Spray Conversion Test). Cycle Test: Meets or exceeds FF-L-2740B specifications. Humidity:Operational after 10 days of 140 Degree F @ 98% humidity (Operational after 10 days testing per MIL-STD-810E, Method 507.3, Procedure III, Temperature Cycling 86 Degree F to 140 Degree F @ 98% RH) Stress: Operational after 7 days in a stress chamber @ 194 Degree F (per UL 768 Aging Stress Distortion Test). Vibration: MIL-STD-810 Shock: MIL-STD-901 Electrical Discharge: 250KV on Dial Electromagnetic Pulse: Meets FF-L-2740B specification for simulation of high altitude nuclear blast. Case & Bolt Strength: 600 pounds in two directions.

X10XRD
Kaba MAS X10XRDXXTZMEZ1A, X-10 High-Security Self-Powered Safe Lock

Product code: X10XRDXXTZMEZ1A

In Stock

$2,130.41

$1,789.54



X10XRD
Kaba MAS X10XRDXXTZMEZ1A, X-10 High-Security Self-Powered Safe Lock

Product code: X10XRDXXTZMEZ1A

In Stock

$2,130.41

$1,789.54
