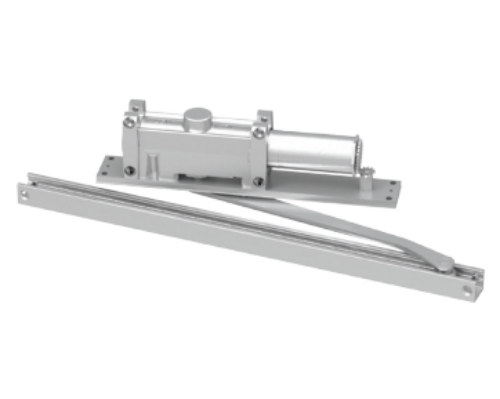

LCN 2013 H Bumper Concealed in frame Closer W/ Hold-Open Clip & Bumper - Aluminum - Size 3

LCN 2013 H Bumper Concealed in frame Door Closer W/ Hold-Open Clip & Bumper - AL-Aluminum - Size 3

Size 3: Exterior (and Vestibule) door width - 28˝ (711mm) to 30˝  (762mm), Interior door width - 34˝ (864mm) to 38˝ (965mm)

Closer will be shipped with:Standard cylinder - Finish plate -Standard arm - Hold-Open Bumper track - Wood and machine screw pack.

Mounting:Concealed (in frame); aluminum frame requires minimum 4˝ x 4˝ (102 mm) tube

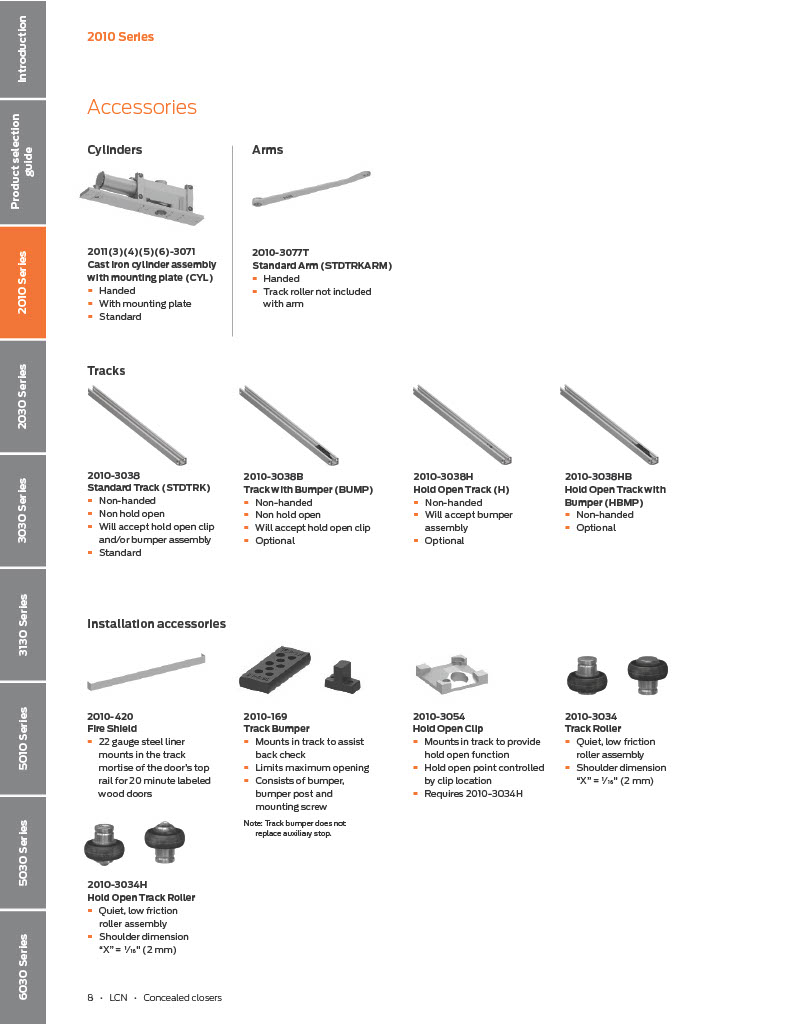

Hold-Open ClipMounts in track to provide holdopen function - Hold-open point controlled by clip location

Track Bumper- Mounts in track to assist backcheck - Limits maximum opening - Consists of bumper, bumper post, and mounting screw

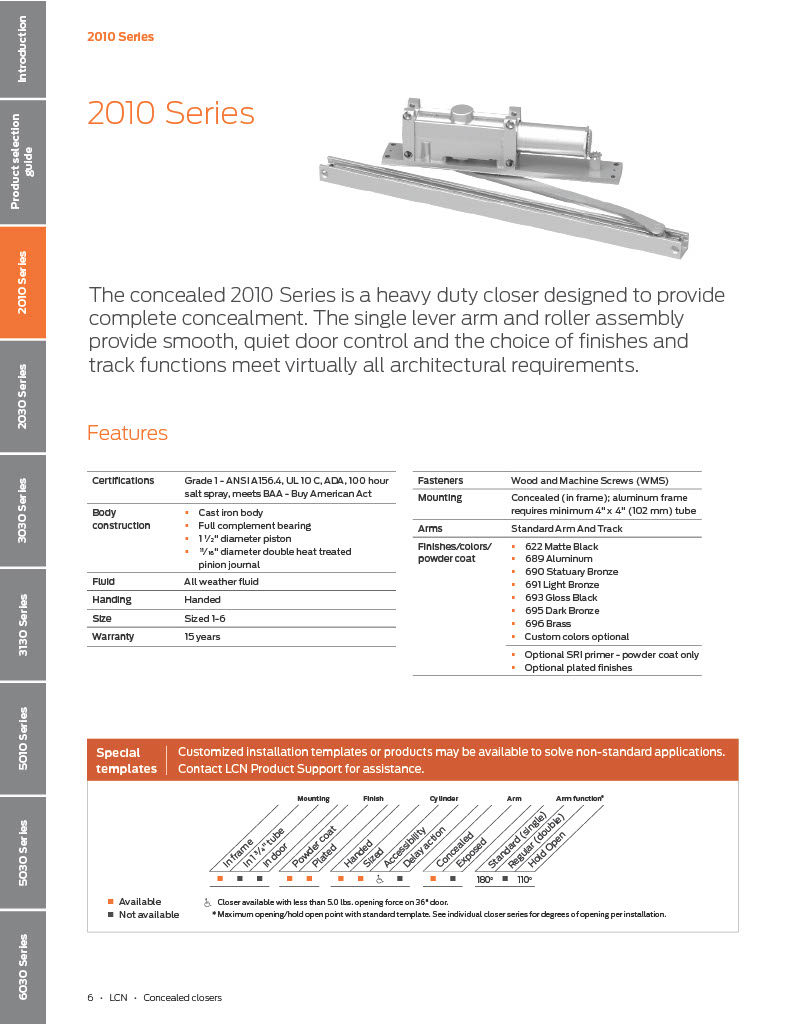

Body Construction:Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

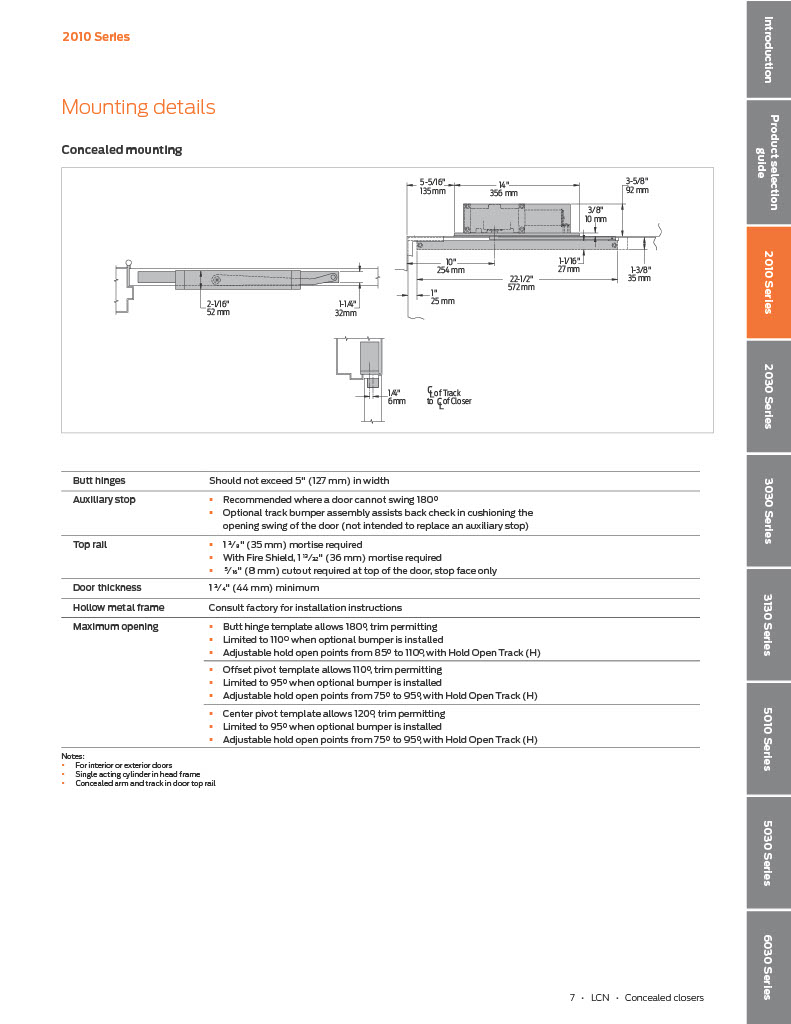

Top Rail:1-3/8˝ (35 mm) mortise required. With Fire Shield - 1-13/32˝ (36 mm) mortise required - 5/16˝ (8 mm) cutout required at top of the door, stop face only

Door Thickness:1-3/4˝ (44 mm) minimum

Fluid:All Weather Fluid

Fasteners:Wood and Machine Screw Pack

Warranty:15 years

Model: LCN 2013 H Bumper LH AL, 2013 H Bumper RH AL
