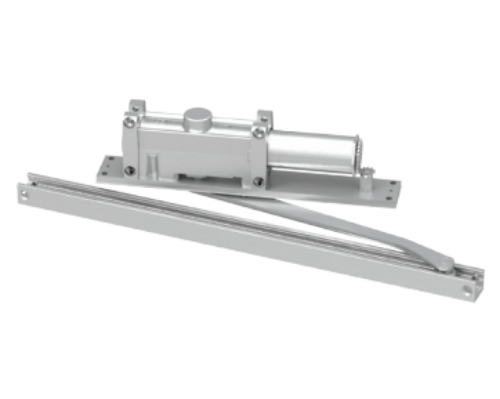

LCN 2016 H Concealed in frame Door Closer W/ Hold-Open Clip - AL - Aluminum - Size 6

LCN 2016 H Concealed in frame Door Closer W/ Hold-Open Clip - AL-Aluminum - Size 6

Size 6: Exterior (and Vestibule) door width - 42˝ (1067mm) to 48˝ (1219mm), Interior door width - ˝54 (1372mm) to 60˝ (1524mm)

Closer will be shipped with:Standard cylinder - Finish plate -Standard arm - Hold-Open track - Wood and machine screw pack.

Mounting:Concealed (in frame); aluminum frame requires minimum 4˝ x 4˝ (102 mm) tube

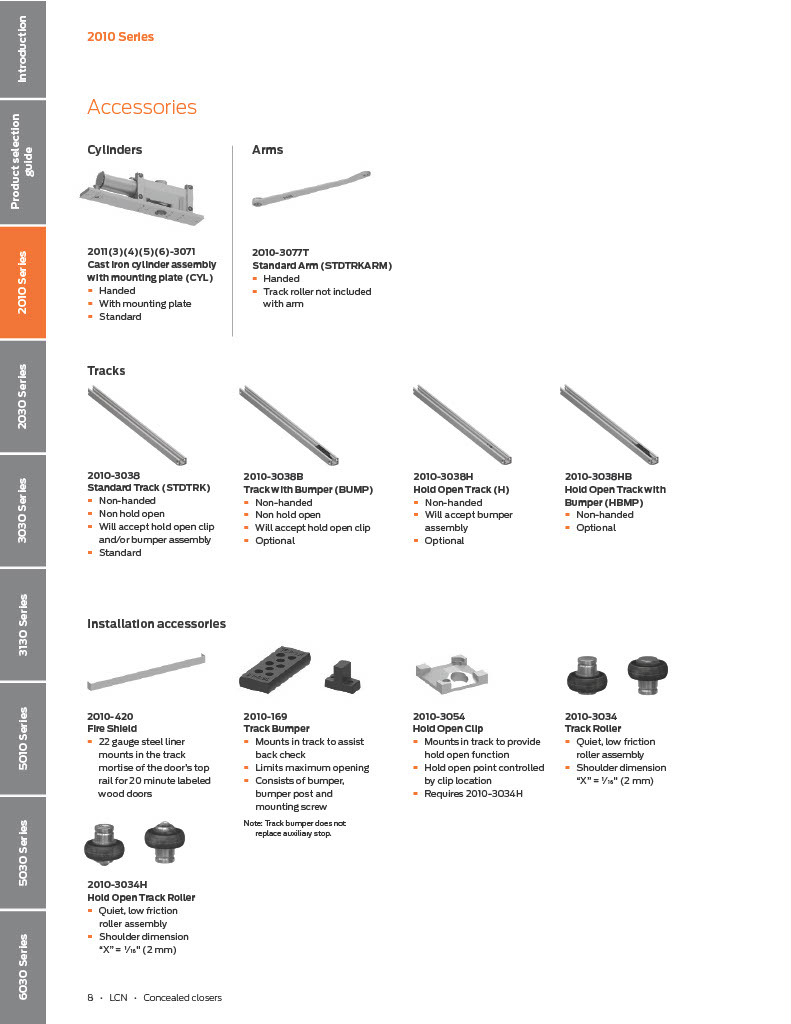

Hold-Open ClipMounts in track to provide holdopen function - Hold-open point controlled by clip location

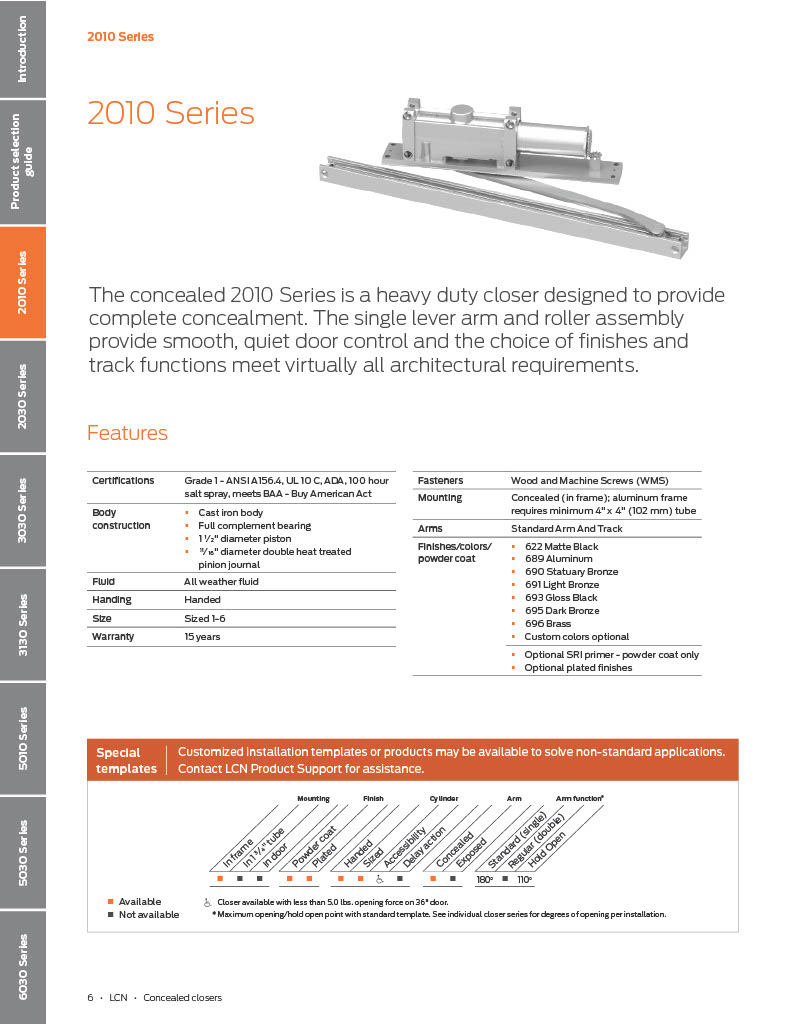

Body Construction:Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

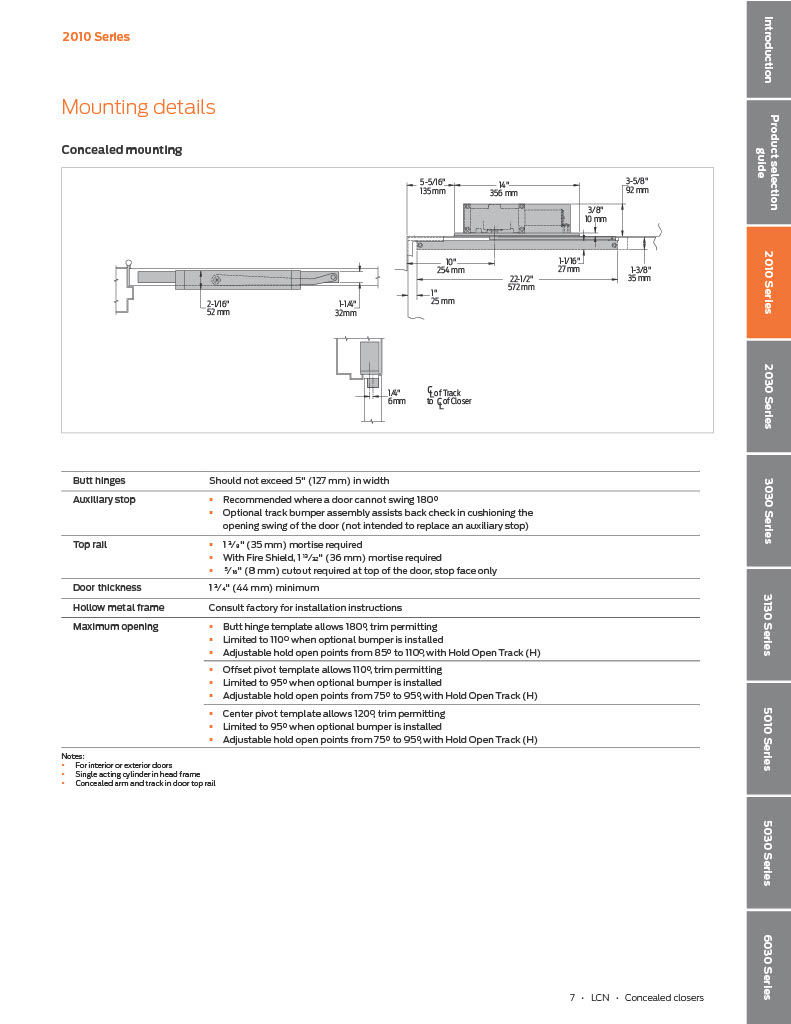

Top Rail:1-3/8˝ (35 mm) mortise required. With Fire Shield - 1-13/32˝ (36 mm) mortise required - 5/16˝ (8 mm) cutout required at top of the door, stop face only

Door Thickness:1-3/4˝ (44 mm) minimum

Fluid:All Weather Fluid

Fasteners:Wood and Machine Screw Pack

Warranty:15 years

Model: LCN 2016 H LH AL, 2016 H RH AL
