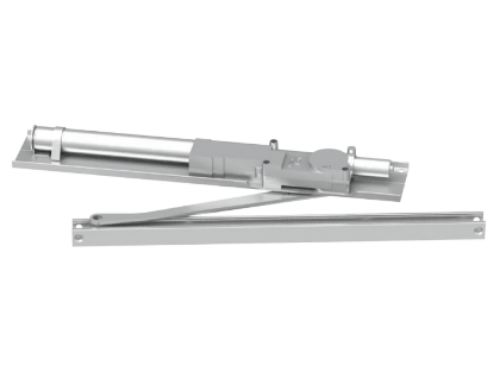

LCN 2032 STD Concealed in frame (tube) Closer - Size 2

LCN 2032 STD Concealed in frame (tube) Closer  - Size 2

Size 2: Interior door width - 28" (711mm) to 34˝ (864mm)

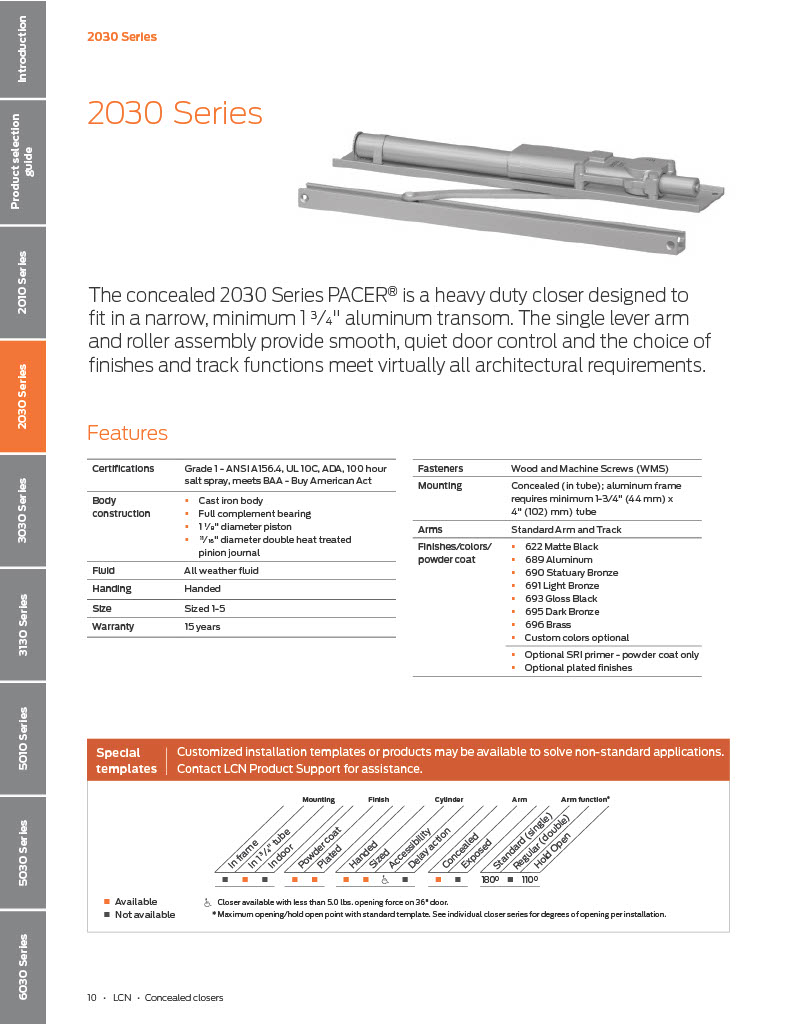

LCN 2030 Series:Single acting Cast iron cylinder assembly concealed in head frame with mounting plate. Concealed arm and track in door top rail.

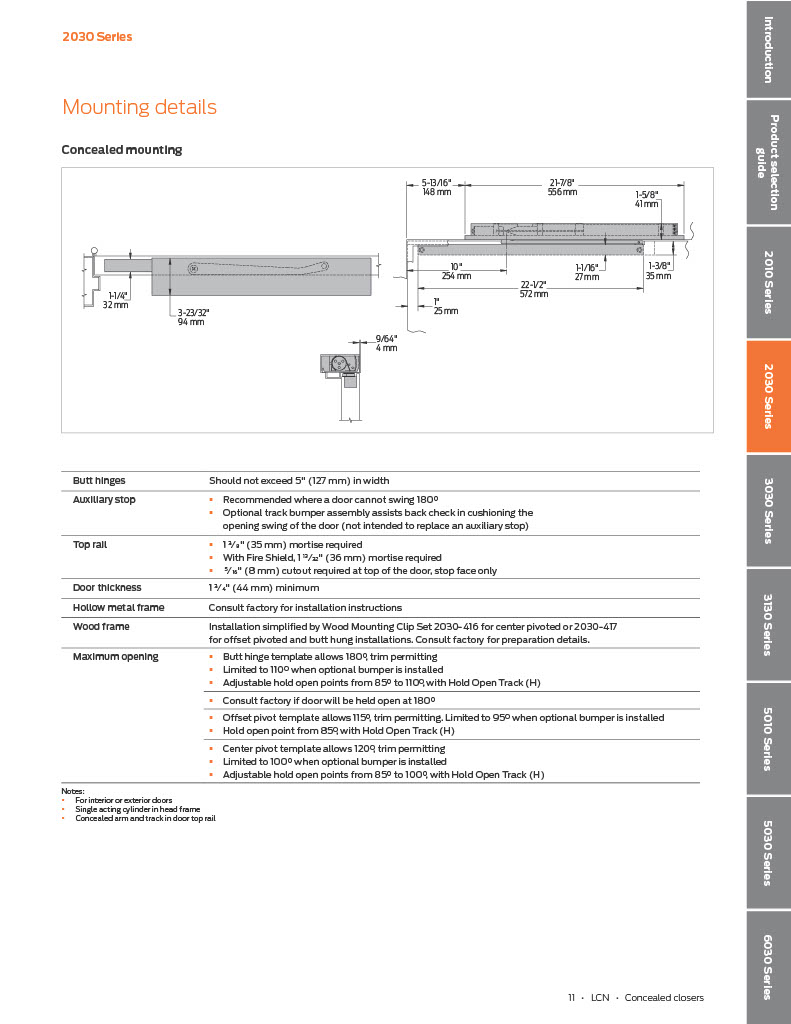

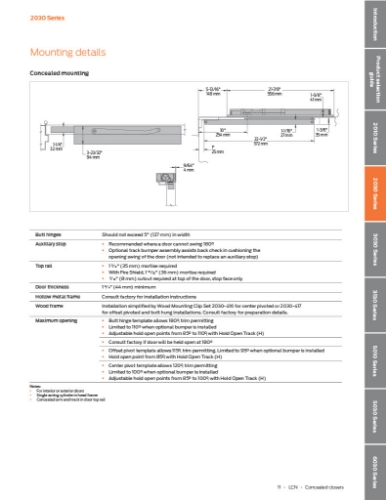

Mounting:Concealed (in tube); aluminum frame requires minimum 1-3/4˝ (44 mm) x 4˝ (102) mm) tube

Door Thickness:1 3/4" (44 mm) minimum.

Handing:Handed for right or left swinging doors Body Construction: Cast Iron Body - Full Complement Bearing - 1 1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Certifications Grade:1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

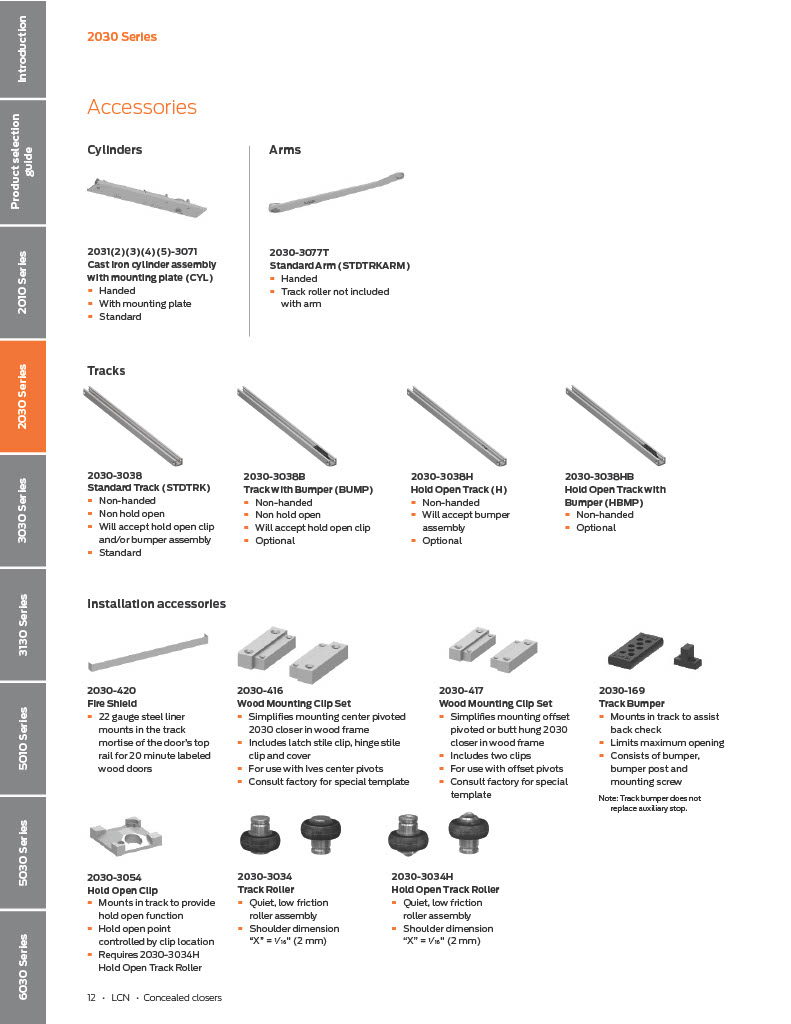

Packaging:Standard 2030 series closer shipped with standard arm, standard track, mounting/finish plate, and wood and machine screw pack

Finish:ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695).

Model:LCN, 2030, 2032, 2032ALUM, 2032689, 2032RH, 2032RHALUM, 2032LH, 2032LHALUM, 2032ALUMRH, 2032ALUMLH
