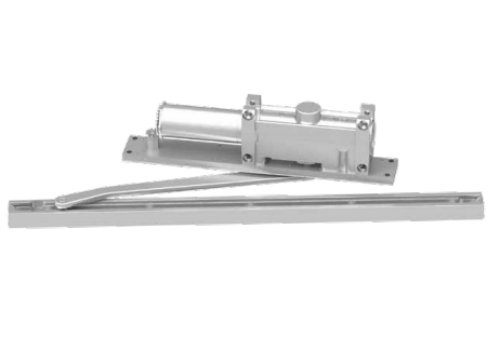

LCN 2213-STD AL High Security Concealed in frame Door Closer - Aluminum - Size 3

LCN 2213 AL High Security Concealed in frame Door Closer - Aluminum - Size 3

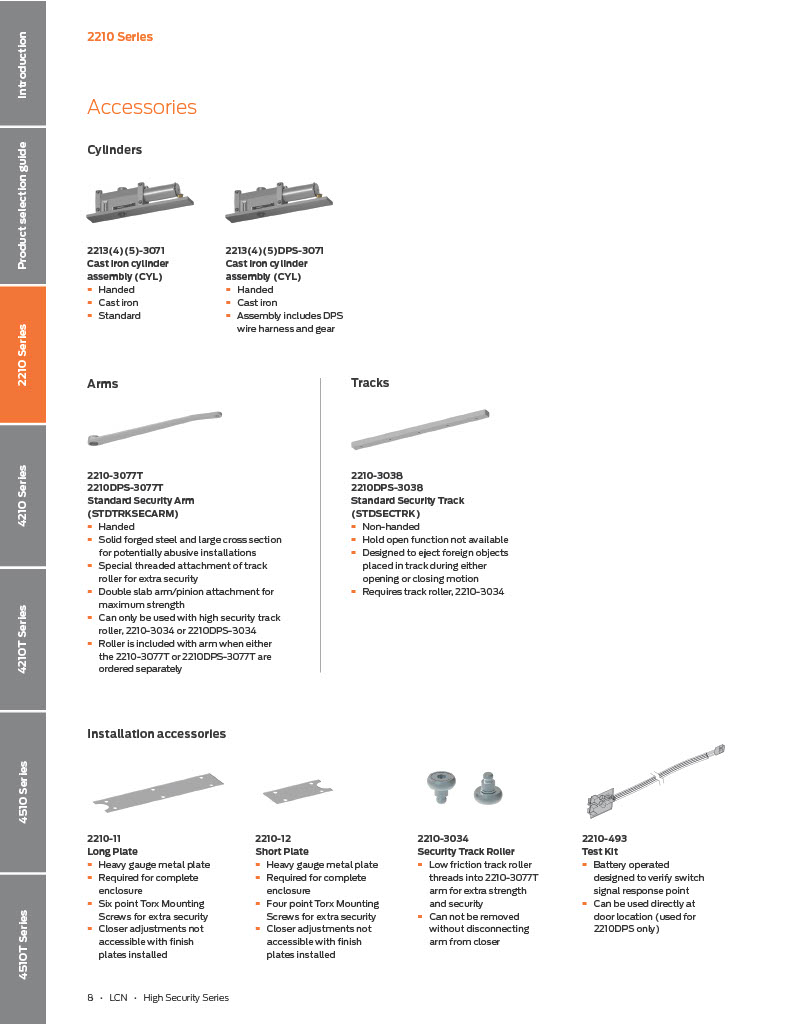

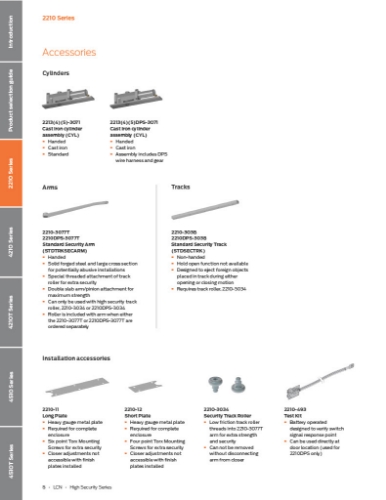

Closer will be shipped with: - Standard cylinder - Finish plate - Standard security arm - Security track roller - Security track - Torx machine screw pack.

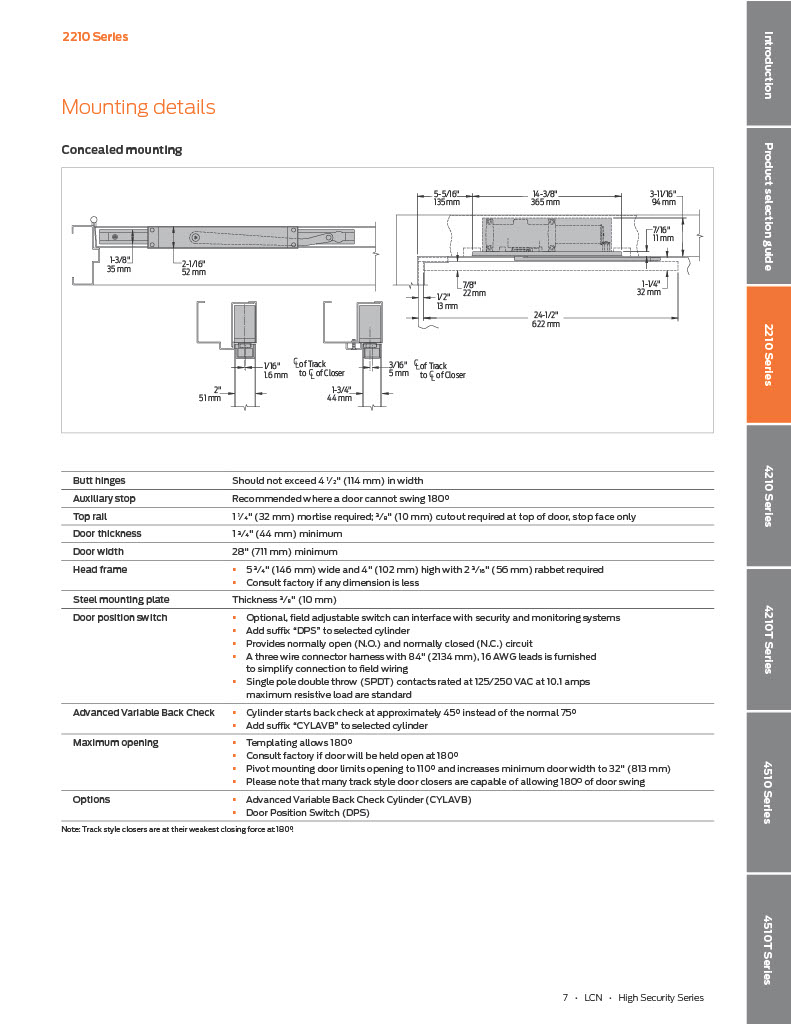

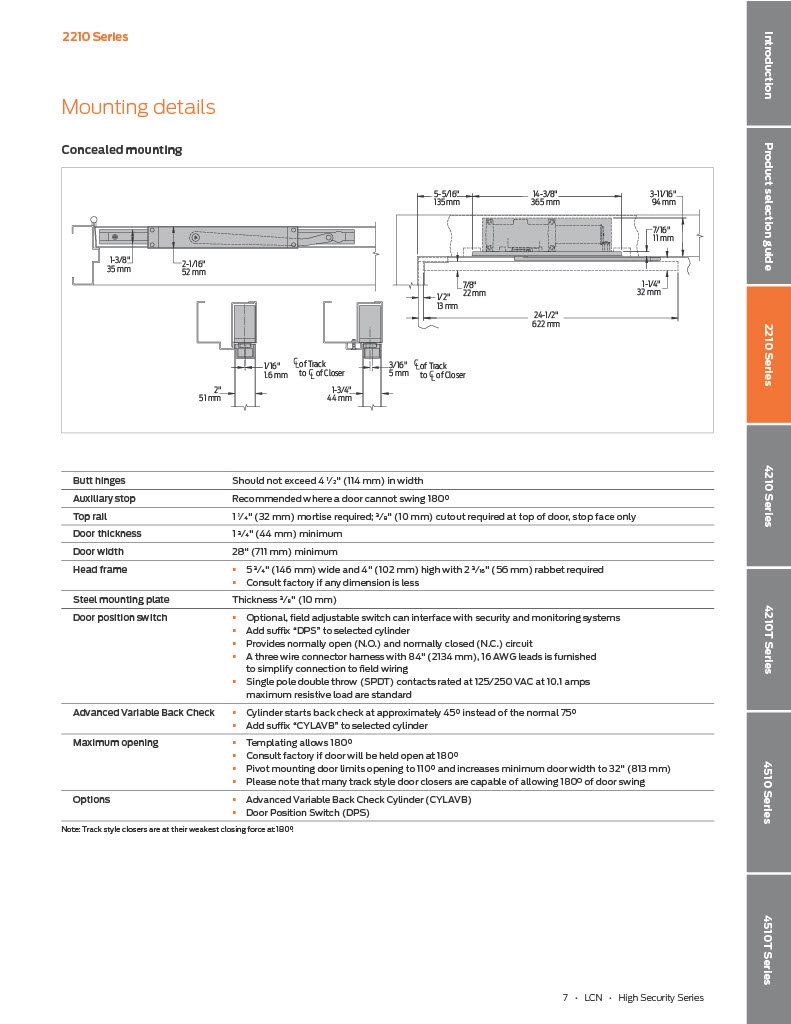

Mounting:single acting cylinder in head frame, arm and track in top rail of door

Body Construction:Cast Iron Body, Full Complement Bearing, 1-1/2˝ Diameter Piston, 11/16˝ Diameter Double Heat Treated Pinion Journal

Arms:Standard security arm and security track

Top Rail:1-1/4˝ (32 mm) mortise required. 3/8˝ (10 mm) cutoutrequired attop of door, stop face only

Door Thickness:1-3/4˝ (44 mm) minimum

Door Width:28˝ (711 mm) minimum

Head Frame:5-3/4˝ (146 mm) wide and 4˝ (102 mm) high with 2-3/16˝ (56 mm)rabbetrequired

Steel Mounting Plate:Thickness 3/8˝ (10 mm)

Fluid:All Weather Liquid X Fluid

Cover:Metal, standard

Fasteners:TORX machine screw pack

Warranty:15 years

Model: LCN 2213 STD LH AL, 2213 STD RH AL
