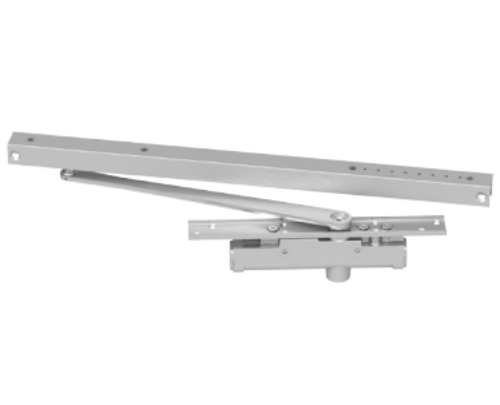

LCN 3131H Concealed (in door) Door Closer W/Hold Open Arm, Size 1 - ADA

LCN 3131H Concealed (in door) Door Closer with Hold Open Arm, Size 1 for ADA applications

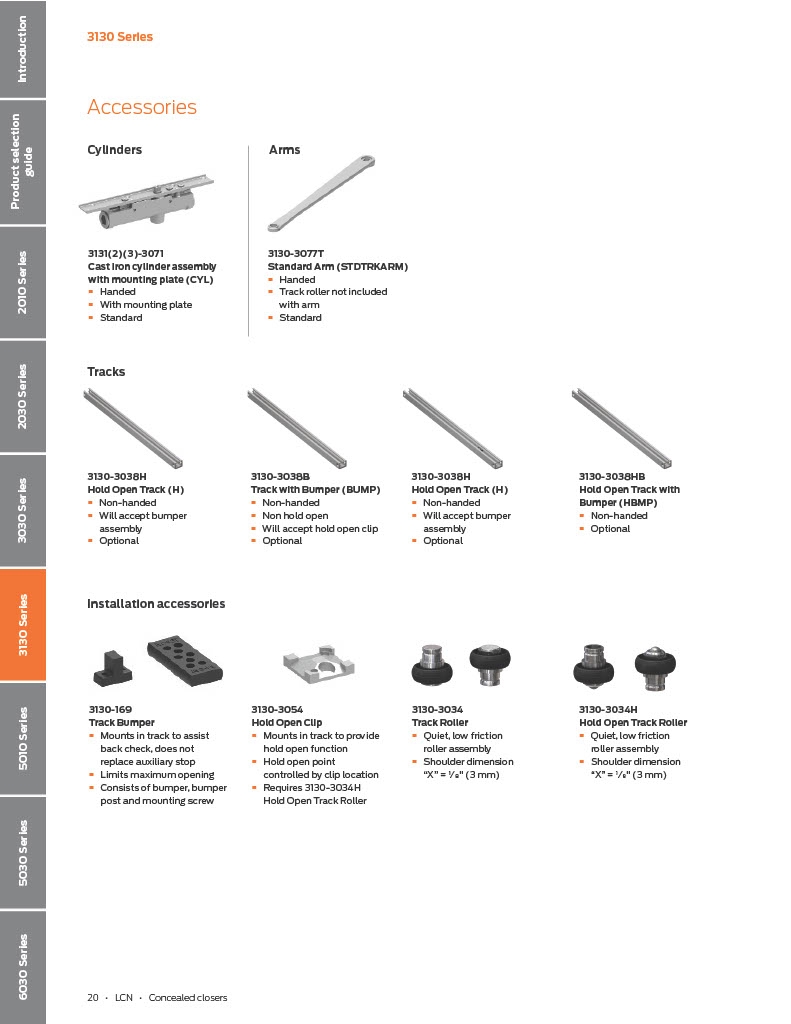

Hold-Open Clip Mounts in track to provide hold-open function - Hold-open point controlled by clip location

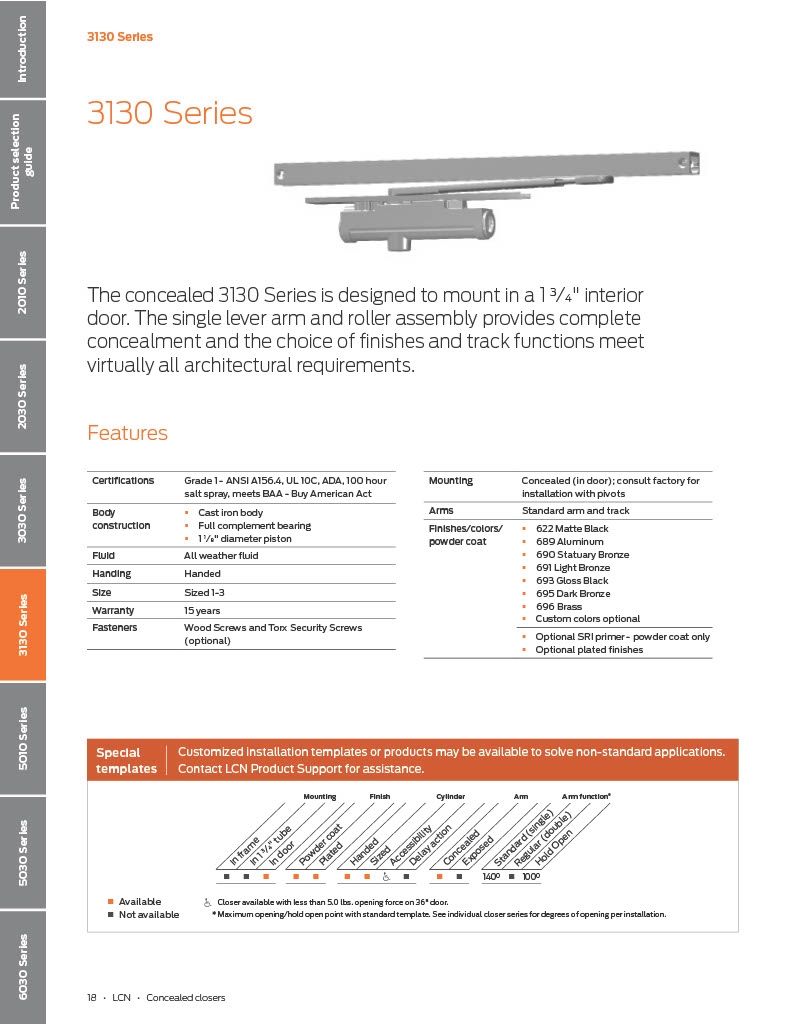

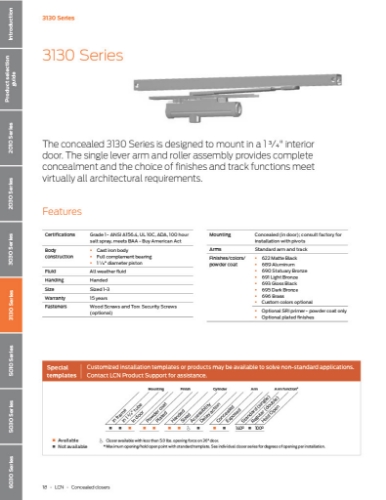

LCN 3130 Series:Single acting Cast iron cylinder and standard arm concealed in top rail of door. Concealed track in head frame.

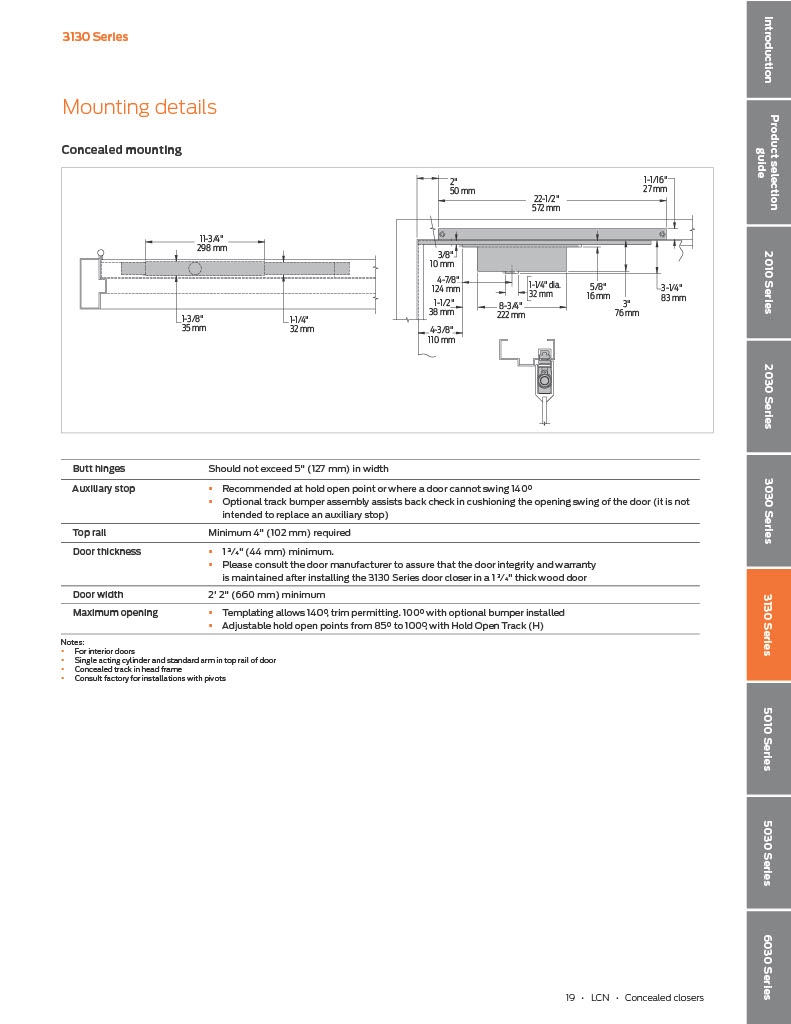

Door Thickness:1 3/4" (44 mm) minimum. Door Width: 2'2" (660 mm) minimum. Top Rail: minimum 4" (102 mm) required.

Handing:Handed for right or left swinging doors

CAUTION !Any manual door closer, including those certified by BHMA to conform to ANSI Standard A156.4, that is selected, installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.

Features and Benefits*UL and cUL*listed without hold-open for self-closing doors  Tested and certified under ANSI Standard A156.4, grade one

Packaging:Standard 3130 series closer shipped with standard arm, standard track and wood and machine screw pack

Finish:ALUM - ALUMINUM (BHMA 689), DKBRZ - DARK BRONZE (BHMA 695)

Model:LCN, 3130, 3131H, 3131HALUM, 3131H689, 3131HRH, 3131HRHALUM, 3131HLH, 3131HLHALUM, 3131HALUMRH, 3131HALUMLH, 3131HDKBR, 3131H695, 3131HRHDKBR, 3131HLHDKBR, 3131HDKBRRH, 3131HDKBRLH
