LCN 3132 Concealed (in door) Door Closer, Size 2

LCN 3132 Concealed*(in door)*Door Closer, Size 2

Size 2: Interior door width - 28" (711mm)  to 34˝ (864mm)

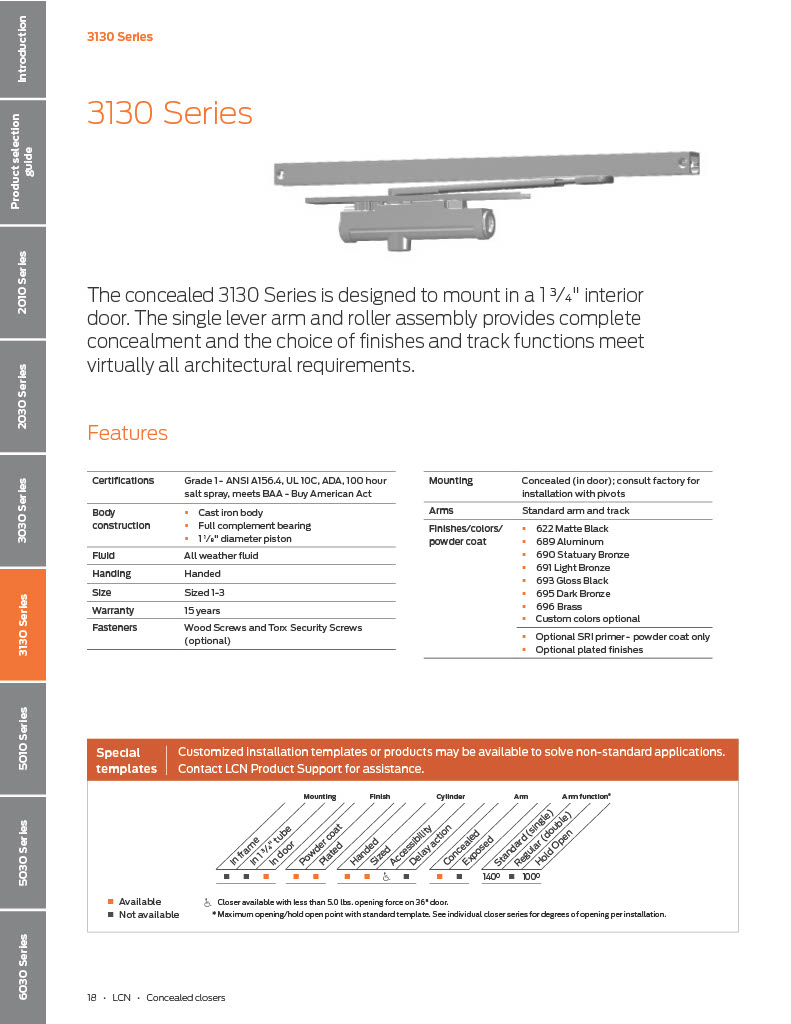

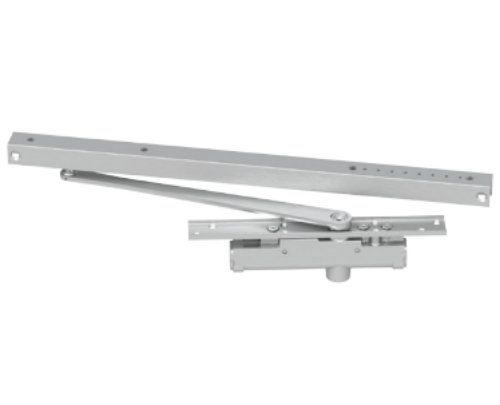

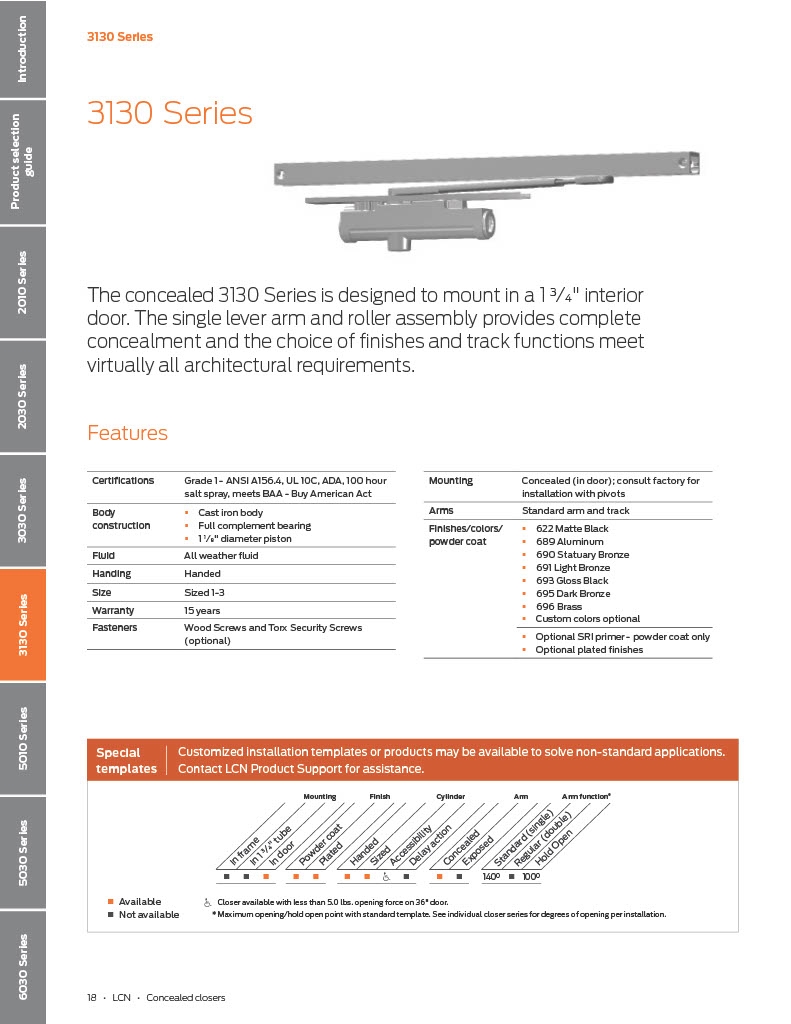

LCN 3130 Series:Single acting Cast iron cylinder and standard arm concealed in top rail of door. Concealed track in head frame.

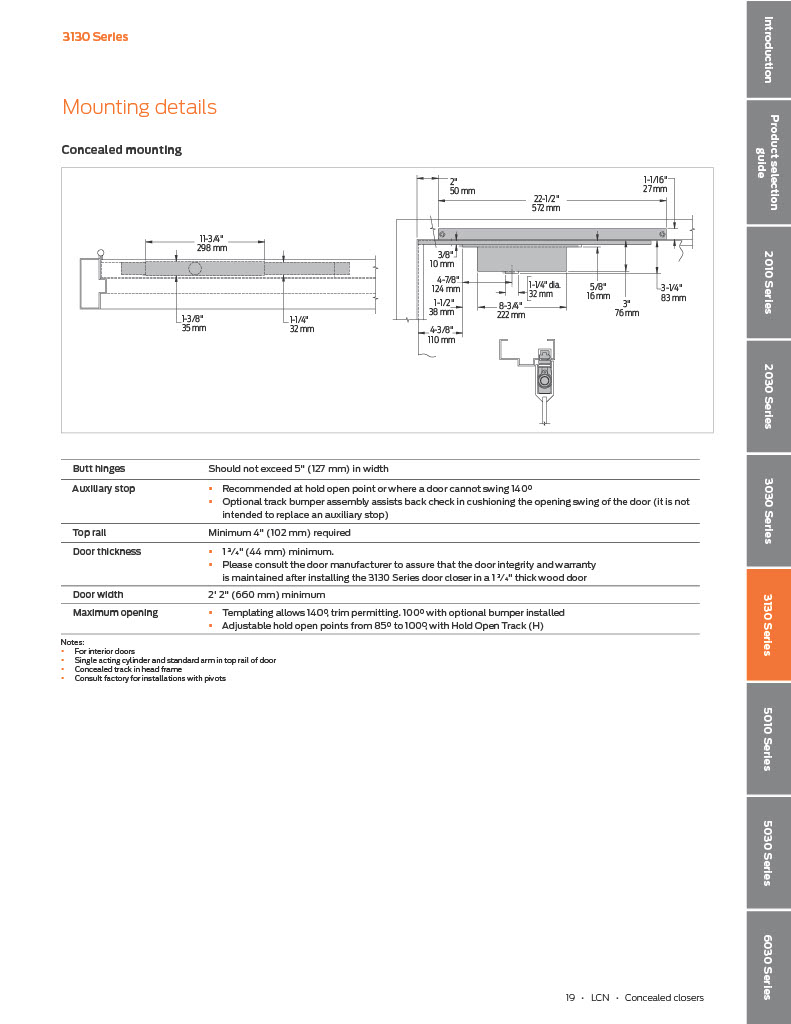

Door Thickness:1 3/4" (44 mm) minimum. Door Width: 2,2" (660 mm) minimum. Top Rail: minimum 4" (102 mm) required.

Handing:Handed for right or left swinging doors

Features and Benefits*UL and cUL*listed without hold-open for self-closing doors  Tested and certified under ANSI Standard A156.4, grade one

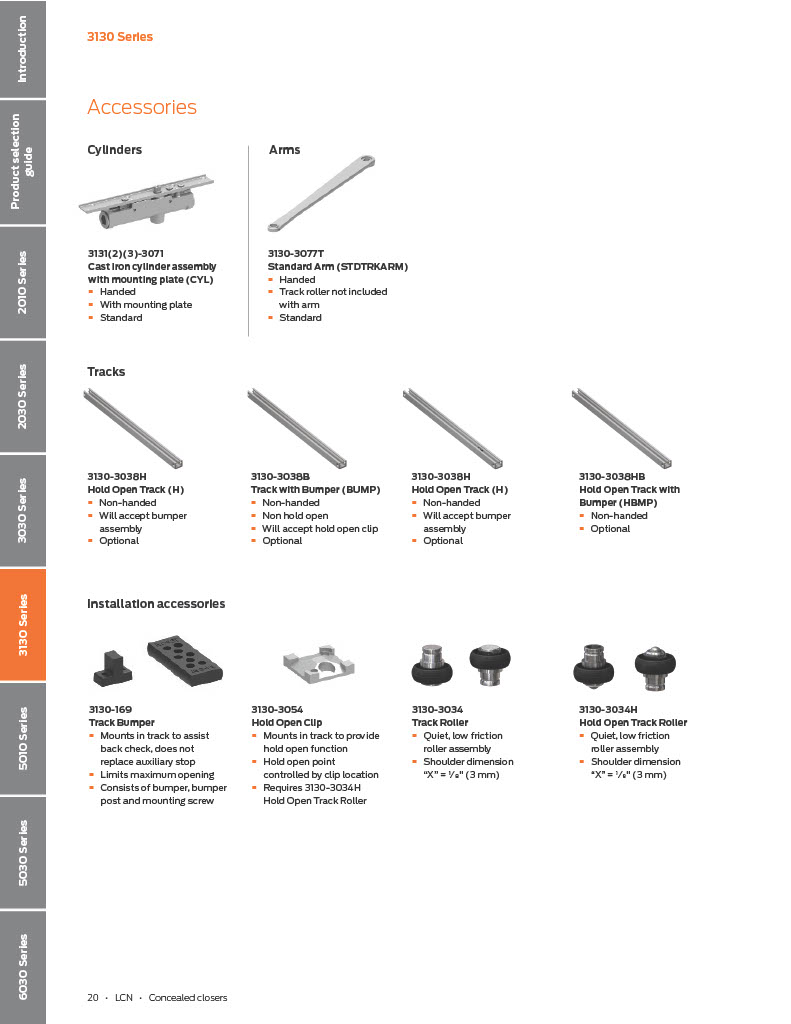

Packaging:Standard 3130 series closer shipped with standard arm, standard track and wood and machine screw pack

Finish:ALUM - ALUMINUM (BHMA 689)

Model:LCN, 3130, 3132, 3132ALUM, 3132689, 3132RH, 3132RHALUM, 3132LH, 3132LHALUM, 3132ALUMRH, 3132ALUMLH
