Door Closers
Overhead Concealed Closers
LCN 5010 Series Concealed Closer
LCN 5012 REG Concealed (in frame) Door Closer - Size 2

LCN 5012 REG Concealed (in frame) Door Closer - Size 2

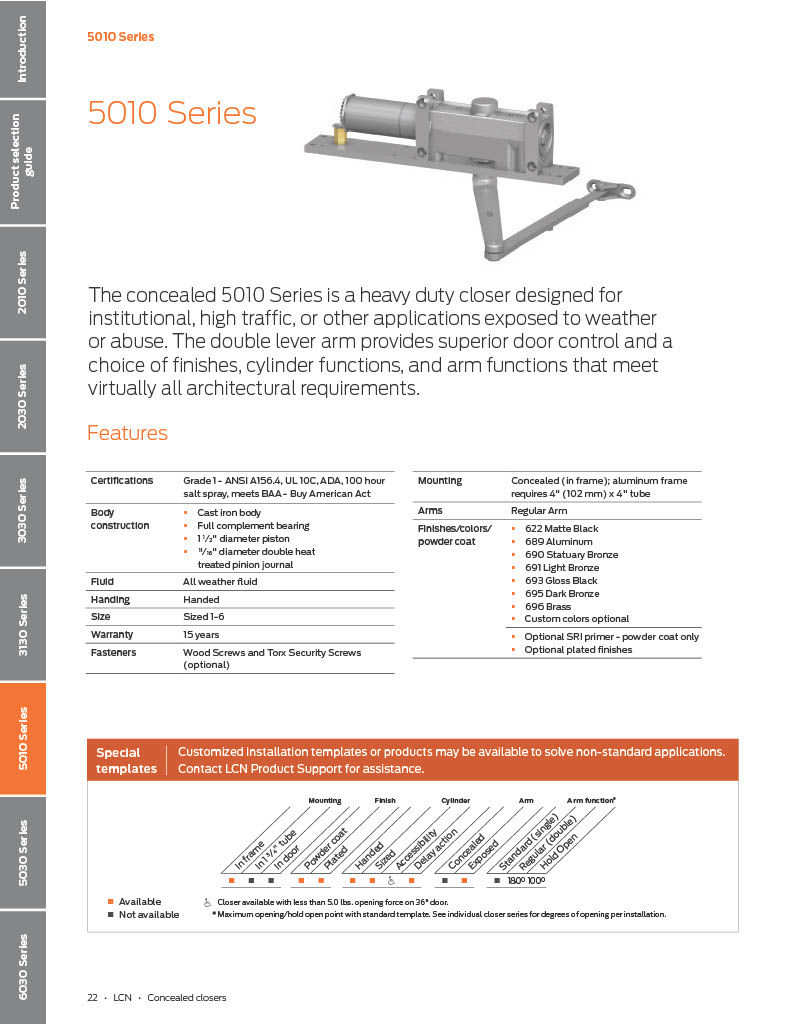

1-Page22-LCN-CON

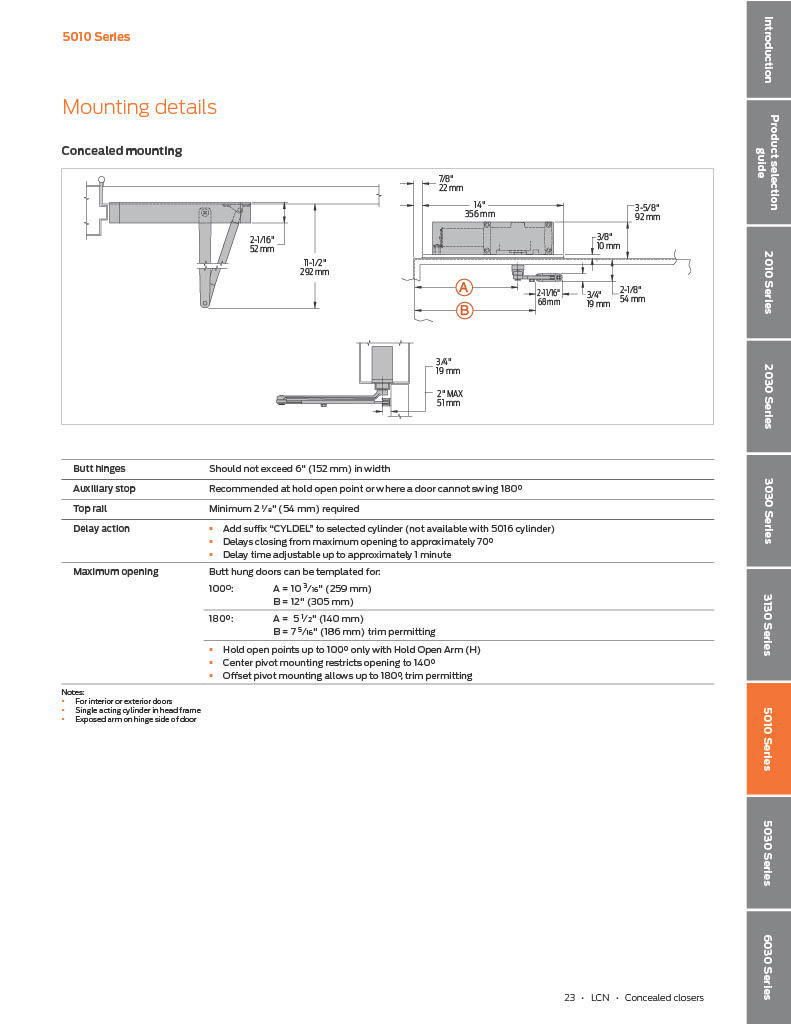

1-Page23-LCN-CON

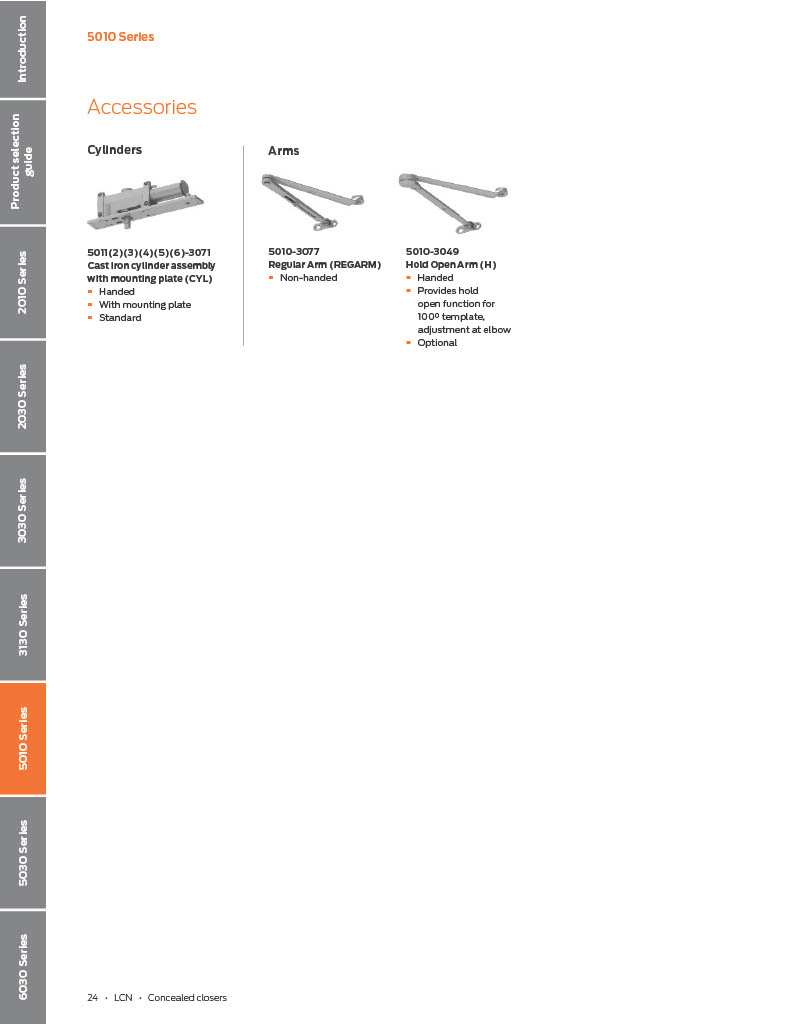

1-Page24-LCN-CON

Product Details

LCN 5012 Concealed (in frame) Door Closer - Size 2

Size 2:for**Interior door width 24" (610 mm)to 34" (864 mm)

Body Construction:Cast Iron Body - Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

Mounting:Concealed (in frame); aluminum frame requires 4˝ (102 mm) x 4˝ tube

Top Rail:Minimum 2-1/8˝ (54 mm)required

Certifications: Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 5012-REG LH AL, 5012REGLHAL, 5012LHAL, 5012LH689, 5012ALLH, 5012-REG RH AL, 5012REGRHAL, 5012RHAL, 5012RH689, 5012ALRH

LCN 5012 REG Concealed (in frame) Door Closer - Size 2

SKU: 5012-REG

In Stock

$617.59

About this item

The concealed 5010 Series is a heavy duty closer designed for institutional, high traffic, or other applications exposed to weather or abuse. The double lever arm provides superior door control and a choice of finishes, cylinder functions, and arm functions that meet virtually all architectural requirements.

Resources

LCN 5010 Full Catalog

LCN 5012 Concealed (in frame) Door Closer - Size 2

Size 2:for**Interior door width 24" (610 mm)to 34" (864 mm)

Body Construction:Cast Iron Body - Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

Mounting:Concealed (in frame); aluminum frame requires 4˝ (102 mm) x 4˝ tube

Top Rail:Minimum 2-1/8˝ (54 mm)required

Certifications: Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 5012-REG LH AL, 5012REGLHAL, 5012LHAL, 5012LH689, 5012ALLH, 5012-REG RH AL, 5012REGRHAL, 5012RHAL, 5012RH689, 5012ALRH

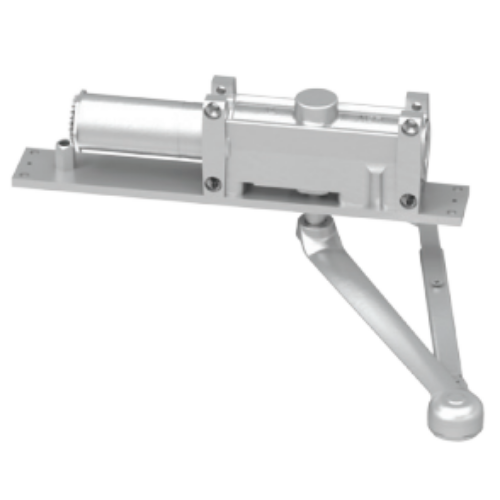

5010_1LCN

LCN 5012 REG Concealed (in frame) Door Closer - Size 2

Product code: 5012-REG

In Stock

$918.00

$617.59

5010_1LCN

LCN 5012 REG Concealed (in frame) Door Closer - Size 2

Product code: 5012-REG

In Stock

$918.00

$617.59
