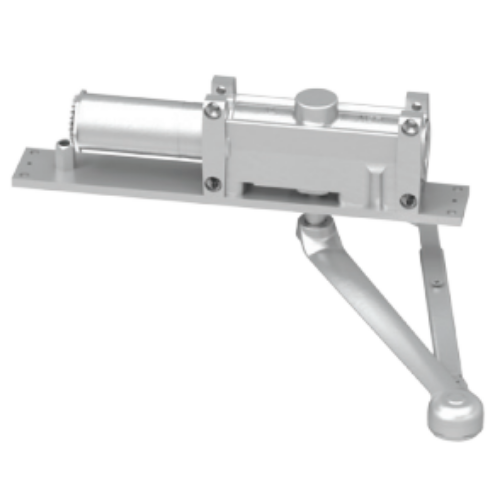

LCN 5013 REG Concealed (in frame) Door Closer - Size 3

Product Details

LCN 5013 Concealed (in frame) Door Closer - Size 3

Size 3:for Interior door width 34" (864 mm) to 38" (965 mm), Exterior (and Vestibule) door 24" (610 mm) to 30" (762 mm)

Body Construction:Cast Iron Body -  Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

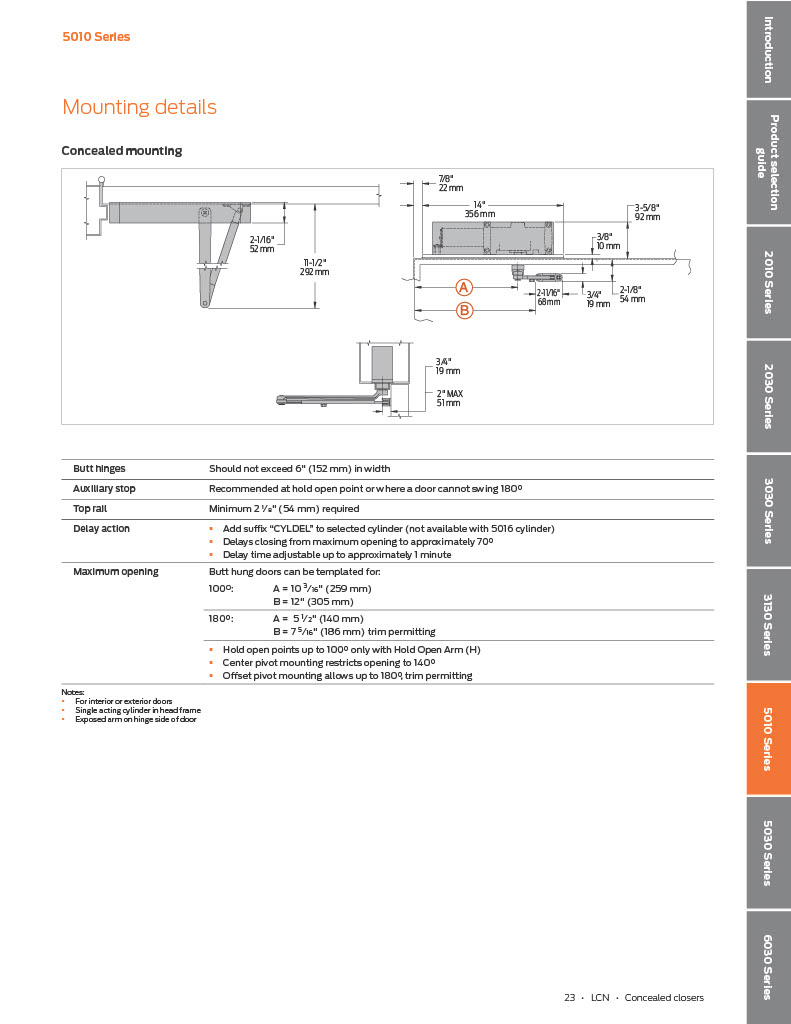

Mounting:Concealed (in frame); aluminum frame requires 4˝ (102 mm) x 4˝ tube

Top Rail:Minimum 2-1/8˝ (54 mm) required

Certifications:  Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 5013-REG LH AL, 5013REGLHAL, 5013LHAL, 5013LH689, 5013ALLH, 5013-REG RH AL, 5013REGRHAL, 5013RHAL, 5013RH689, 5013ALRH

LCN 5013 REG Concealed (in frame) Door Closer - Size 3

SKU: 5013-REG

In Stock

Finish *

ALUM - ALUMINUM (BHMA 689)
ALUM - ALUMINUM (BHMA 689)

Handing *

$617.24

About this item

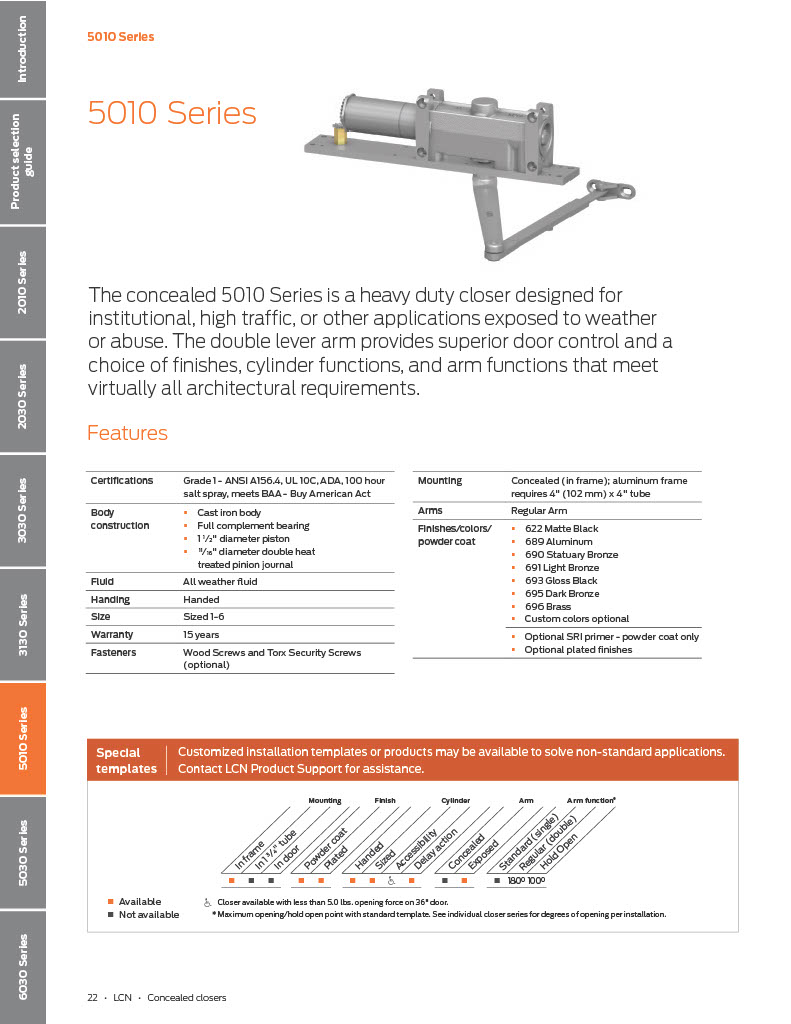

The concealed 5010 Series is a heavy duty closer designed for institutional, high traffic, or other applications exposed to weather or abuse. The double lever arm provides superior door control and a choice of finishes, cylinder functions, and arm functions that meet virtually all architectural requirements.





LCN 5013 Concealed (in frame) Door Closer - Size 3

Size 3:for Interior door width 34" (864 mm) to 38" (965 mm), Exterior (and Vestibule) door 24" (610 mm) to 30" (762 mm)

Body Construction:Cast Iron Body -  Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

Mounting:Concealed (in frame); aluminum frame requires 4˝ (102 mm) x 4˝ tube

Top Rail:Minimum 2-1/8˝ (54 mm) required

Certifications:  Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 5013-REG LH AL, 5013REGLHAL, 5013LHAL, 5013LH689, 5013ALLH, 5013-REG RH AL, 5013REGRHAL, 5013RHAL, 5013RH689, 5013ALRH

5010_1LCN
LCN 5013 REG Concealed (in frame) Door Closer - Size 3

Product code: 5013-REG

In Stock

$918.00

$617.24

5010_1LCN
LCN 5013 REG Concealed (in frame) Door Closer - Size 3

Product code: 5013-REG

In Stock

$918.00

$617.24
