LCN 5014 REG Concealed (in frame) Door Closer - Size 4

Product Details

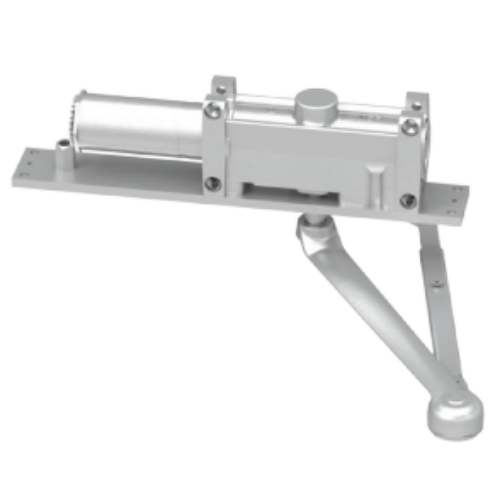

LCN 5014 Concealed (in frame) Door Closer - Size 4

Size 4:for Interior door width 38" (965 mm) to 48" (1219 mm), Exterior (and Vestibule) door 30" (762 mm) to 36" (914 mm)

Body Construction:Cast Iron Body -  Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

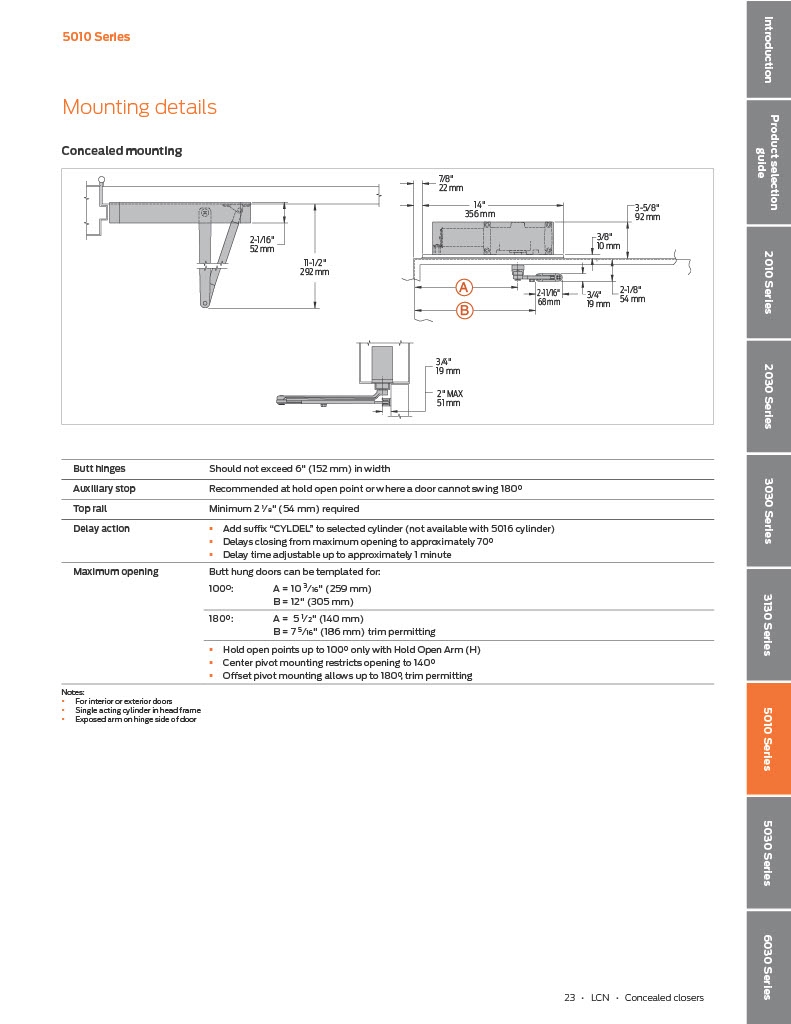

Mounting:Concealed (in frame); aluminum frame requires 4˝ (102 mm) x 4˝ tube

Top Rail:Minimum 2-1/8˝ (54 mm) required

Certifications:  Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 5014-REG LH AL, 5014REGLHAL, 5014LHAL, 5014LH689, 5014ALLH, 5014-REG RH AL, 5014REGRHAL, 5014RHAL, 5014RH689, 5014ALRH

LCN 5014 REG Concealed (in frame) Door Closer - Size 4

SKU: 5014-REG

In Stock

Finish *

ALUM - ALUMINUM (BHMA 689)
ALUM - ALUMINUM (BHMA 689)

Handing *

$617.59

About this item

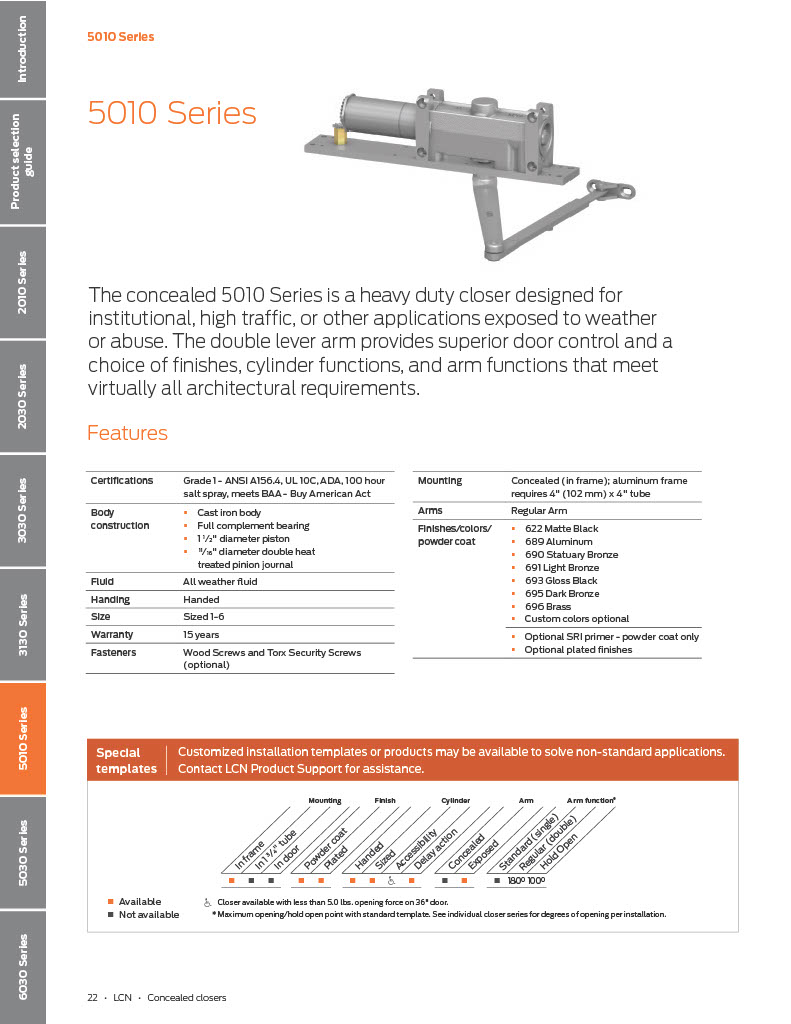

The concealed 5010 Series is a heavy duty closer designed for institutional, high traffic, or other applications exposed to weather or abuse. The double lever arm provides superior door control and a choice of finishes, cylinder functions, and arm functions that meet virtually all architectural requirements.





LCN 5014 Concealed (in frame) Door Closer - Size 4

Size 4:for Interior door width 38" (965 mm) to 48" (1219 mm), Exterior (and Vestibule) door 30" (762 mm) to 36" (914 mm)

Body Construction:Cast Iron Body -  Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

Mounting:Concealed (in frame); aluminum frame requires 4˝ (102 mm) x 4˝ tube

Top Rail:Minimum 2-1/8˝ (54 mm) required

Certifications:  Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 5014-REG LH AL, 5014REGLHAL, 5014LHAL, 5014LH689, 5014ALLH, 5014-REG RH AL, 5014REGRHAL, 5014RHAL, 5014RH689, 5014ALRH

5010_1LCN
LCN 5014 REG Concealed (in frame) Door Closer - Size 4

Product code: 5014-REG

In Stock

$918.00

$617.59

5010_1LCN
LCN 5014 REG Concealed (in frame) Door Closer - Size 4

Product code: 5014-REG

In Stock

$918.00

$617.59
