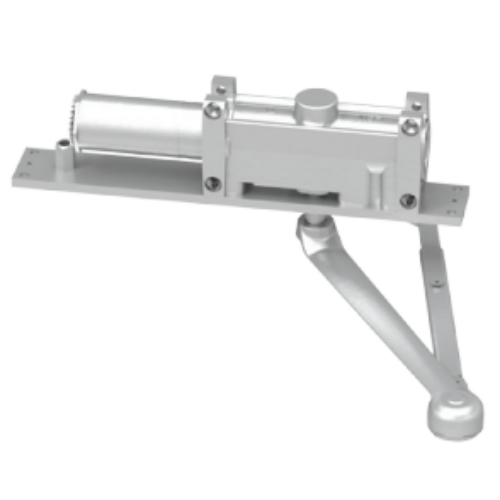

LCN 5015 REG Concealed (in frame) Door Closer - Size 5

LCN 5015 Concealed (in frame) Door Closer - Size 5

Size 5:for Interior door width 48" (1219 mm) to 54" (1372 mm), Exterior (and Vestibule) door 36" (914 mm) to 42" (1067 mm)

Body Construction:Cast Iron Body -  Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

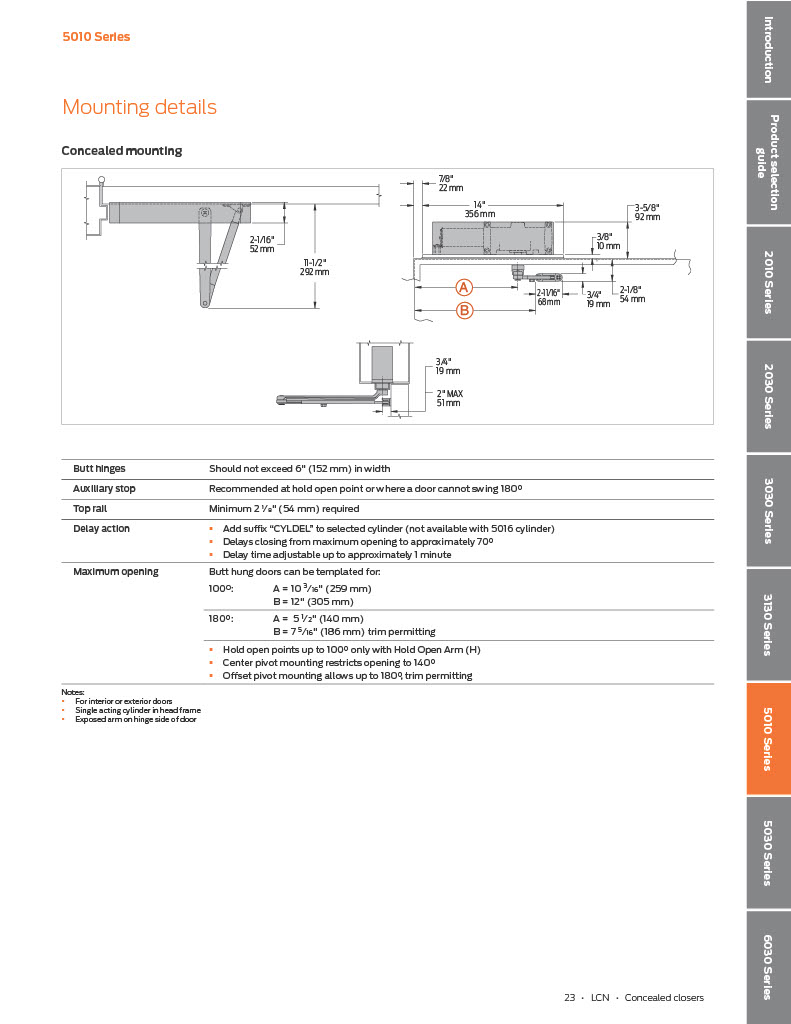

Mounting:Concealed (in frame); aluminum frame requires 4˝ (102 mm) x 4˝ tube

Top Rail:Minimum 2-1/8˝ (54 mm) required

Certifications:  Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 5015-REG LH AL, 5015REGLHAL, 5015LHAL, 5015LH689, 5015ALLH, 5015-REG RH AL, 5015REGRHAL, 5015RHAL, 5015RH689, 5015ALRH
