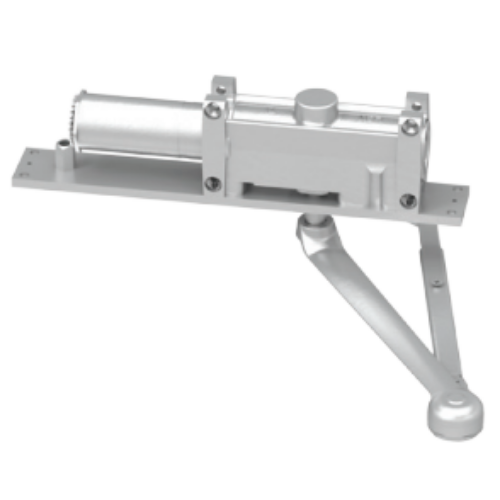

LCN 5016 REG Concealed (in frame) Door Closer - Size 6

LCN 5016 Concealed (in frame) Door Closer - Size 6

Size 6:for Interior door width 42 (1067mm) to 48" (1219 mm), Exterior (and Vestibule) door 42" (1067 mm) to 48" (1219 mm)

Body Construction:Cast Iron Body -  Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

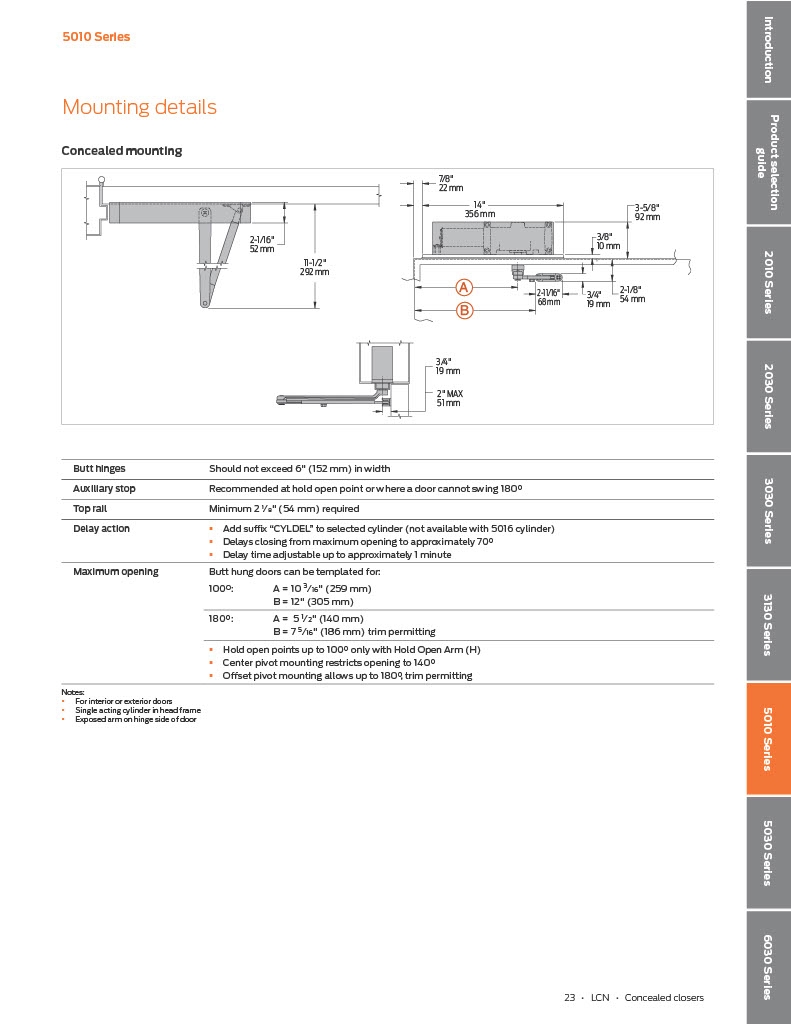

Mounting:Concealed (in frame); aluminum frame requires 4˝ (102 mm) x 4˝ tube

Top Rail:Minimum 2-1/8˝ (54 mm) required

Certifications:  Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 5016-REG LH AL, 5016REGLHAL, 5016LHAL, 5016LH689, 5016ALLH, 5016-REG RH AL, 5016REGRHAL, 5016RHAL, 5016RH689, 5016ALRH
