LCN 5035 REG Concealed (in tube) Door Closer - Size 5

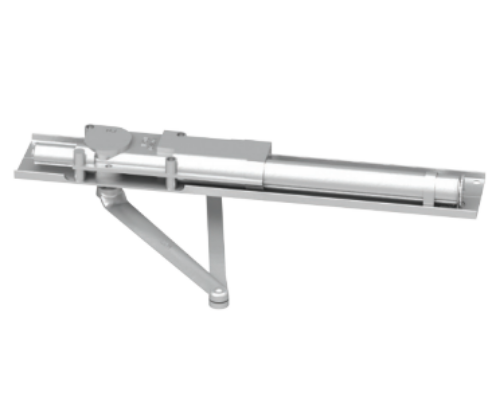

LCN 5035 Concealed (in tube) Door Closer - Size 5

Size 5: for Interior door width 48" (1219 mm) to 54" (1372 mm), Exterior (and Vestibule) door 36" (914 mm) to 42" (1067 mm)

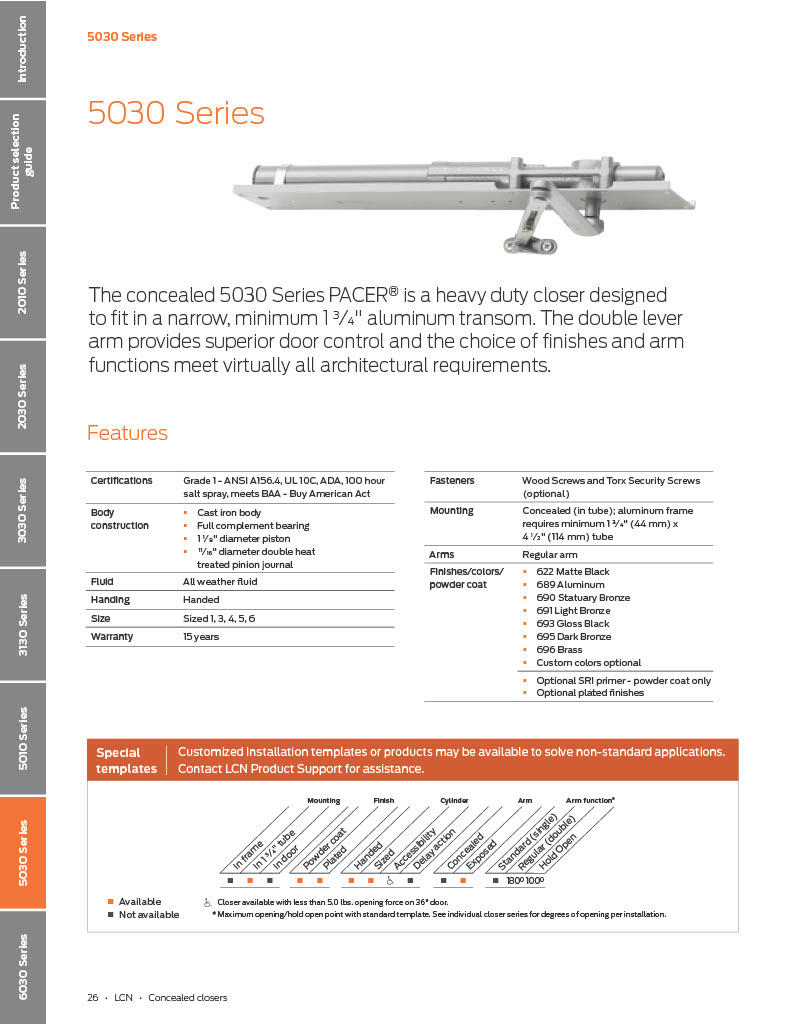

Body Construction:Cast Iron Body -  Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

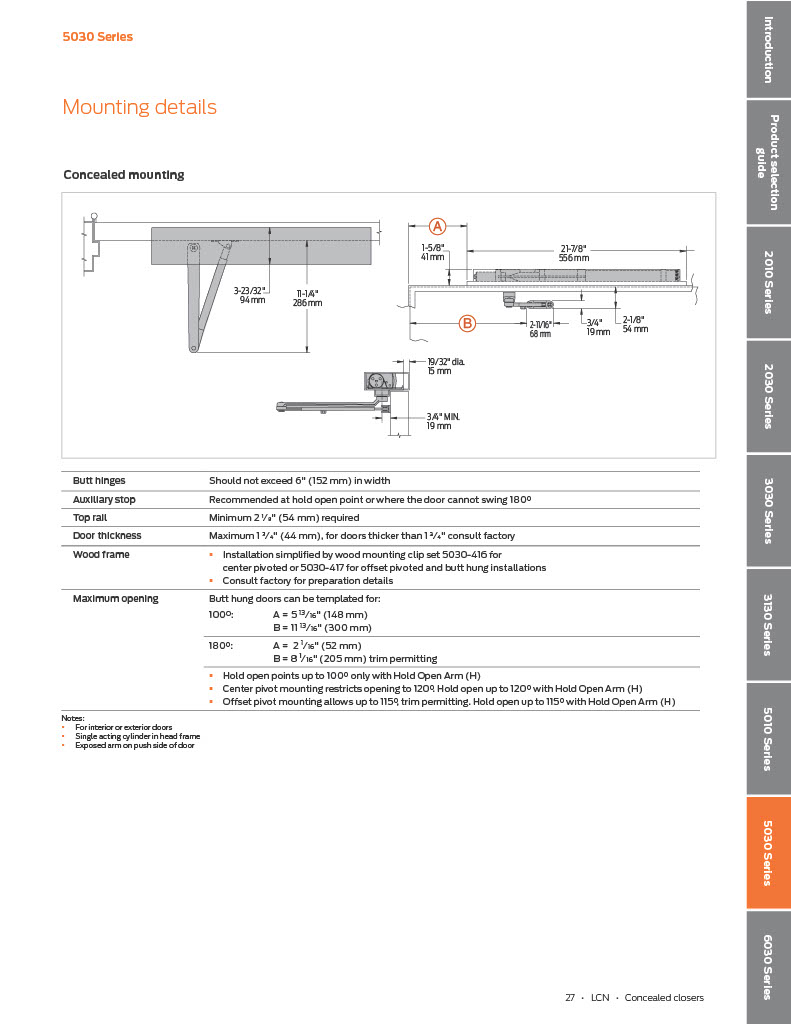

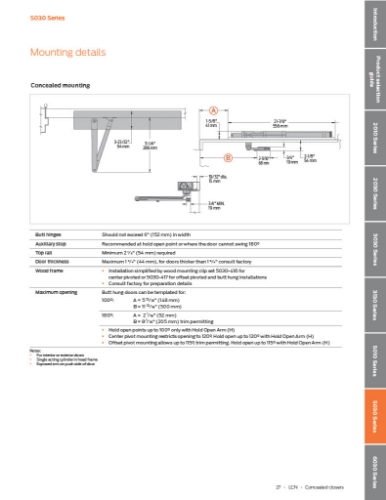

Mounting:Concealed (in tube); aluminum frame requires minimum 1-3/4˝ (44 mm) x 4-1/2˝ (114 mm) tube

Top Rail:Minimum 2-1/8˝ (54 mm)required

Door Thickness:Maximum 1-3/4˝ (44 mm),

Certifications:  Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 5035-REG LH AL, 5035REGLHAL, 5035LHAL, 5035LH689, 5035ALLH, 5035-REG RH AL, 5035REGRHAL, 5035RHAL, 5035RH689, 5035ALRH
