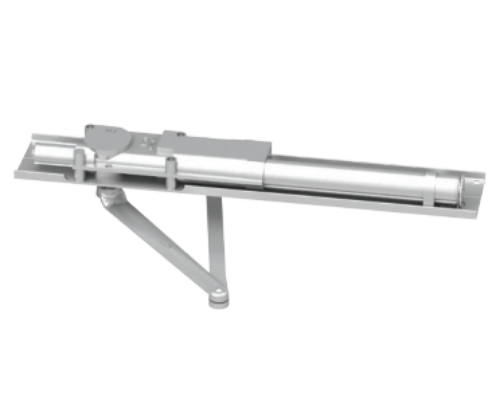

LCN 5036-H Concealed (in tube) Door Closer with Hold-Open Arm - Size 6

LCN 5036-H Concealed (in tube) Door Closer with Hold-Open Arm - Size 6

Size 6: for Interior door width 42 (1067mm) to 48" (1219 mm), Exterior (and Vestibule) door 42" (1067 mm) to 48" (1219 mm)

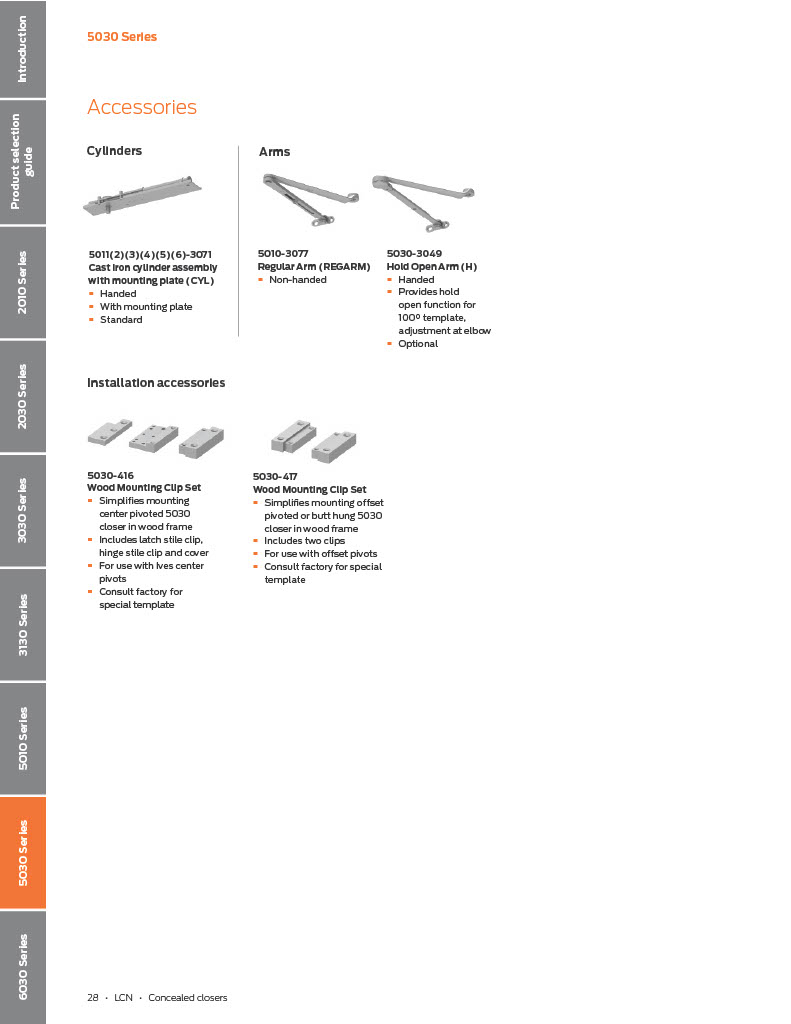

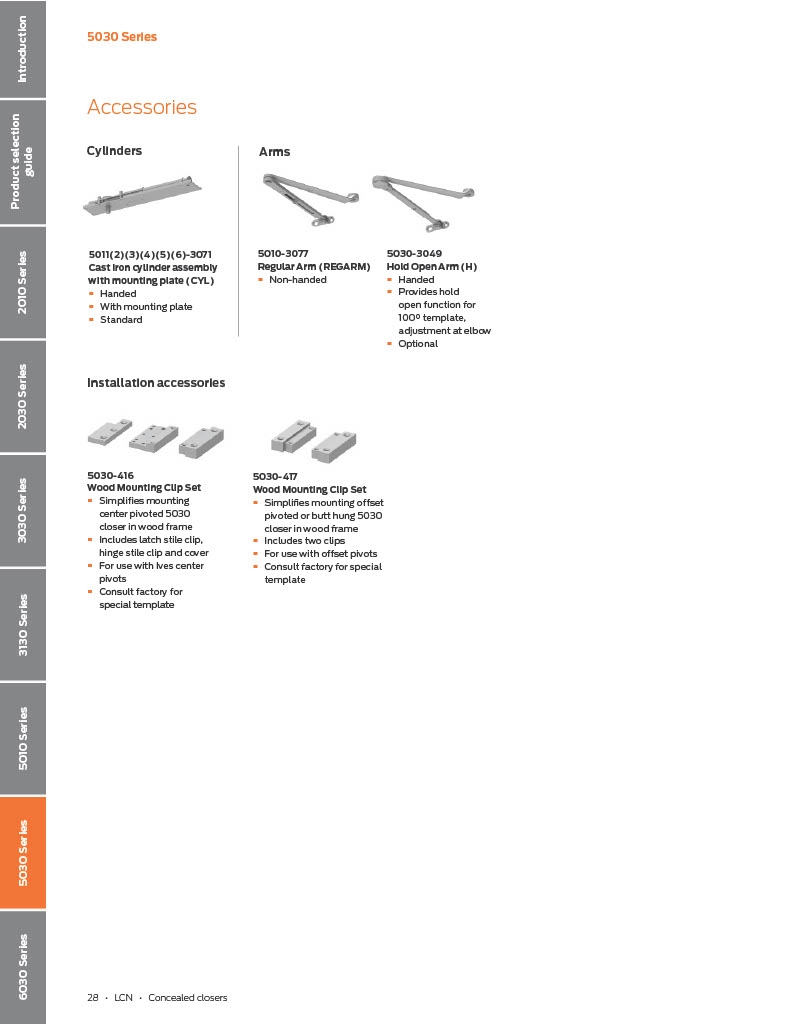

Hold Open Arm:Provides hold-open function for 100 Degree Template, adjustment at elbow

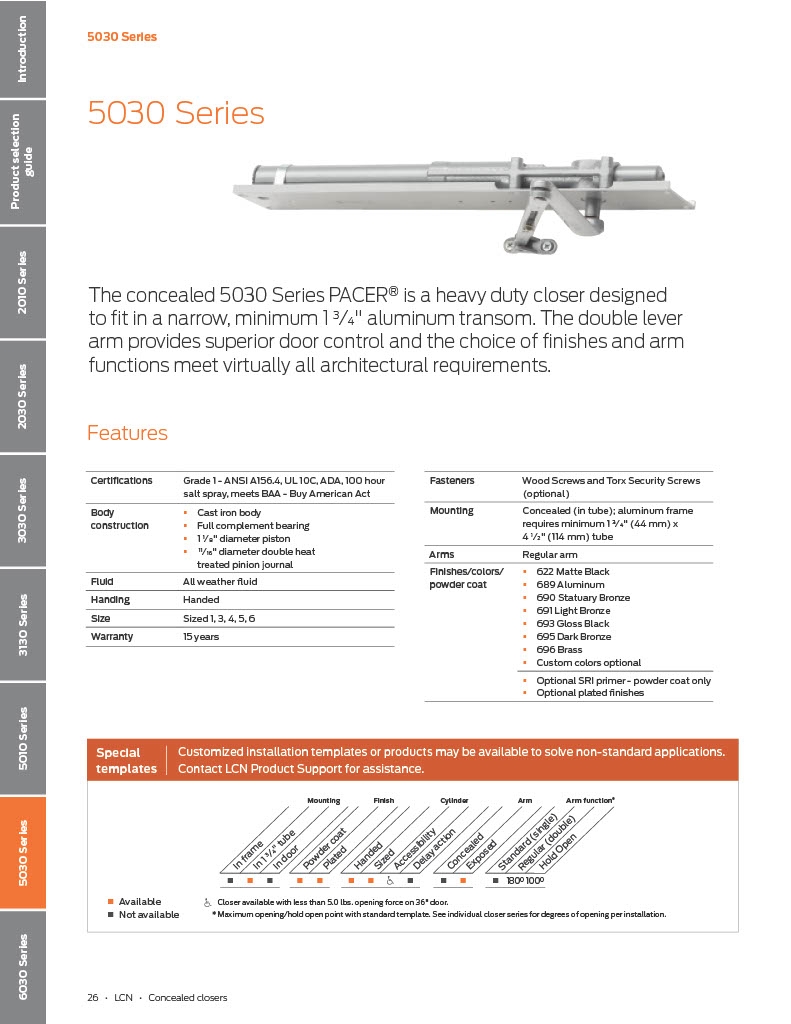

Body Construction:Cast Iron Body -  Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

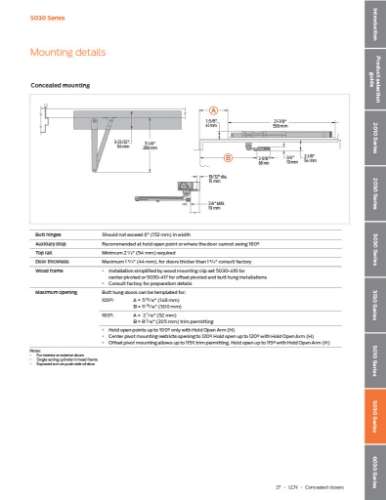

Mounting:Concealed (in tube); aluminum frame requires minimum 1-3/4˝ (44 mm) x 4-1/2˝ (114 mm) tube

Top Rail:Minimum 2-1/8˝ (54 mm)required

Door Thickness:Maximum 1-3/4˝ (44 mm),

Certifications:  Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 5036-H LH AL, 5036-HLHAL, 5036-HLHAL, 5036-HLH689, 5036-HALLH, 5036-H RH AL, 5036-HRHAL, 5036-HRHAL, 5036-HRH689, 5036-HALRH
