LCN 6034 - Bumper, Concealed (in tube) Double Acting Door Closer - Size 4

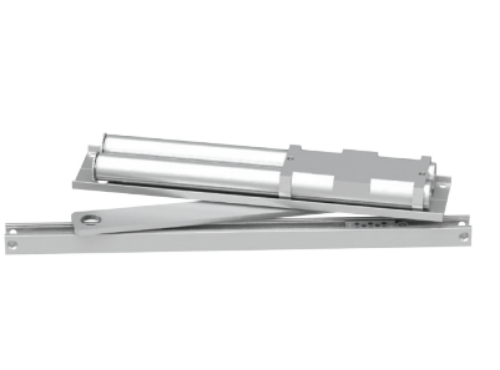

LCN 6034 Concealed (in tube) Double Acting Door Closer - Size 4

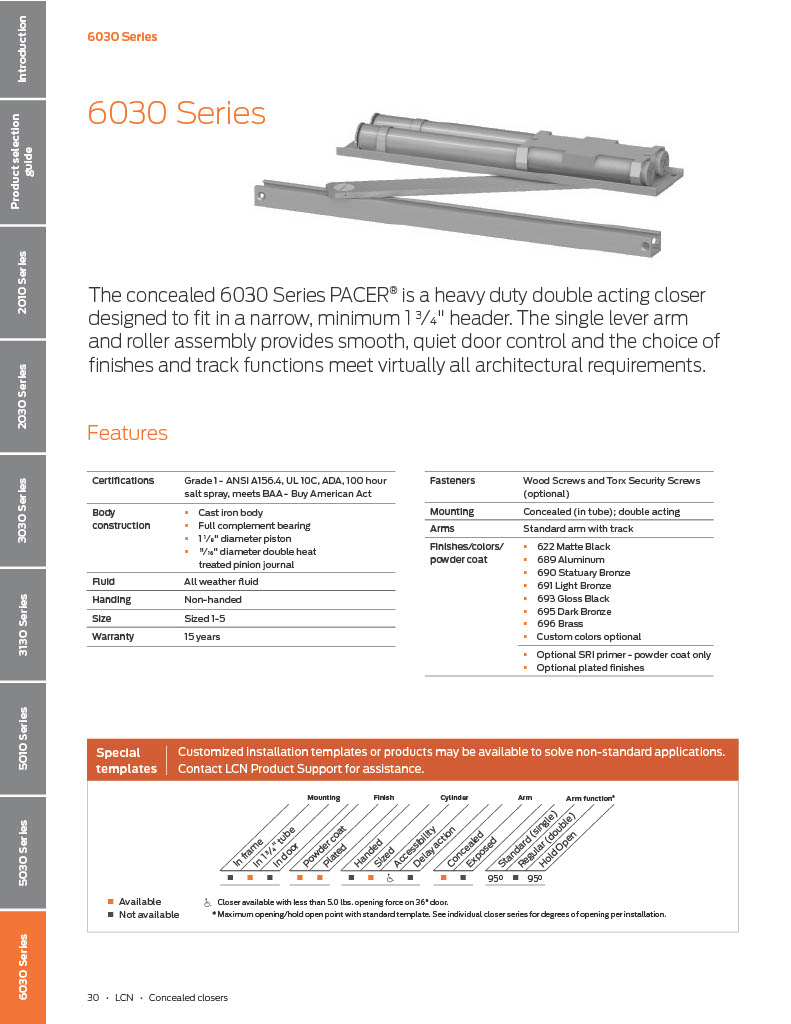

Notes:  For interior or exterior doors  Double acting cylinder in cased frame  Concealed arm and track in door top rail  Center pivots only(not included)

Size 4: Exterior (and Vestibule) door width - 34˝  (864mm) to 36" (914mm), Interior door width - 38˝ (965mm) to 48" (1219mm).

Handing:Non-Handed

Body Construction:Cast Iron Body -  Full Complement Bearing - 1-1/8˝ Diameter Piston - 11/16˝ Diameter Double Heat Treated Pinion Journal

Fluid:All Weather Fluid

Fasteners:Wood Screws

Door Width:30˝ (762 mm) minimum with 1-3/4˝ (44 mm) pivot centers

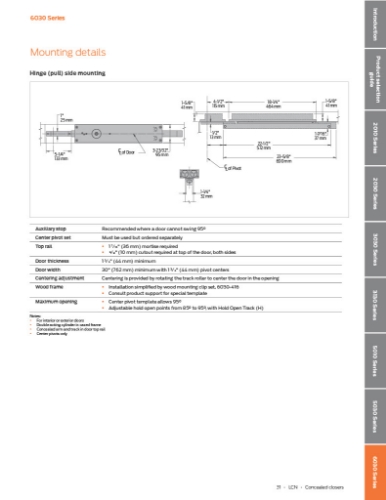

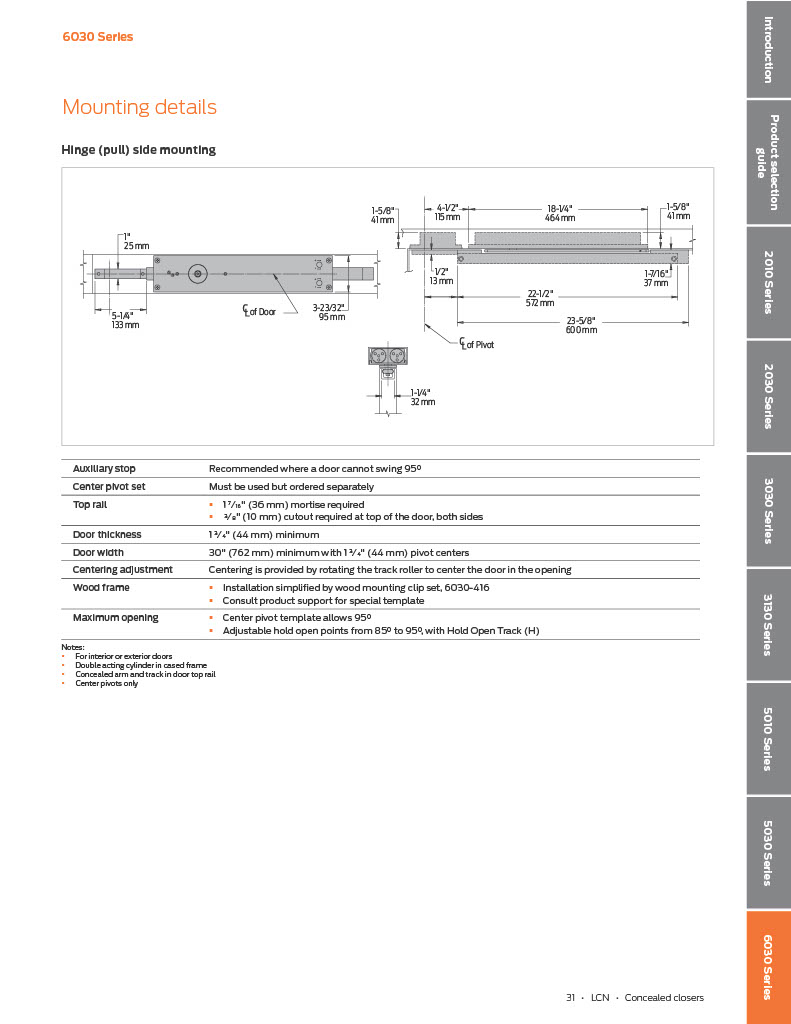

Top Rail :1-7/16˝ (36 mm) mortise required - 3/8˝ (10 mm) cutoutrequired attop ofthe door, both sides.

Door Thickness:Maximum 1-3/4˝ (44 mm),

Certifications:  Grade 1 - ANSI A156.4, UL 10 C, ADA, 100 Hour Salt Spray, Meets BAA - Buy American Act

Warranty:15 years

Model:LCN 6030, 6034-BUMPER, 6034BUMPER 6034-AL AL
