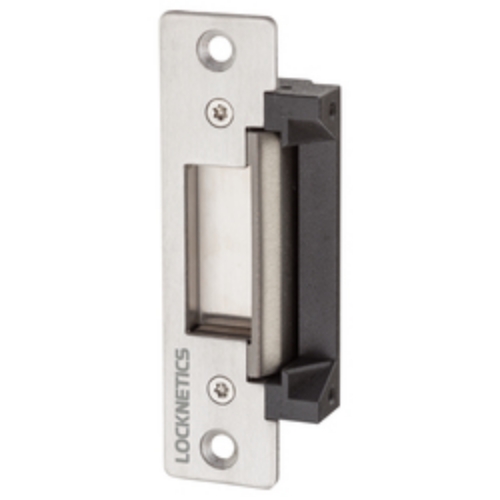

Locknetics CS750-32D Electric Strike, 4-7/8" Faceplate, 3/4" Keeper, Satin Stainless Steel

Locknetics CS750-32D, CS Series Electric Strike, 4-7/8" Faceplate, 3/4" Keeper, 12/24DC, Fail Safe/Fail Secure, Satin Stainless Steel Product name: CS750-32D Product description:E-strike - 3/4" deep Finish: 630/US32D Voltage:12/24 VDC UPC:043156645961

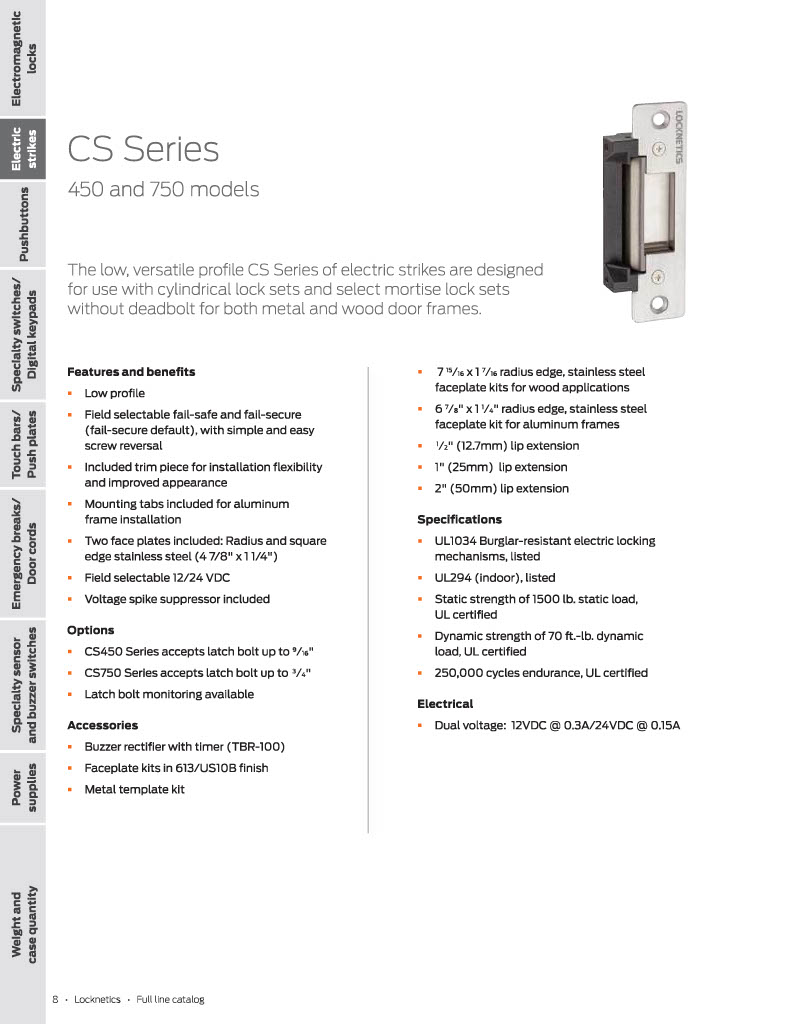

Features and benefits:

Low profileField selectable fail-safe and fail-secure (fail-secure default), with simple and easy screw reversalIncluded trim piece for installation flexibility and improved appearanceMounting tabs included for aluminum frame installationTwo face plates included: Radius and square edge stainless steel (4 7/8" x 1 1/4")Field selectable 12/24 VDCVoltage spike suppressor includedOptions:

CS450 Series accepts latch bolt up to 9⁄16"CS750 Series accepts latch bolt up to 3⁄4"Latch bolt monitoring availableAccessories:

 Buzzer rectifier with timer (TBR-100)Faceplate kits in 613/US10B finishMetal template kit7 15⁄16 x 1 7⁄16 radius edge, stainless steel faceplate kits for wood applications6 7⁄8" x 1 1⁄4" radius edge, stainless steel faceplate kit for aluminum frames1⁄2" (12.7mm) lip extension1" (25mm)  lip extension 2" (50mm) lip extension

Specifications:

UL1034 Burglar-resistant electric locking mechanisms, listedUL294 (indoor), listedStatic strength of 1500 lb. static load, UL certifiedDynamic strength of 70 ft.-lb. dynamic load, UL certified250,000 cycles endurance, UL certifiedElectrical:

Dual voltage:  12VDC @ 0.3A/24VDC @ 0.15AStrike dimensions:

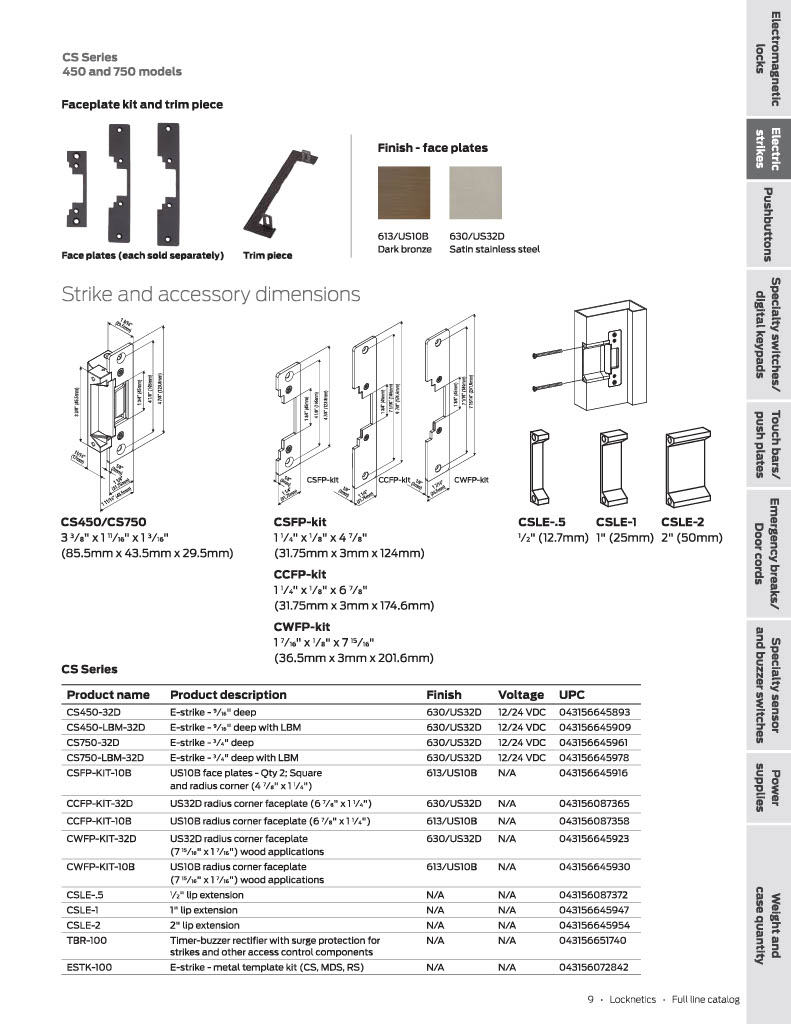

CS450/CS750: 3 3⁄8" x 1 11⁄16" x 1 3⁄16" (85.5mm x 43.5mm x 29.5mm)
