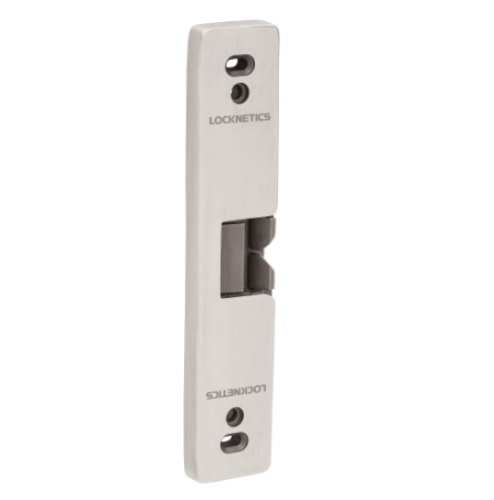

Locknetics RS200-LBM US32D Electric Strike, 9" Surface Rim Strike, 1/2" Throw, Satin Stainless Steel

Locknetics RS200-LBM US32D, RS Series Electric Strike, 9" Surface Rim Strike, 1/2" Throw, 12/24DC, Fail Safe/Fail Secure,*Latch Bolt Monitoring,*Satin Stainless Steel

Product name:RS200--LBM32D Product description:Rim strike - 1 ⁄2" depth with spacers, with Latch bolt monitoring Finish: 630/US32D Voltage:12/24 VDC UPC:043156001484

Features and benefits:

Surface mounted for easy installationSlotted mounting holes for increased adjustment flexibilityMultiple spacers included for easy installationSleek cover case designField selectable fail-safe and fail-secure (fail-secure default), with simple and easy screw position change, non-fire rated modelsField selectable 12/24 VDCBuilt-in voltage spike suppressorOptions:

RS200 Series accepts 1⁄2" throw pullman latch boltRS300 Series accepts 3⁄4" throw pullman latch boltLatch bolt monitoring availableOffered in both 630/US32D and 613/US10B finishesRS300 available in fire rated versionAccessories:

 Buzzer rectifier with timer (TBR-100)Metal template kit

Specifications:

UL1034 Burglar-resistant electric locking mechanisms, listedUL294 (indoor), listedStatic strength of 1500 lb. static load, UL certifiedDynamic strength of 70 ft.-lb. dynamic load, UL certified250,000 cycles endurance, UL certifiedUL10C Fire Rated, 90 min. RS300-F models onlyElectrical:

Dual voltage:  12VDC @54A/24VDC @ 0.27AStrike dimensions:

RS200:9" x 1 3⁄4" x 1⁄2" (229mm x 44.5mm x 13mm)
