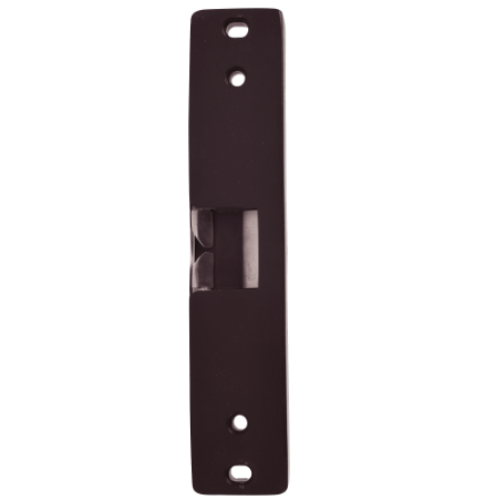

Locknetics RS210-10B Electric Rim Strike, Surface Mounted, Field Selectable (Safe/Secure), 1/2" Depth, Oil Rubbed Bronze Finish

Locknetics**Electric Rim Strike, Surface Mounted, Field Selectable (Safe/Secure), 1/2" Depth, Rim Strike Spacer, 12/24 VDC, Dark Oxidized Satin Bronze Oil Rubbed Finish**

Product name:RS200-10B Product description:Rim strike - 1 ⁄2" depth with spacers Finish: 613/US10b Voltage:12/24 VDC UPC:043156646029

Features and benefits:

Surface mounted for easy installationSlotted mounting holes for increased adjustment flexibilityMultiple spacers included for easy installationSleek cover case designField selectable fail-safe and fail-secure (fail-secure default), with simple and easy screw position change, non-fire rated modelsField selectable 12/24 VDCBuilt-in voltage spike suppressorOptions:

RS200 Series accepts 1⁄2" throw pullman latch boltRS300 Series accepts 3⁄4" throw pullman latch boltLatch bolt monitoring availableOffered in both 630/US32D and 613/US10B finishesRS300 available in fire rated versionAccessories:

 Buzzer rectifier with timer (TBR-100)Metal template kit

Specifications:

UL1034 Burglar-resistant electric locking mechanisms, listedUL294 (indoor), listedStatic strength of 1500 lb. static load, UL certifiedDynamic strength of 70 ft.-lb. dynamic load, UL certified250,000 cycles endurance, UL certifiedUL10C Fire Rated, 90 min. RS300-F models onlyElectrical:

Dual voltage:  12VDC @54A/24VDC @ 0.27AStrike dimensions:

RS200:9" x 1 3⁄4" x 1⁄2" (229mm x 44.5mm x 13mm)
