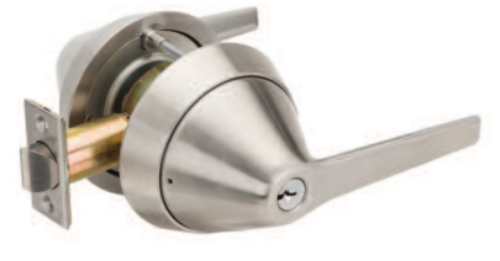

Marks 195SSDW 32D LifeSaver Institution Lock - Satin Stainless Steel

Marks 195SSDW 32D LifeSaver Institution Lock - Satin Stainless Steel

Function:ANSI # F87 Entry Lock

Both levers always locked. Deadlocking latch by key both sides.

ANSI-A156.2 Grade 1, UL listed 3 Hr. Fire Rating

Backset:2-3/4" Standard, 2-3/8", 3-3/4", 5" Available

Latch:#1834, stainless steel nose

Levers:Solid cast stainless steel. Levers Rotate up & down freely in locked or unlocked position.

Levers recessed into solid stainless steel roses eliminating any open gap

Roses:Thru-bolted, spring loaded, #10 thru-bolts

Strike:#1135, 4-7/8" ASA curved lip strike

Door thickness:1-3/4" +/- 1/16"

Cylinder:MARKS “C" keyway, 6 pin w/ 2 keys (Standard)

F8- Sargent conventional cylinderF9- Corbin conventional cylinder

Model: Marks, Marks USA 195SSDW 32D, 195SSDW/32D, 195SSDW32D,195SSDW 32D F8, 195SSDW/32DF8, 195SSDW32DF,195SSDW 32D F9, 195SSDW/32DF9, 195SSDW32DF9,
