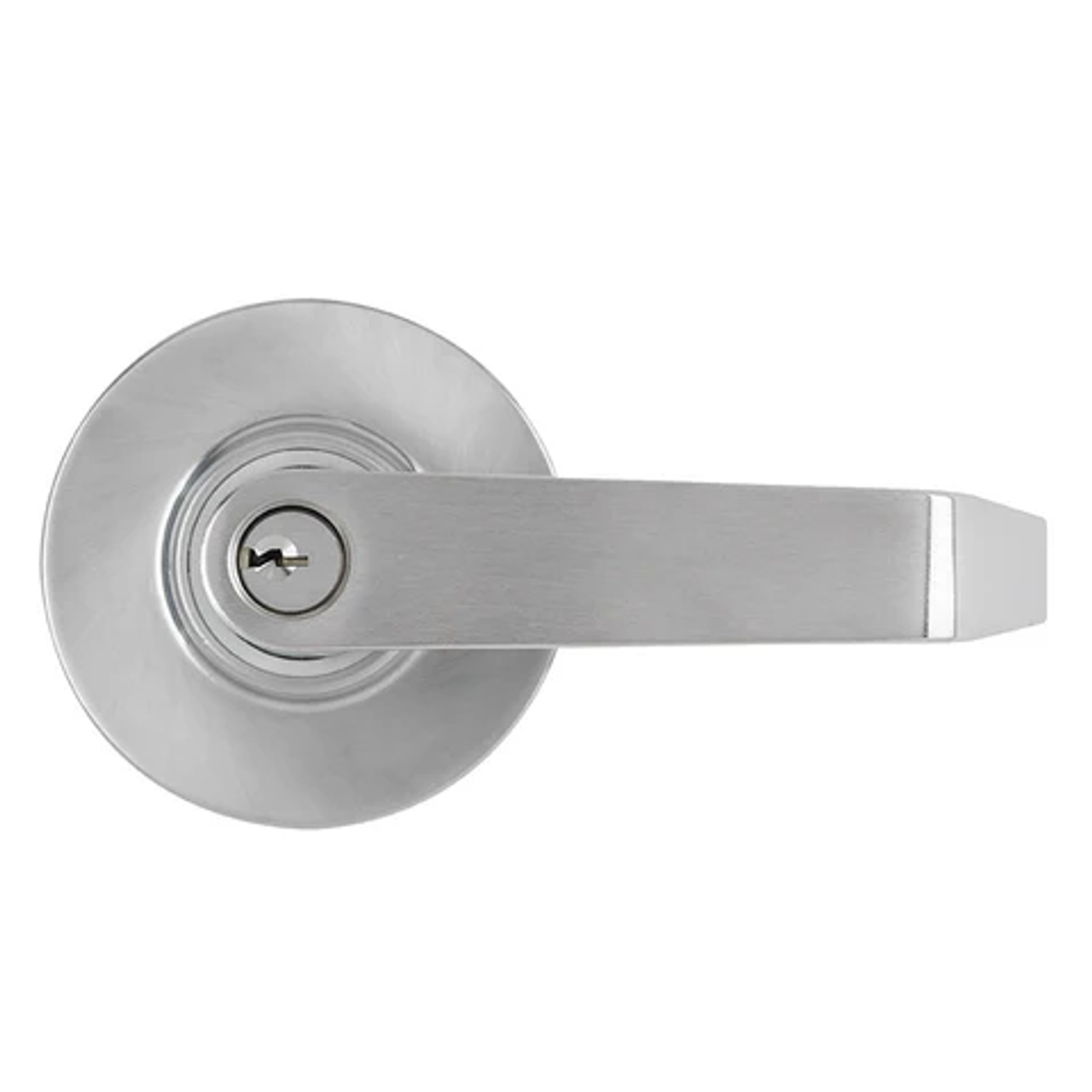

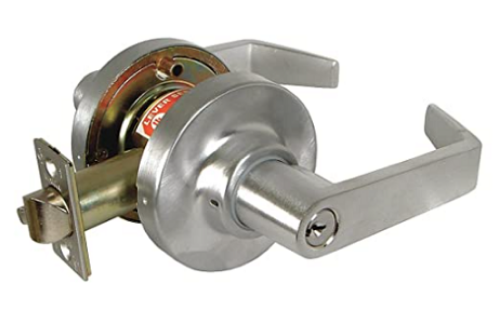

Marks USA 195AB Survivor Entry Lock

Marks USA 195AB Survivor Entry Lock

Function:Entrance -ANSI F109 - Outside locked by pushing turn-button inside. Key outside opens lock. Rotating inside lever releases button and outside lever. By pushing and turning inside button, outside lever remains locked. Deadlocking latch.

Backset:2-3/4 Inch

Bore Hole Diameter:2-1/8"

Rose/Escutcheon Design:3-7/16" Diameter Cylinder Type: Conventional Cylinder

Door Thickness:1 5/8" - 1 7/8"

Grade:ANSI/BHMA Grade 1

Keyblank Grouping:SCHL-C-6-1

Keying Charges:CCAM

Keyway:Marks C

Num Pins:6

Strike:ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corne

Latch Bore Diameter:1"

Model: Marks, Marks USA 195AB26D, 195AB/26D, 195AB10B,195AB-10B,
