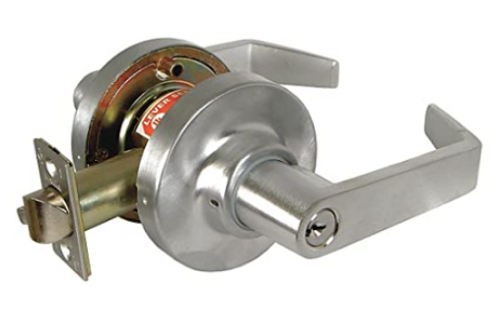

Marks USA 195DB Survivor Classroom Lock

Marks USA 195DB Survivor Classroom Lock

Function:Classroom -ANSI F83- Deadlocking latch by lever either side, except when outside locked by key inside. Key outside locks or unlocks outside. Inside always open

Backset:2-3/4 Inch

Bore Hole Diameter:2-1/8"

Rose/Escutcheon Design:3-7/16" Diameter Cylinder Type: Conventional Cylinder

Door Thickness:1 5/8" - 1 7/8"

Grade:ANSI/BHMA Grade 1

Keyblank Grouping:SCHL-C-6-1

Keying Charges:CCAM

Keyway:Marks C

Num Pins:6

Strike:ANSI, 1-1/4" x 4-7/8", 1-1/4" Lip, Square Corne

Latch Bore Diameter:1"

Model: Marks, Marks USA 195DB26D, 195DB/26D, 195DB10B,195DB-10B,
