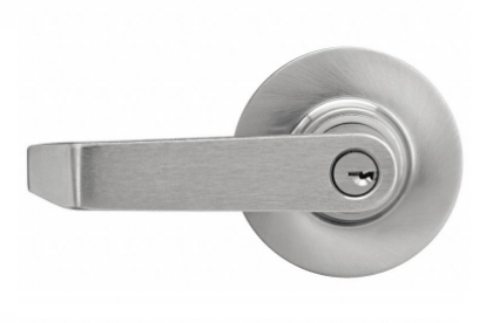

Marks USA M195F Lever/Rose Storeroom Trim

The Marks USA M195F is a lever and rose exit device trim for M9900 Series exit devices, with a key-in-lever cylinder type and storeroom function. The outside lever is inoperable without a key, and the inside push bar always provides free egress. It's field reversible for right or left hand door installations without special tools and mounts on wood or metal doors with a minimum stile of 3-1/2" and a standard door thickness of 1-3/4". UL305 listed. Available in satin chrome (26D) and black (19).

What storeroom function means on an exit device trim

Exit device trims control how the outside of a panic door operates. In storeroom function, the outside lever is always locked. Turning the lever from outside does nothing unless a key is inserted and turned in the lever cylinder first. Once the key is used, the lever retracts the latchbolt and allows entry. Removing the key returns the lever to the locked state automatically. There's no thumbturn, no push button, and no inside control that can change the outside lever state. The inside push bar functions independently and always provides free egress, which satisfies life safety requirements on all panic-equipped doors regardless of the trim function.

This is the correct specification for equipment rooms, server closets, secured storage areas, and other commercial spaces connected to an exit-device-equipped door where the outside entry must always require a key. The lever and rose trim format gives the outside of the door a finished architectural appearance that a pull-only trim or thumbturn trim doesn't provide, while still maintaining the full key control of storeroom function.

M9900 Series compatibility and cylinder type

The M195F is designed specifically for Marks USA M9900 Series exit devices. Exit device trims are device-specific. The mounting, spindle geometry, and latch engagement on the M195F match the M9900 Series chassis and cannot be substituted for trim from a different exit device manufacturer or series without modification. Confirm the installed exit device is the M9900 Series before ordering.

The cylinder type on the M195F is Key-Knob and Key-in-Lever format. This is the standard cylinder format for lever-style exit device trims where the keying cylinder is integrated into the lever housing rather than mounted separately in the trim rose. The cylinder provides the keyed entry function, and the lever itself is the operating mechanism. For facilities integrating the M195F into a master key system, key the cylinder to match the existing system at time of ordering.

Handing, installation requirements, and finish options

The M195F is field reversible, meaning the same trim unit accommodates both right-hand and left-hand doors without factory re-ordering. Field reversibility is determined by the hinge position when viewed from the outside of the door: right-hand doors are hinged on the right, left-hand on the left. The minimum stile width required is 3-1/2", which fits most standard commercial hollow metal door stiles and wider wood door stiles. Standard door thickness is 1-3/4". The trim is compatible with both wood and metal door construction.

Two finishes are available: 26D satin chrome as the standard option and 19 black at an additional cost. Satin chrome coordinates with the majority of commercial satin stainless and satin chrome hardware in institutional and office environments. Black suits dark frame and door configurations in retail, hospitality, and contemporary commercial interiors. The M195F is UL305 listed, confirming it meets UL's standard for burglary resistance on exit device trim applications.

For the full range of Marks USA exit device trim options including other functions and lever styles, browse the Marks USA exit device trims catalog. The broader exit device trims and mullion section covers trim options from all manufacturers. For the complete range of coordinating panic hardware and exit devices, the exit hardware catalog is available on this site.

Confirm your M9900 Series exit device model, door handing, stile width, and door thickness before ordering. Select your finish at checkout.
