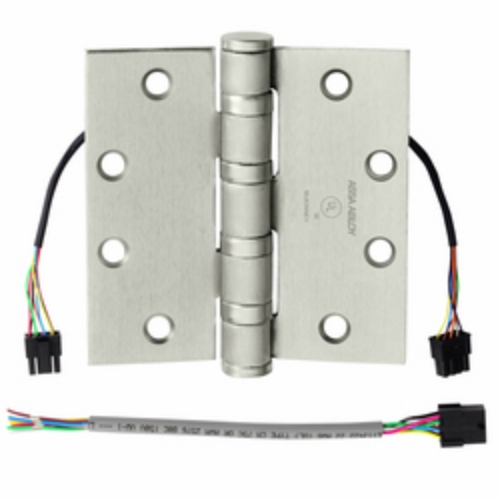

Mckinney T4A3386 QC4/8/12 ElectroLynx Connector, 4-1/2x4-1/2 Five Knuckle Heavy Weight Full Mortise Series

Mckinney T4A3386 QC4/8/12 ElectroLynx Connector, 4-1/2x4-1/2 Five Knuckle Heavy Weight Full Mortise Series

ElectroLynx Hinge (QC option):

Available on standard and heavy weight full mortise bearing hinges as well as swing clear and wide throw hingesElectric hinges allow a constant flow of current from the power source through the hinge to electrified door hardware. No external wires can be seen, eliminating tampering and improving the aesthetics of the door openingMaterials: brass, stainless steel, and steelFor 4 amp continuous @ 24 volts AC or DC per circuit, 28 gauge multi-strand wires are used.An 8 position connector is used for QC4 and QC8 wire hinges. An 8 position and a 4 position connector is used for QC12 wire hinges.Hand of hinge must be specified on two knuckle hingesCan be used in conjunction with MM option on most full mortise hinges. QC12 x MM not recommended for wood or solid core doorsFull Mortise QC hinges are available in most BHMA and McKinney powder coat finishesWires are coordinated to work wth other ASSA ABLOY Group brands electro-mechanical hardwareANSI:S51111

• Heavy weight hinges should be used on all extra heavy doors or those exposed to high frequency use

T4A3386- Stainless steel base or available in brass base material polished

• For Beveled Edge, where doors are beveled on hinge side, specify T4A4386 or T4A4786

Inches: 4 1/2" x 4 1/2"

Gauge: .180

mm:114.3 x 114.3

No. of Holes:8

Fasternes: mochine- 1/2 x 12-24  Wood1 1/4 x 12

Related Categories

• Electrified Hinges
