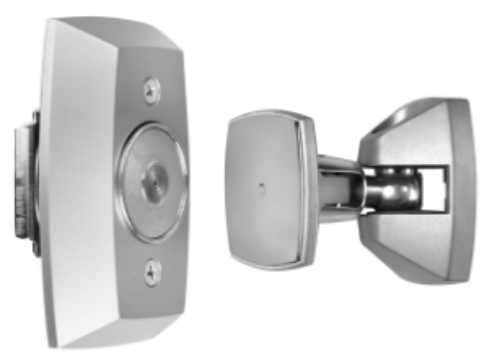

Norton Rixson 994M 689 Electromagnetic Door Holder/Release w/ Adjustable Armature, Wall Mounted

Norton Rixson *994M-689 Electromagnetic Door Holder/Release w/ Adjustable Armature, Wall Mounted, Sprayed Aluminum*

Application:

Wall MountAdjustable ArmatureConcealed WiringANSI/C00011 ProductDescription & Features:

Total Projection: 3-3/4" (95mm)Adjustable armature rotation up and down, back and forth for better alignment.Cannot be use with 900 base or spacers.Can be used without adjustment piece making it a model 997Mounting Requirements: 2" x 4" x 2-1/2" (51 x 102 x 64mm) outlet boxWall must be properly reinforced and outlet box adequately fastenedTechnical Information:

Voltage and Current:

120VAC, 60Hz., .020 amp

24VAC/DC, 60Hz., .020 amp

12VDC, .040 amp
