Hager 3553 Grade 2 Entry Lock

Hager 3553 Grade 2 Entry Lock -ANSI F109

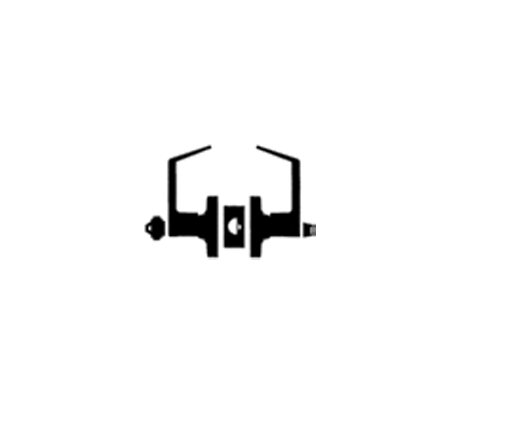

Deadlocking latchbolt operated by lever from either side except when outside lever is locked by the push or turn button inside. Key outside or operating inside lever releases push or turn button unlocking outside lever except when push or turn button has been rotated to keep outside lever locked. Inside push or turn button must be manually operated to unlock outside lever. Inside lever always operates latchbolt

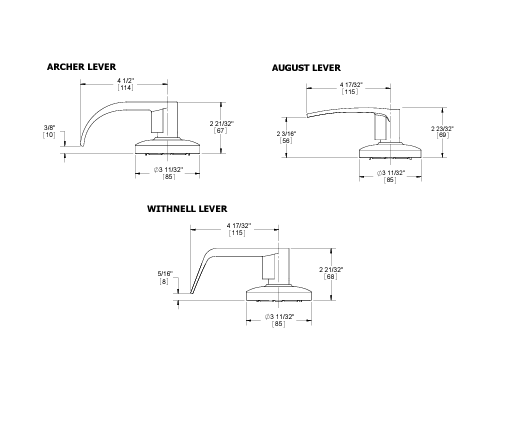

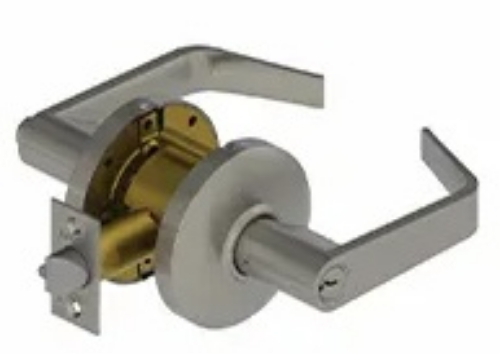

Lever Style: Archer ARC, August AUG, Withnell WTN

Standard Door Prep:2-1/8" (54 mm) Diameter (Cross Bore)

Latch Hole:1" (25.4 mm) Diameter (Edge Bore)

Exposed Trim:Wrought Brass, Bronze and Stainless Steel, zinc based

Lock Chassis:Heavy gauge steel, zinc dichromated for corrosion resistance

Rose Diameter:3-3/8" (86 mm) (Levers)

Keys:Two brass keys per lock

Cylinders:Brass - Keyed Different - C Keyway Drilled 6-pin, Keyed 5-pin - Standard

Door Thickness:1-3/8" - 2" (35 mm - 51 mm)

Backset:2-3/4" (70 mm) - Standard 2-3/8" (60 mm) - Optional

Latchbolt:1/2" (13 mm) Throw - Stainless Steel 2-1/4" (57 mm) x 1-1/8" (29 mm) Faceplate for 2-3/4" (70 mm) backset 2-1/4" (57 mm) x 1" (25.4 mm) Faceplate for 2-3/8" (60 mm) backset

Deadlocking latchbolt prevents manipulation when door is closed

Strike:3935 ASA 1-1/4" (32 mm) x 4-7/8" (124 mm) strike - Standard

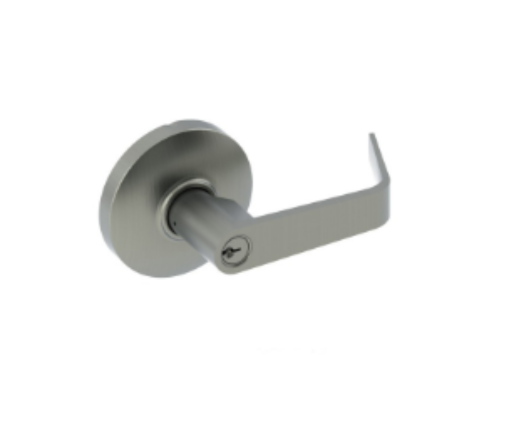

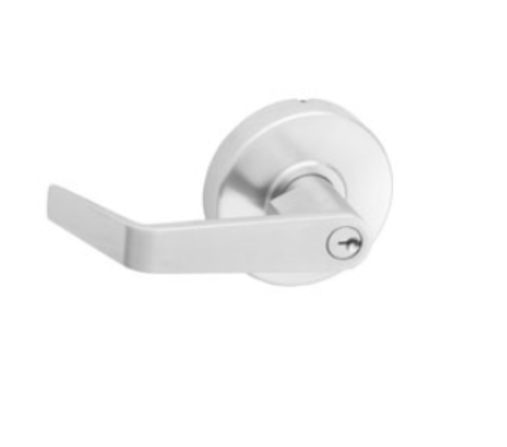

Model:3553US26D, 3553US26DARC, 3553US26DAUG, 3553US26DWTN, 3553US10B, 3553US10BARC, 3553US10BAUG, 3553US10BWTN

Certifications:

BHMA Certified ANSI A156.2 Grade 2

ADA Compliant ANSI A117.1 Accessibility Code (Levers Only)

ANSI A250.13 Severe Windstorm Resistant Component

UL/cUL Listed for all functions up to 3 hours A label single doors

UL10C/UBC 7-2 (1997) Positive Pressure Rated

UL10B Neutral Pressure Rated
